ASSEMBLY
6
UPPER CHUTE

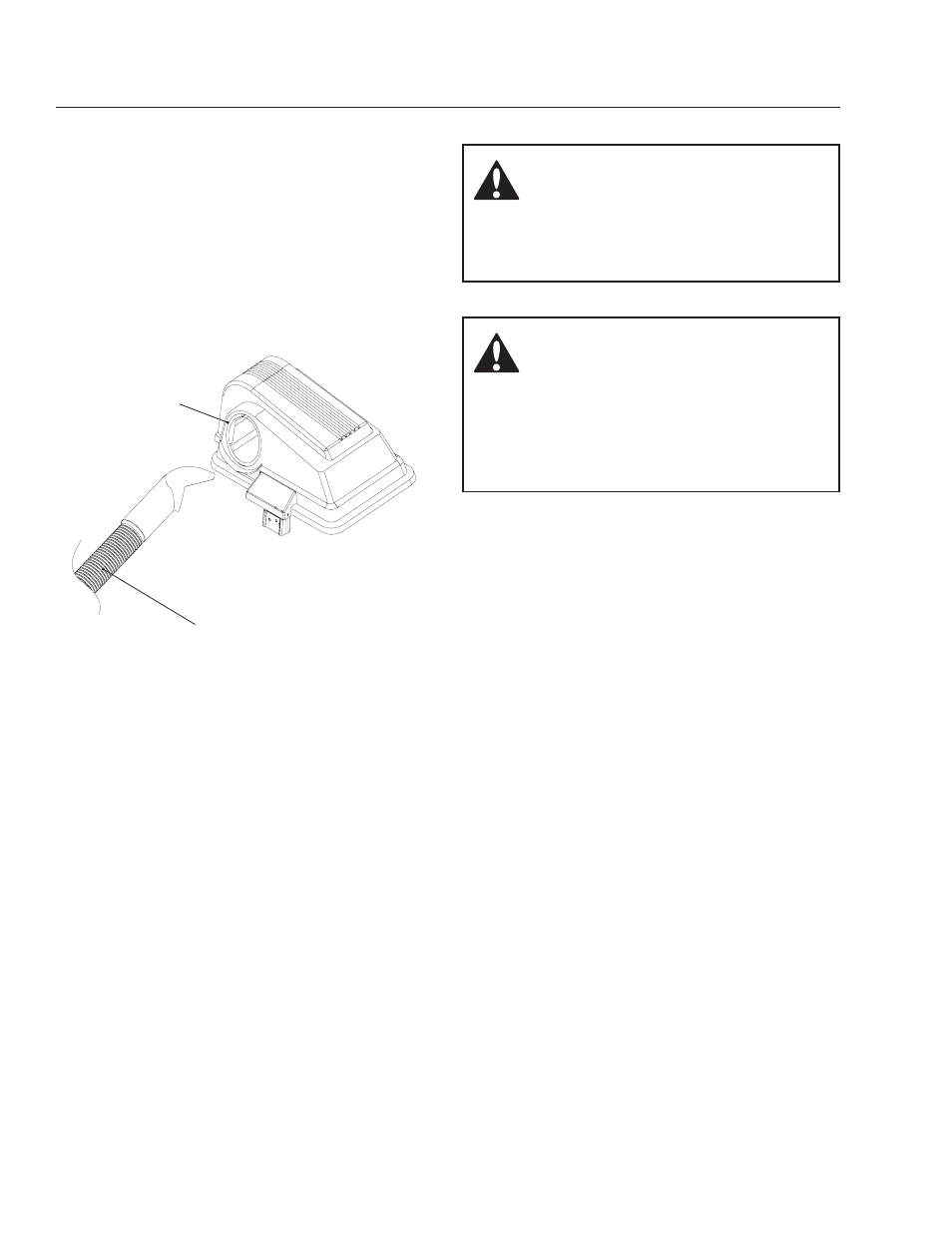

1. Attached flex tube to blower and secure with the
hose clamp.
2. Slide opposite flex hose end into upper chute.
3. Push upper chute through the gasketed opening in
the cover assembly.
4. Rotate flex tube and upper chute so that the chute
opening is downward toward the container bags.
Cover Gasket
Rotate upper chute to point
downward toward bags
CAUTION
Do not leave grass in bagger
containers. Empty containers after each
use and before storing. Failure to do so
may result in spontaneous combustion
which could develop into a fire.
CAUTION
Grass bagger components are subject
to wear, damage and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer’s recommended parts,
when necessary.
