ASSEMBLY
NOTE: When right hand (RH) and left hand
(LH) are mentioned in this manual, it means
when you are seated on the mower in the op-
erator’s position.
UNPACKING INSTRUCTIONS
• Remove all parts and packing materials from both
cartons.
• Check carton contents against list. Be sure all
parts are there.
CARTON 1 CONTENTS
1 - Upper Chute 1 - Owner’s Manual
1 - Flex Hose 1 - Hanger Bracket
1 - Bagger Support 1 - Weight Kit
2 - High Lift Blades 1 - Hose Clamp
2 - Support Straps 1 - Cast Weight
1 - Weight Box 1 - Baffle
1 - Discharge Adapter 1 - Decal
1 - Discharge Mount Bracket
CARTON 2 CONTENTS
1 - Cover Assembly 2 - Soft Bag Containers

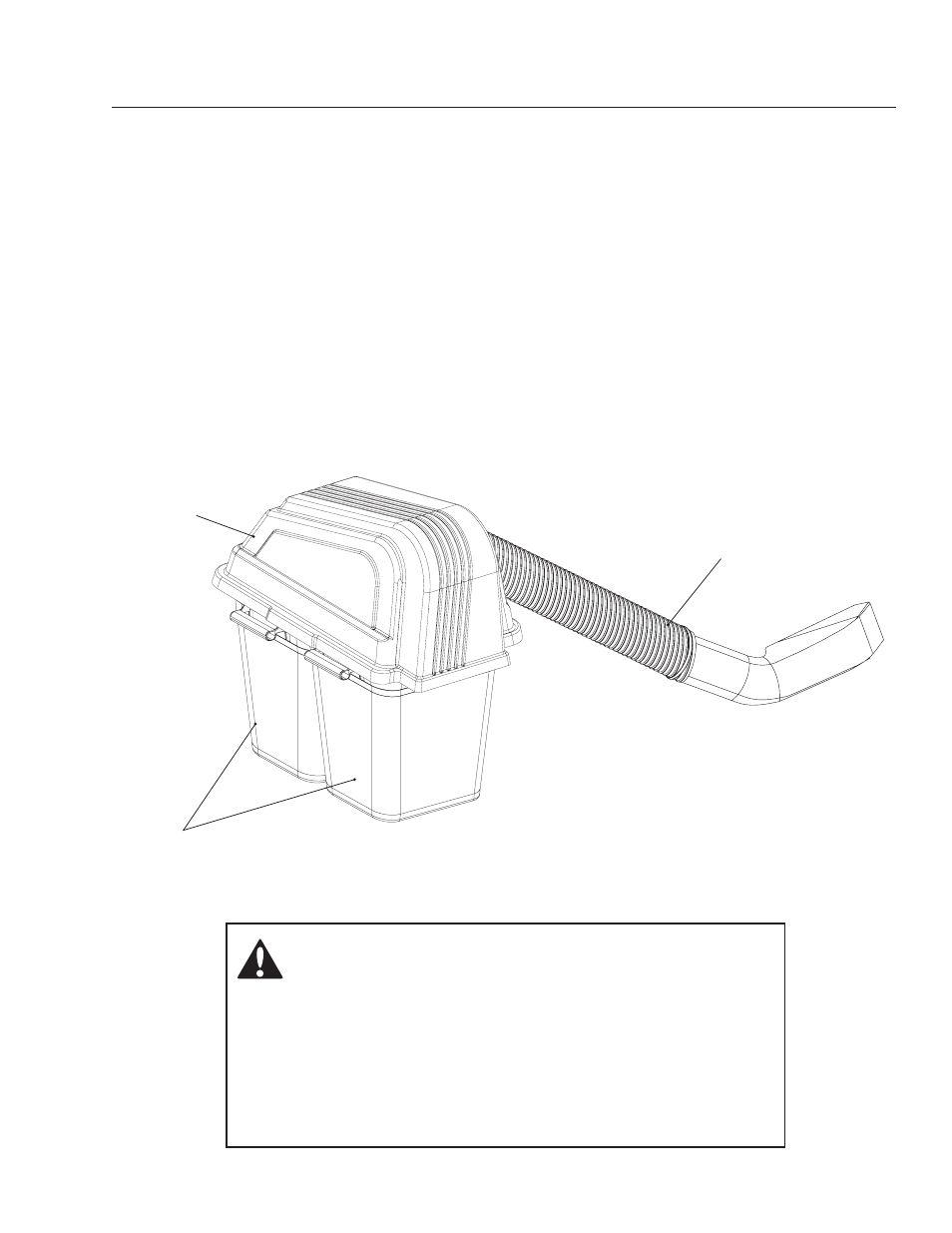

PARTS IDENTIFICATION
Cover
Assembly
Grass
Catcher
Containers
Flex Hose
WARNING
BEFORE ASSEMBLING GRASS BAGGER TO MOWER:
• Set parking brake.
• Place motion control levers in “NEUTRAL” position.
• Turn ignition key “OFF” and remove key.
• Make sure the blades and all moving parts have completely
stopped.
• Disconnect spark plug and place wire where it cannot come
in contact with plug.
