Operating Manual

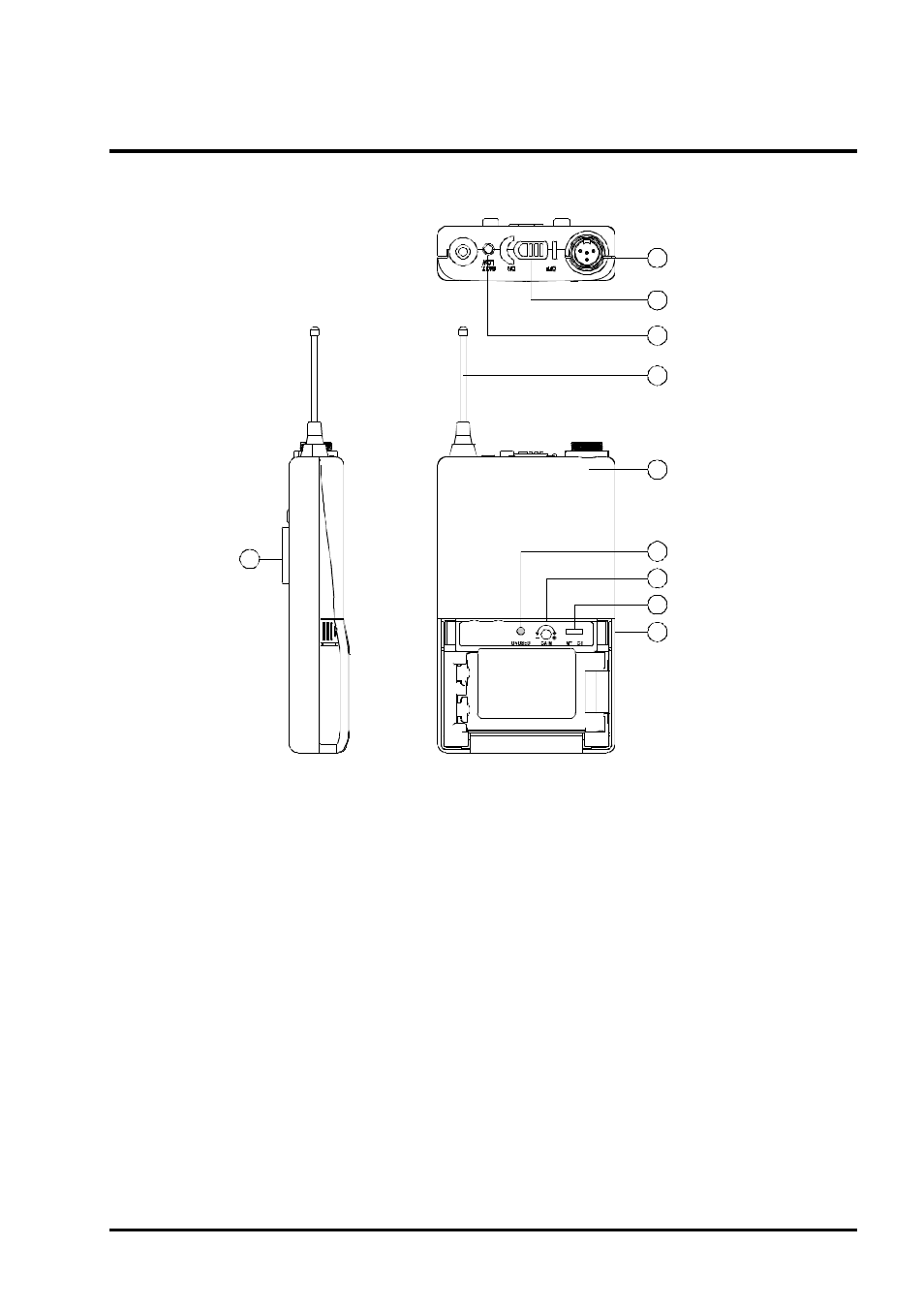

1. PARTS NAMES AND FUNCTIONS
1
2
3
5
6
9
10
8
7
4
( ) Fig. 1
(XLRJACK)
1. AF Input Jack: Connects to a lavaliere or headset microphone. (See 5 ways of
connection on AF Input Connections)
2. Power Switch: Switch to ON position for operation. Switch to OFF position when not
in use.
3. Battery Status Indicator: Indicates the power on / off and battery status.
(a) When power switch is turned on: The LED indicator flashes briefly, indicating
normal battery status.
(b) When RED light illuminates at either power on or during usage: The battery level
is low, therefore, a new battery replacement is necessary.
4. Transmitting Antenna: 1/ 4 transmitting antenna.
5. Transmitter Housing: Packages the PCB and battery.
6. Unused Status Indicator: When LED grows; it denotes the frequency does not match
with receiver.
7. Gain Control: Adjusts the input gain.
8. GT/MT Level Selector: Switch to the GT position for electric guitar usage ONLY. The
Gain Control does not function in the "GT" position. Switch to "MT" if using a
condenser microphone or a wired microphone. Gain Control for input sensitivity
adjustment in the "MT" position.
λ
- 1 8 -
BODYPACK TRANSMITTER
