! S-VIDEO OUT
Connect to a TV with an S-Video Input.
@ AUDIO OUT (L, R)
Connect to a TV or other equipment with audio
inputs.
# COMPONENT VIDEO OUT (Y Pb Pr)
Connect to a TV with Component Video (Y Pb
Pr) inputs.
$ Scart socket 2
Connection of an additional device (satellite
receiver, set-top box, video recorder,
camcorder, etc.)
% ANT IN
Connect to your antenna or cable TV outlet.
^ AC Power Cord
Plug into a power outlet.
& COAXIAL/OPTICAL (Digital Audio Out)
Connect to an amplifier with a coaxial (or
optical) digital audio input.
* Scart socket 1
Connection of a TV set. Composite-output and
RGB-output
( ANT OUT
Connect to a TV with an RF input.
) Cooling Fan
14

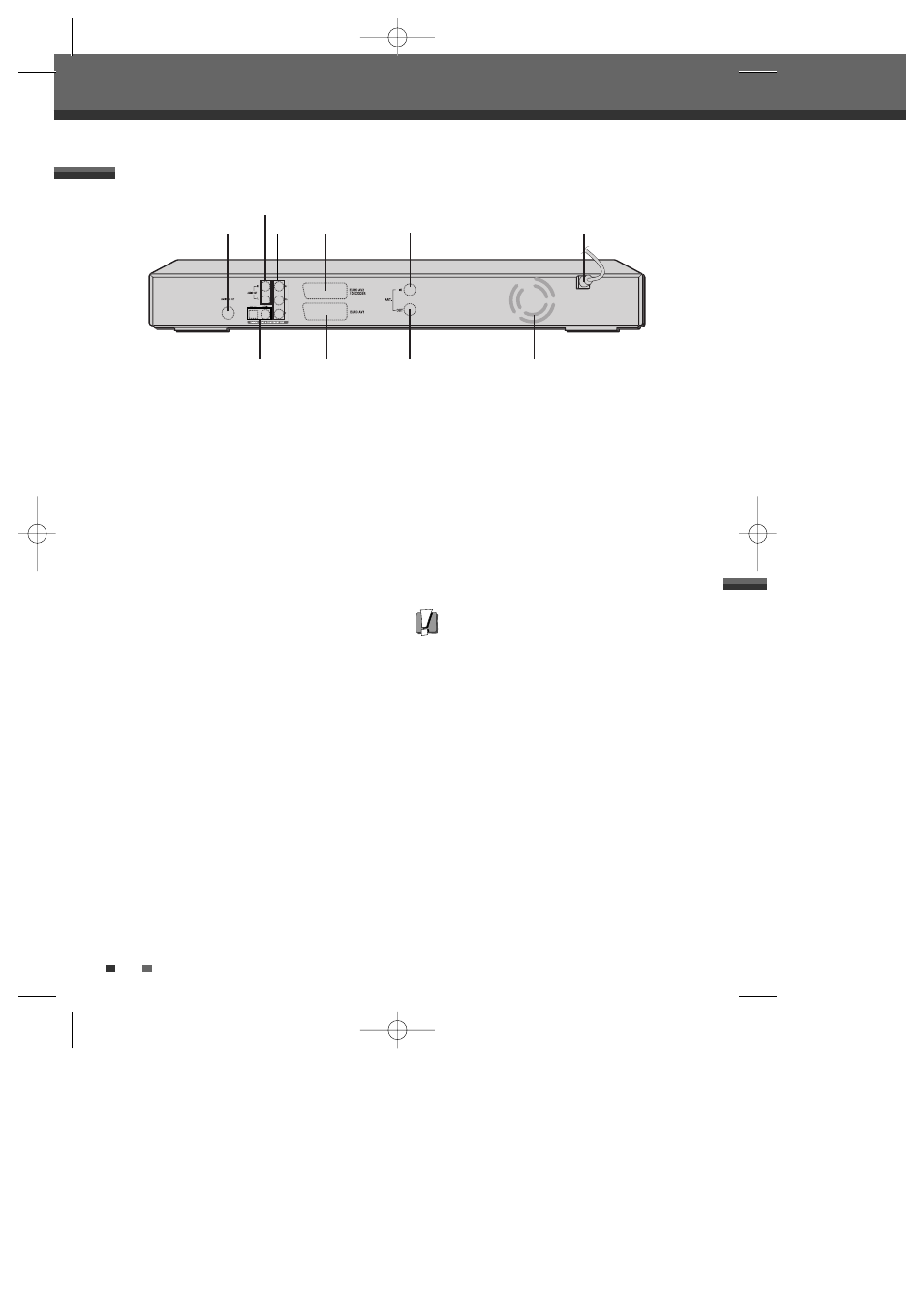

Rear panel
Caution
• Do not touch the inner pins of the jacks on the
rear panel. Electrostatic discharge may cause
permanent damage to the HDD/DVD Recorder.
! $ % ^
& * ( )
Identification of Controls
#
@
