11
English
NOTICE: DO NOT attempt to increase pump pressure. A higher
pressure setting than the factory set pressure may damage pump.
3. Reduce the speed of the gasoline engine (RPM). Slow the
engine down and the water pressure will go down with it.

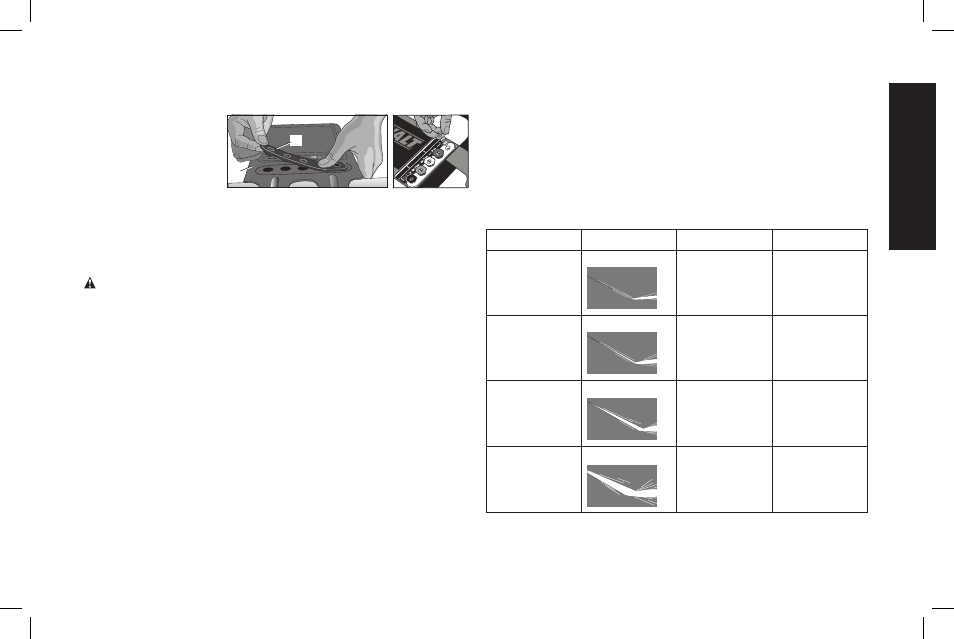

Spray Wand Nozzles (Fig. 1)
The nozzles for the spray wand are stored in the nozzle holder (B) on
the panel assembly (A). Colors on the panel identify nozzle location
and spray pattern. Refer to the following chart to choose the correct
nozzle for the job to be performed.
nozzle color spray Pattern uses surfaces*
red
0˚ powerful
pinpoint for
very intense
cleaning
metal or
concrete;
DO NOT use
on wood
Yellow
15˚ intense
cleaning of
small areas
metal, concrete
or wood
Green
25 ˚ intense
cleaning of
larger areas
metal, concrete
or wood
White
40 ˚ covers wide
areas of
cleaning
metal, concrete,
wood or vinyl
4. Place the nozzle holder (B) onto the panel assembly (A) and push
each nozzle holder into place.
5. Remove the five
B
A
colored quick-
connect nozzles from
the plastic bag and
insert them into
correct grommet on
the nozzle holder. Nozzles are color coded to match colored
nozzles on panel assembly.
note: The high-pressure pump was filled with oil at the factory.
Always check oil level before using (refer to Maintenance for more
information).
WARNING: Risk of bursting. Use a tire pressure gauge to check the
tires pressure before each use and while inflating tires; see the tire side-
wall for the correct tire pressure.
note: Air tanks, compressors and similar equipment used to inflate
tires can fill small tires similar to these very rapidly. Adjust pressure
regulator on air supply to no more than the rating of the tire pressure.
Add air in small increments and frequently use the tire gauge to
prevent over inflation.
oPeration
Pressure Adjustments
The pressure setting is preset at the factory to achieve op ti mum
pres sure and cleaning. To lower the pres sure, follow these instruc-
tions.
1. Back away from the sur face to be cleaned. The further away you
are, the less the pressure will be on the surface to be cleaned.
2. Change to the 40˚ nozzle (white). This nozzle delivers a less
powerful stream of water and a wider spray pattern. Refer to
spray Wand nozzles.
