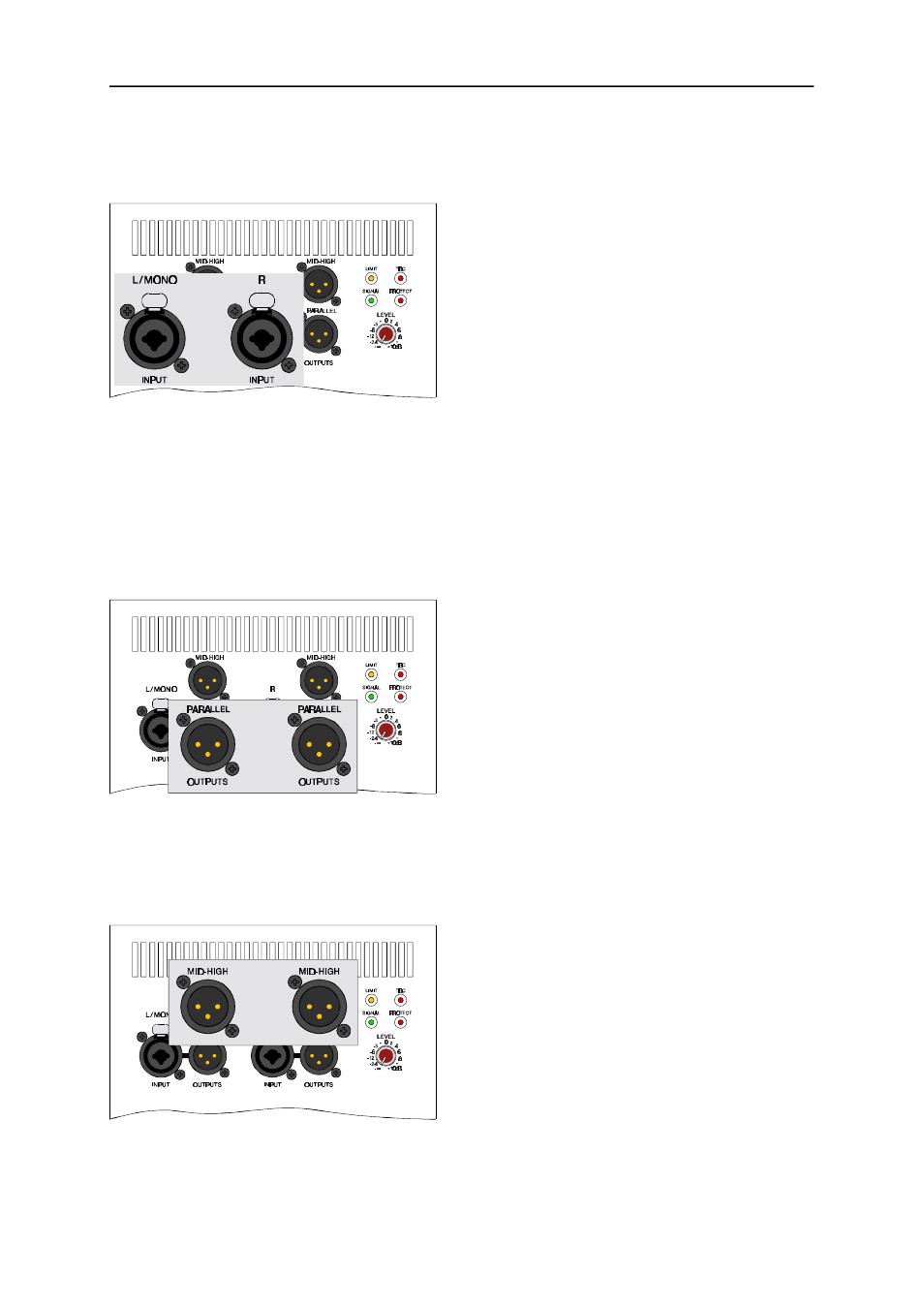

Input L/Mono, Input R
Electronically balanced inputs for the connection of
high-level signal sources such as mixers, signal
processors, etc. Establishing the connection is possi-
ble via phone or XLR-type jacks. Balanced connection
is recommended to prevent noise or HF-interference.
Caution: Before connecting or disconnecting any
plugs, make sure to set the level control to its
counterclockwise stop, which prevents the sy-
stem, the audience and yourself from being stres-
sed by nasty contact noise.
The input section of the SUB800A also allows mono
sub operation. The stereo signal is fed to the L and R
inputs and the low-frequency range signals of both
channels are summed prior to being processed in the
power amplifier section. All other applications use only
the (L)/Mono input. Please also refer to the chapter
“SETUP EXAMPLES”.
Parallel Outputs L/R
Parallel connected to the main inputs these sockets
are used for “carrying through” the input signals.
Mid-High Outputs L/R
The input signal is split via the integrated electronic
crossover (PowerMax, 100Hz). Low-frequency si-
gnals are routed to the internal power amplifier of the
SUB800A while high-frequency signals are present at
the Mid-High outputs for further distribution to external
power amps or active mid-high range cabinets.
