Power Supply Connector
Connect the included PS 0913 power supply at this point.
Power Supply Cord Strain Relief
To prevent any untimely power supply interruptions, it is recommend that the
power supply cable be looped over the hook of the power supply cord strain relief.
XLR Output Connector
The XLR output of the Mini-Pre is balanced. The XLR output is ideal for running
from the Mini-Pre directly into the input of a XLR input of a mixing console. Note:
The XLR and 1/4” output connectors can be used simultaneously.
XLR Pin configuration: Pin 1 = Ground, Pin2 = Positive and Pin3 = Negative
1/4” Balanced TRS Output Connector
The 1/4” output connector of the Mini-Pre is impedance-balanced TRS. The 1/4”
output is ideal for running from the Mini-Pre directly into 1/4” inputs of mixing con-
soles and\or power amplifiers. Note: The XLR and 1/4” output connectors can be
used simultaneously.
XLR Input Connector
The XLR Input connector of the Mini-Pre is balanced. The XLR input is ideal for
microphone connections.
XLR Pin configuration: Pin 1 = Ground, Pin2 = Positive and Pin3 = Negative

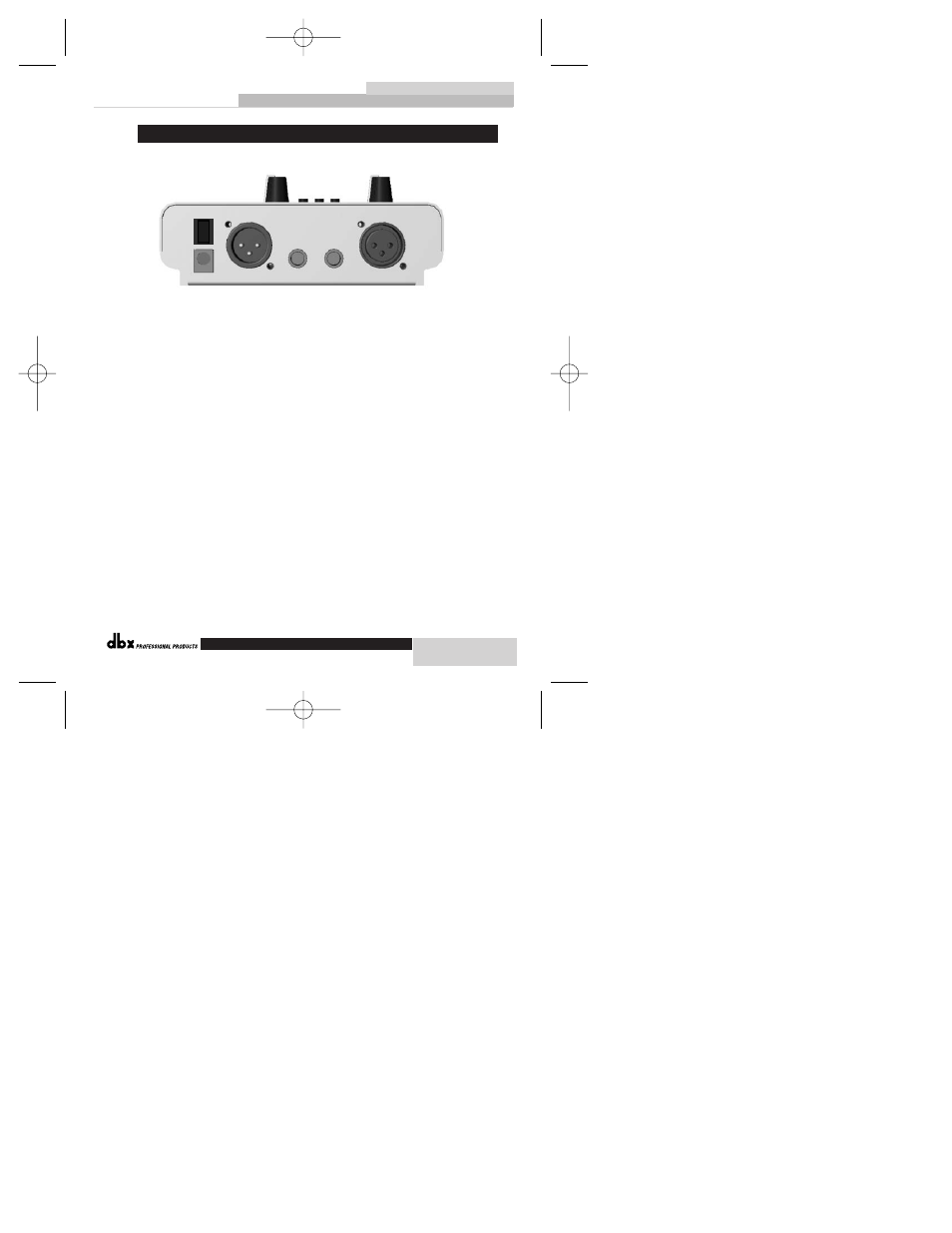

Rear Panel Descriptions (from left to right)
7
Connections\Operation
