4-3. Do-it-yourself maintenance
4
Mainten
ance an
d ca
re
■

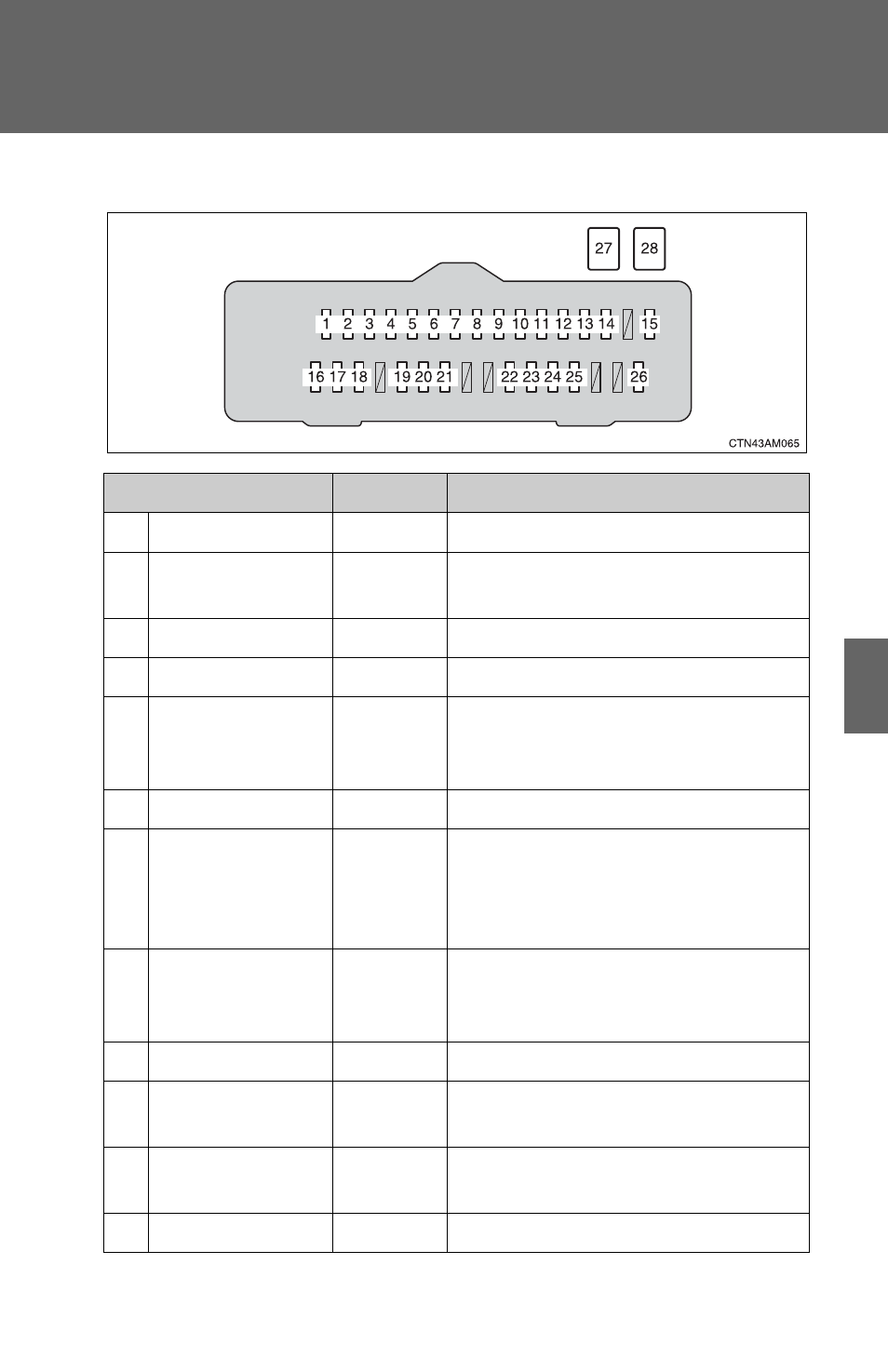

Under the driver’s side instrument panel
Fuse Ampere Circuit
1 MIR HTR 10 A Outside rear view mirror defoggers
2 RAD2 7.5 A
Audio system, navigation system,
rear seat entertainment system
3 PWR OUTLET 15 A Power outlets
4 CIG 15 A Cigarette lighter
5 ECU ACC 7.5 A
Shift lock control system, air condi-
tioning system, power rear view
mirror control
6 GAUGE2 7.5 A Meter and gauge
7 IGN 7.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, multi-
plex communication system
8 IG2 7.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
9 RR WIP 15 A Rear window wiper
10 WIP 30 A
Windshield wiper and rear window
wiper
11 GAUGE1 10 A
Back-up lights, turn signal lights,
emergency flashers
12 S-HTR 15 A Seat heaters
