Chapter 2
16
Remote Control

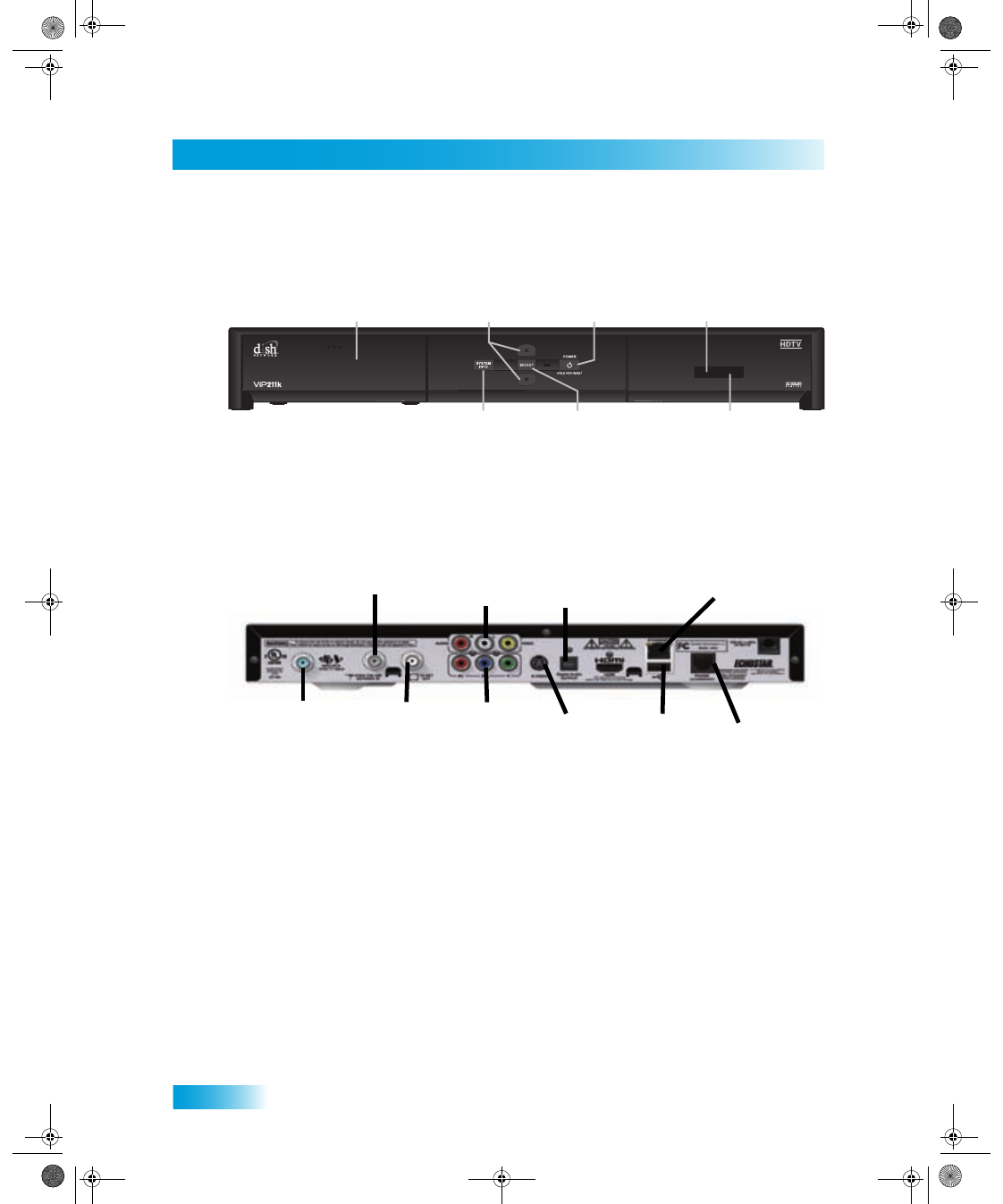

Satellite Receiver Front Panel
Satellite Receiver Back Panel
Smart Card Door
Slot for a future
smart card
Infrared Blaster
Sends IR Signals
to other components
Arrows
Change channels
up/down, and move
around in on-screen
menus and guides
Power
Turns receiver
power on/off,
press and hold
to reset receiver
Infrared Sensor
Receives IR Signals
from your
remote control
Select
Selects
menu items
System Info
Displays the
System Information
Screen
Or
Over-the-Air
Antenna In
Input Connection to
your over-the-air
antenna
Audio/Video
Output
High-quality, standard-
definition connection to your
TV audio and video input
Digital Audio
Output
Connection to
a high-quality
digital sound
decoding system
YPbPr/
Component
Output
Optional connection to
your high-definition
TV video input
YPbPr/
Component
Output
Optional connection to
your high-definition
TV video input
Satellite In
Connection to
your satellite
dish
Satellite In
Connection to
your satellite
dish
TV Set Out
Audio and video
connection to your
standard-definition
TV video input
TV Set Out
Audio and video
connection to your
standard-definition
TV video input
S-Video
High-quality,
standard-definition
connection to your
TV video input
S-Video
High-quality,
standard-definition
connection to your
TV video input
HDMI
Output
Provides digital
audio and video
to an HDTV
Ethernet
Port
For future
use
Over-the-Air
Antenna In
Input Connection to
your over-the-air
antenna
Audio/Video
Output
High-quality, standard-
definition connection to your
TV audio and video input
Digital Audio
Output
Connection to
a high-quality
digital sound
decoding system
HDMI
Output
Provides digital
audio and video
to an HDTV
Ethernet
Port
For future
use
USB
Port
For future
use
Phone
Jack
Connection
to your
telephone line
USB
Port
For future
use
Phone
Jack
Connection
to your
telephone line
