Lenco IPT-223 User Manual

Page 2

2 3

MAIN UNIT
1. PREV/TUNE- BUTTON
2. STOP BUTTON
3. iPod/iPhone DOCKING
4. NEXT/TUNE+ BUTTON
5. PLAY/PAUSE BUTTON
6. VOLUME CONTROLLER
7. REMOTE SENSOR
8. MEM BUTTON
9. CH+ BUTTON
10. CH- BUTTON
11. TONE BUTTON
12. LCD DISPLAY
13. STANDBY BUTTON
14. FUNCTION BUTTON

15. EJECT BUTTON
16. SLEEP BUTTON
17. SD/MMC CARD SLOT
18. SCART OUTPUT SOCKET
19. FM PIGTAIL ANTENNA
20. RIGHT AUX IN JACK
21. LEFT AUX IN JACK
22. VIDEO OUT JACK
23. POWER ON/OFF BUTTON
24. AC SOCKET
25. STAND FEET
26. DISC TRAY
27. HDMI SOCKET

REMOTE CONTROL
1. STANDBY BUTTON
2. SETUP BUTTON
3. FUNCTION BUTTON
4. MENU BUTTON
5. INFO BUTTON
6. PREVIOUS BUTTON
7. NAVIGATION UP & CH+ BUTTON
8. NAVIGATION LEFT & TUNE- BUTTON
9. NAVIGATION DOWN & CH- BUTTON
10. STOP BUTTON
11. VOL + BUTTON
12. TREBLE +/- BUTTON
13. VOL- BUTTON
14. NUMERIC BUTTONS
15. MEM/SUBTITLE BUTTON

16. ST/MO & AUDIO BUTTON
17. MUTE BUTTON
18. EJECT BUTTON
19. TITLE BUTTON
20. SLEEP BUTTON
21. NEXT BUTTON
22. NAVIGATION RIGHT & TUNE+ BUTTON
23. ENTER BUTTON
24. PLAY/PAUSE BUTTON
25. BASS +/- BUTTON
26. FAST BACKWARD BUTTON
27. FAST FORWARD BUTTON
28. REP BUTTON
29. GOTO BUTTON
30. A-B BUTTON
31. PROG BUTTON
32. ZOOM BUTTON
33. ANGLE BUTTON

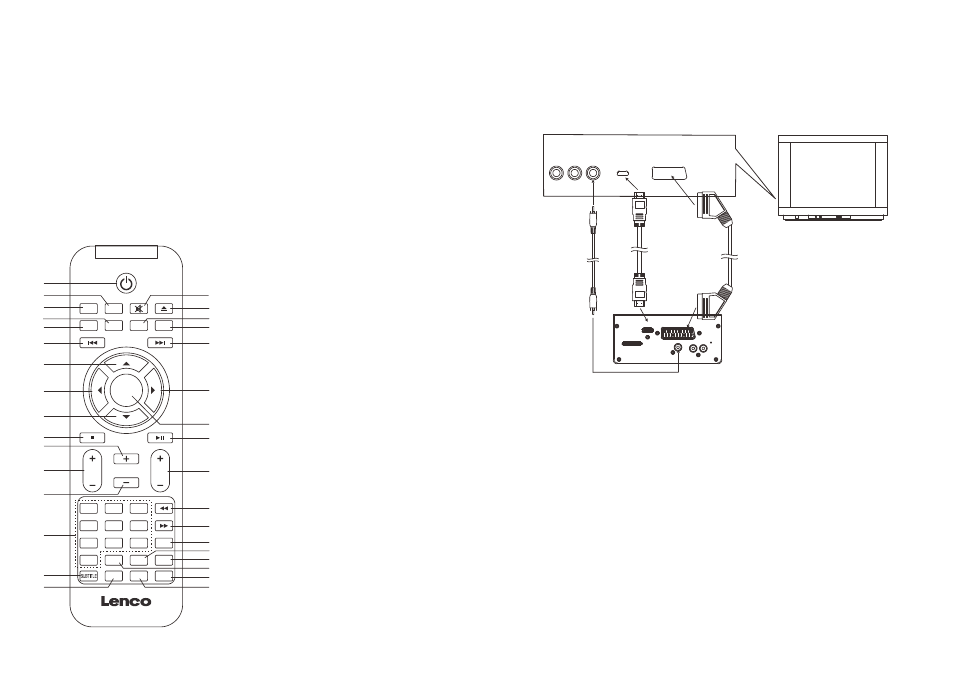

CONNECT DVD PLAYER TO OTHER APPLIANCES
It is recommended you connect the player to a multi-system TV.
Ensure that this player and other appliances (TV set and amplifier) that will be connected to the player
are set to OFF mode and that the AC cords are disconnected from the wall outlet.
Avoid blocking ventilation holes of the connected appliances and make sure air around there can
circulate freely.
Read carefully and follow the instructions before connecting other appliances.

HDMI

SCART OUTPUT

VIDEO OUT

AUDIO R AUDIO L VIDEO IN

HDMI

AV AUDIO/VIDEO INPUT

SCART

After connection is firmly and securely done, plug AC power cord to an applicable wall outlet and turn on
the player.

SCART VIDEO OUTPUT SOCKET
The SCART OUTPUT SOCKET is for the video and audio signals to be produced in high quality and
fidelity between video devices. Please notice that the player with SCART socket will have to be
connected to a TV set with the same SCART socket for reproduction of video and audio signals.
Note: The SCART VIDEO OUTPUT SOCKET works at DVD mode only.

HDMI OUTPUT SOCKET
The HDMI OUTPUT SOCKET is supplied at the rear of the unit for you enjoy photos or videos on high
resolution. Plug the HDMI cable (optional) to the unit and the TV set with the HDMI socket as the above
illustration for the high resolution photo/video output.
Note: The HDMI OUTPUT SOCKET works at DVD mode only.

VIDEO OUTPUT
There is a video output jack on the rear of the unit, so that you could make the video output to a TV set
or other appliance with video input jack for enjoying video. To output the video, connect one end of the
video cable to the video output jack of the unit, the other end to the video input jack of the appliance.

POWER SUPPLY
Plug one end of the AC cord into the AC socket on the unit, then plug the other end into the AC wall
outlet.

VIDEO cable

HDMI cable
(optional)

SCART cable
(optional)

TV set

1
2
3
4

5
6

15
16

17
18

20
21

23
24

27
28

STANDBY

FUNCTION

SETUP

MUTE

EJECT

INFO

TITLE

SLEEP

CH+

BASS

CH-

TUNE+

MEM

GOTO

A-B

ST/MO

PROG

ENTER

TUNE
-

TREBLE

VOL

REP

AUDIO

ANGLE

ZOOM
