NAC 552

source

bank

volume

balance

mute

mono

record

bank

source and

record selection

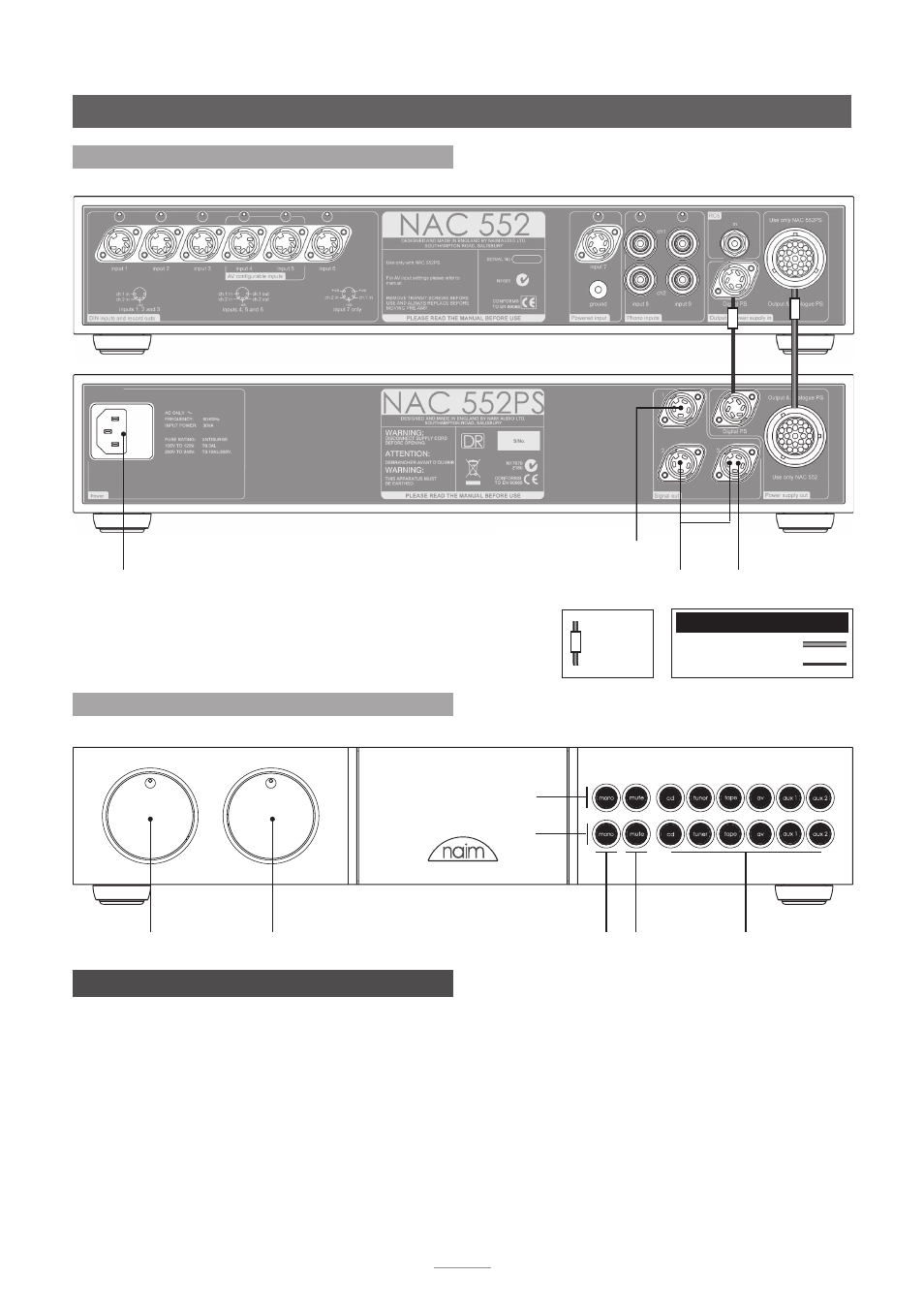

5.3 NAC 552 Front Panel Controls

5.2 NAC 552 Connected to NAC 552PS

mains input

and fuse

Note:

For best performance the Burndy and 5 pin DIN cables

should be run as close together as possible.

to stereo power

amplifiers

to mono or dual mono power

amplifiers

additional signal output

cable
direction
marker

NAC 552 Burndy

240° 5 to 5 pin DIN

Interconnect Cables

6 Specification

Input Sensitivities:

75mV, 47kΩ

Overload Margins:

40dB

(all inputs all audio frequencies).

Main Output Level:

0.775V, <50Ω

Tape Output Level:

75mV, 600Ω

Auxiliary Power Outputs:

For Naim phono stage

Power Supply:

NAC 552PS

Dimensions (H x W x D):

Both 87 x 432 x 314mm

Weight:

NAC 552 - 12.9kg

NAC 552PS - 13.9kg

Mains Supply (NAC 552PS):

100V, 115V or 230V, 50/60Hz
