MANTEL CLEARANCES AND WALL DETAILS
A combustible mantle shelf maybe installed a maximum 12" (229mm)
from the wall. Figures 5 and 6 show the minimum allowable distances
from various combustible mantle components in relation to the fire-
place opening.
Spacer
3" (76mm)
1 1 / 2 "
(38mm) Max.
B
6" (152mm)
A
12"
(229mm)
Combustible
Materials
Header

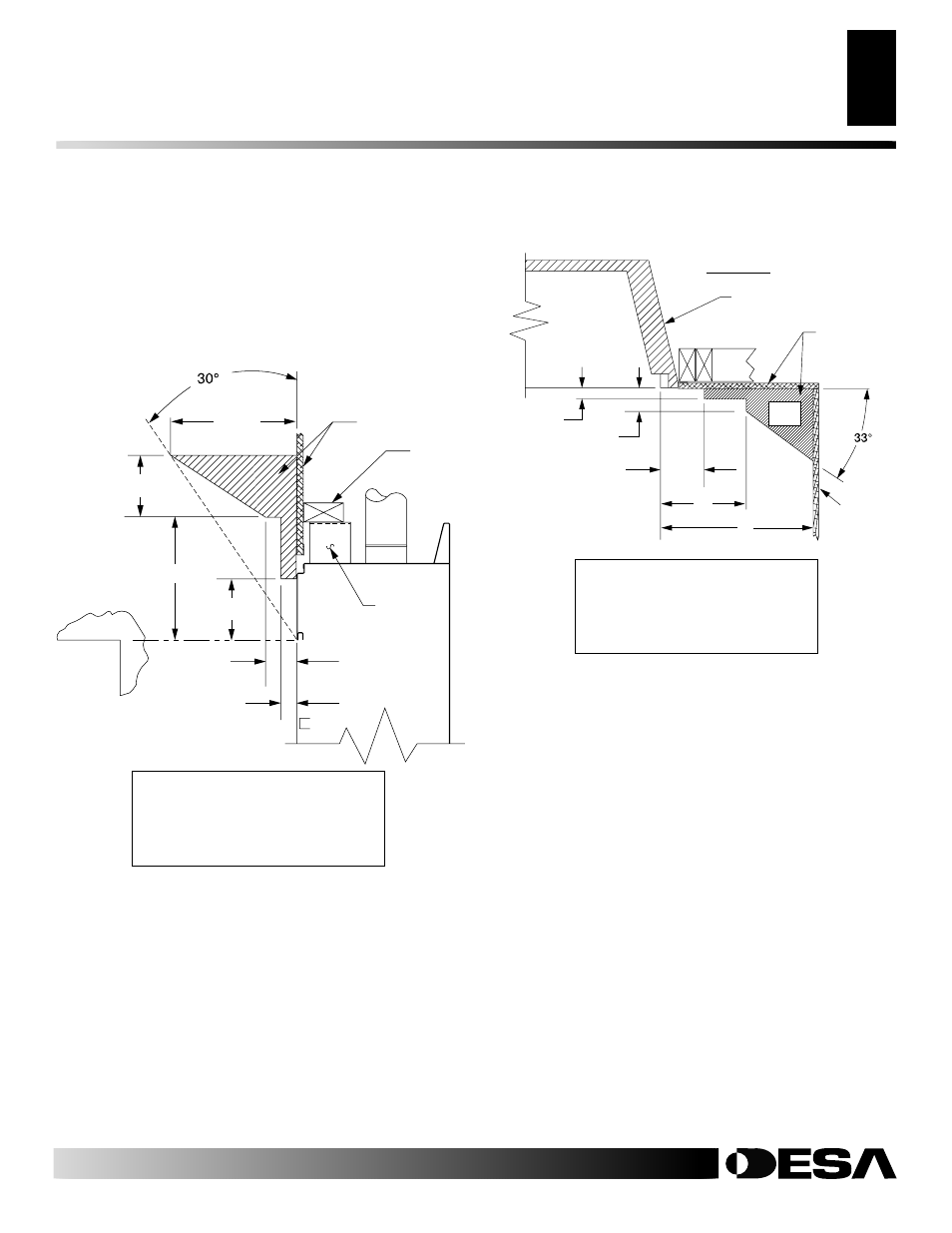

Figure 5 - Mantel Clearances - Side View (Cross Section)
1 1 / 2 " (38mm)
Max. 3" (76mm)
Max.
6" (152mm)
Max.
A
B
Outer Surround
Combustible
Material May
Be Used
TOP VIEW
SAFE
ZONE
Perpendicular
Wall
Figure 6 - Side Clearances - Top View (Cross Section)
M36(B,H) M42(B,H)
VM36(B,H) VM42(B,H)
A 9" (229mm) 6" (152mm)
B 12" (305mm) 9" (229mm)
PRE-INSTALLATION PREPARATION
Mantel Clearances and Wall Details
PRE-INSTALLATION
PREPARATION
Continued
M36(B,H) M42(B,H)
VM36(B,H) VM42(B,H)
A 14" (356mm) 15" (381mm)
B 8" (203mm) 9" (229mm)
