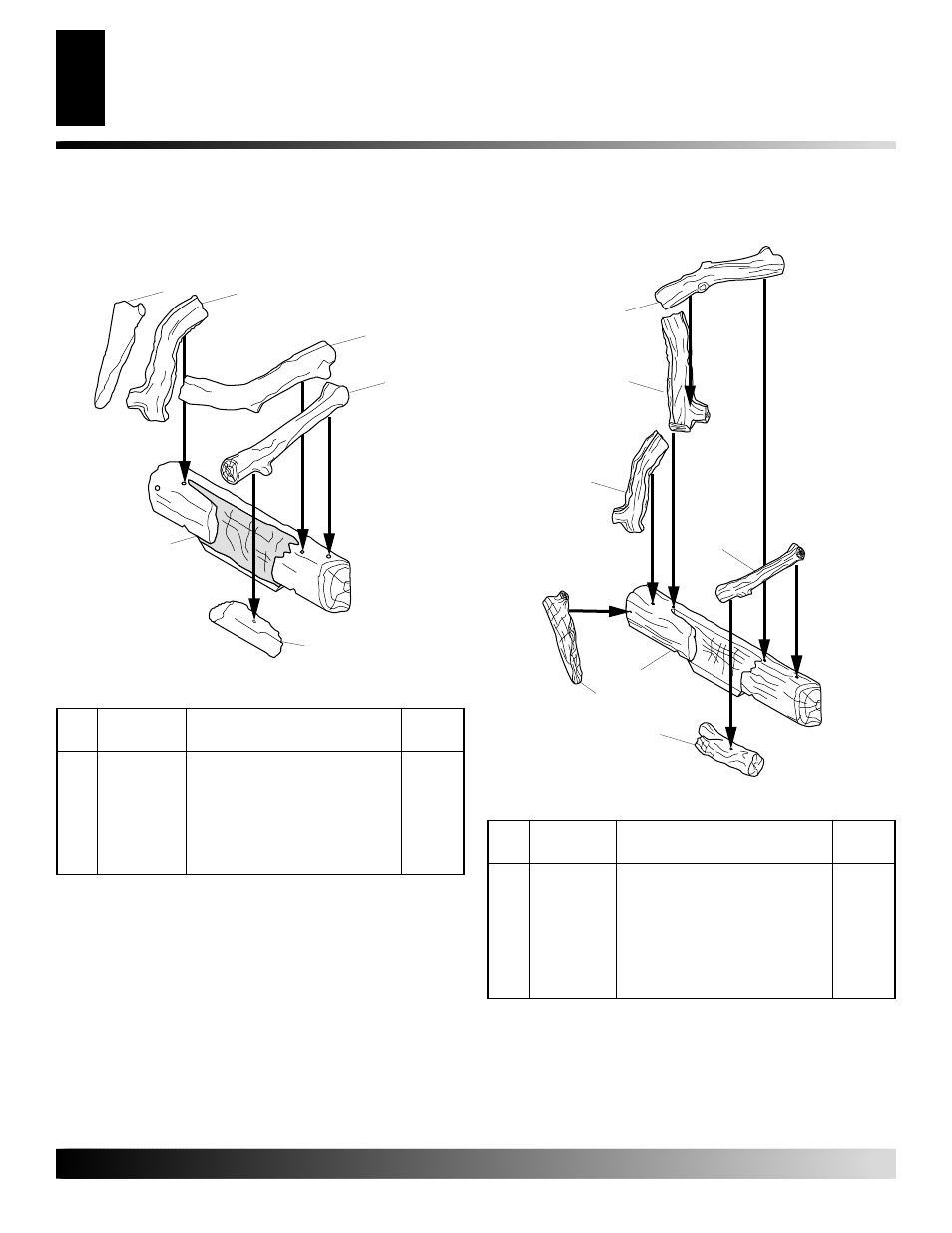

ILLUSTRATED PARTS
BREAKDOWN
LOGS FOR M36(B,H), M42(B,H), VM36(B,H)
AND VM42(B,H) MODELS
Logset for M36(B, H)/VM36(B, H) Models
Logset for M42(B, H)/VM42(B, H) Models
KEY PART
NO. NUMBER DESCRIPTION QTY.
- 107999-01 Log Set
1 108724-01 Right Front 9" Split Log 1
2 901098-01 Rear Log 1
3 108720-01 Top Right Log - 11 3 / 4 " 1
4 108721-01 Top Right Log - 16" 1
5 108722-01 Top Left Log - 13 1 / 2 " Y-Log 1
6 108723-01 Top Left Log - 11" 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
- 107999-02 Log Set
1A 108723-01 Left Front Log - 11" 1
1B 108839-01 Right Front Log - 15 3 /
4
" Round 1
2 901098-02 Rear Log 1
3 108722-01 Top Left Log - 13 1 /
2
" Y-Log 1
4 108838-01 Inside Top Left Log - 15 3 / 4 " Split 1
5 108721-01 Inside Top Right Log - 16" 1
6 108720-01 Top Right Log - 11 3 /
4
" 1
1
2
3
4
5
6
ILLUSTRATED PARTS BREAKDOWN
Logs for M36(B,H), M42(B,H), VM42(B,H) and VM42(B,H) Models
6
4
1A
1B
3
5
2
