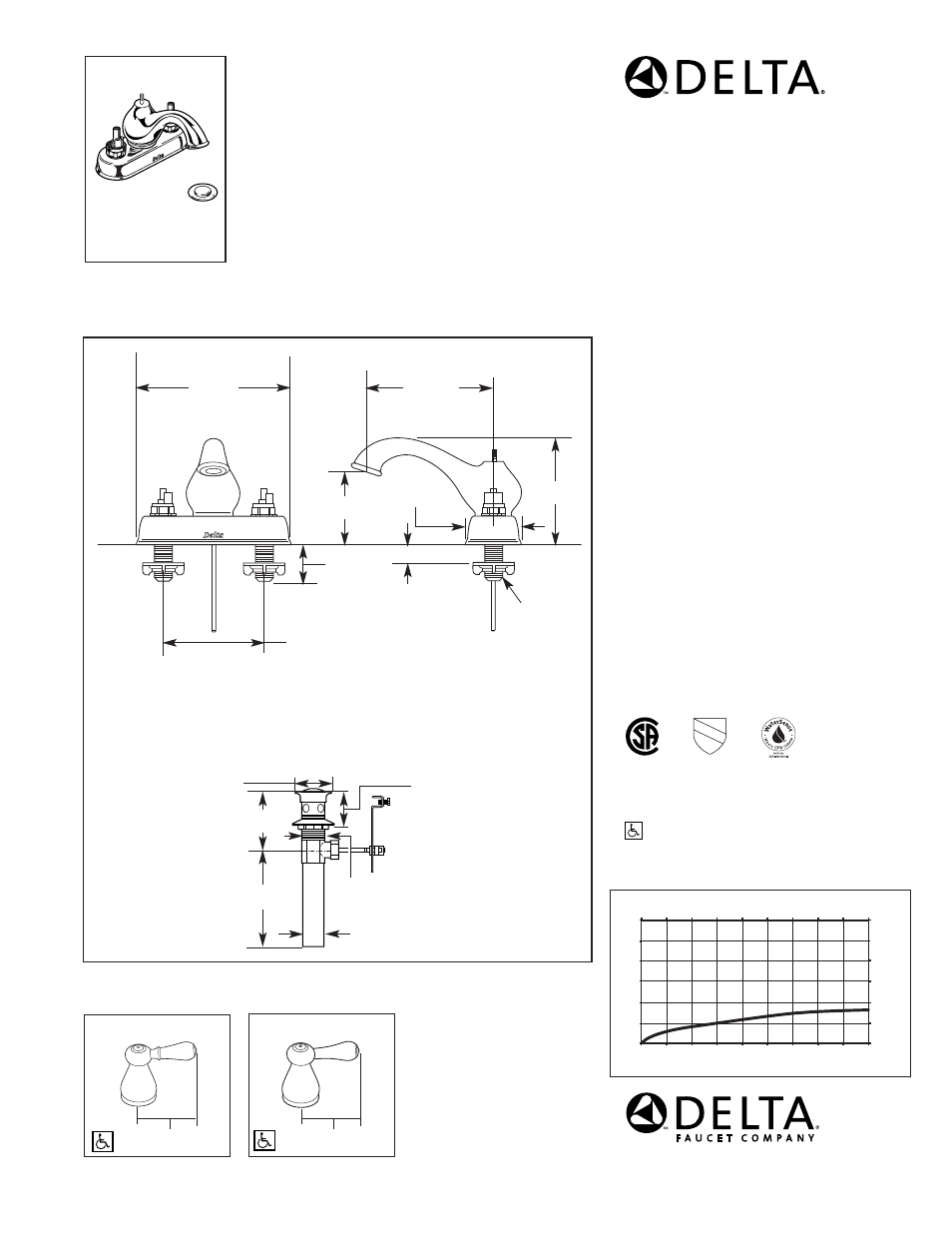

Delta 2578-LHP - Manual

C CO OM MP PL LIIE ES S W WIIT TH H::
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
• EPA Water Sense
LAVATORY
FAUCETS
■ Leland ® Series
■ Two Handle Deck Mount
■ 3 Hole Sink Applications
■ 4" Centerset
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
•
Solid brass fabricated body.
• 4" (102 mm) centerset.
• 5 1/16” (129 mm) long, 4 1/8” (105 mm)
high rigid spout.
• LHP-Less Handle Program. See handle options below.
• 1/4 turn handle stops.
• Control mechanism is a rotating cylinder type with
stainless steel plate and 90° rotation, with
replaceable non-metallic seats operating in stainless
steel lined sockets
.
• Hot and cold stems are interchangeable .
• 1/2"-14 NPSM threaded male inlet shanks.
• LHP models have metal drain with pop-up type
fitting with plated flange and stopper.
• Maximum flow rate 1.5 gpm @ 60 PSI.
2578-LHP
DSP-L-2578-LHP Rev. B
4" Centers
(102 mm)
1/2"-14 NPSM
6 3/16"
(157 mm)
2 3/8"
(60 mm)
4 1/8"
(105 mm)
2 3/16"
(56 mm) 2 13/16"
(71 mm)
1 3/8" (35 mm)
Max. Deck
Thickness
5 1/16"
(129 mm)
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
F
lo
w
(
U
.S
.
G
a
ll
o
n
s
P
e
r
M
in
u
te
) 6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
F
lo
w
(
L
it
e
rs
P
e
r
M
in
u
te
)
®
®
U P
C
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2008 Masco Corporation of Indiana
1.D.19
2 1/8"
(54 mm) Dia.
1 1/4"
(32 mm)
Dia.
3 3/8"
(86 mm)
4 5/8"
(118 mm)
1 3/8"
(35 mm)
Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
Available LHP Handle Options
▲
Designate proper finish suffix
2 9/16"
(65 mm)
H277▲
2 9/16"
(65 mm)
H278▲
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
