Specifications
MoDeL
WeIGHt
HeIGHt
WIDtH
LenGtH PsI Max* oPeratInG
PsI
GPM Max*
oPeratInG
GPM
enGIne
DP800
97 lbs
6.5"
3"
40"
800
50
3.0
.7
Honda 6.5
Hp GX00
* Water flow and maximum pressure ratings determined in accordance with PWMA standard PW101.
Pump Specifications
cat 3Dx29GsI
Oil: Use DP70
Oil Capacity: 8.5 oz. (51 ml)
A. Handle assemble
B. Frame
C. High-pressure hose
D. Spray gun
E. Quick-connect
spray wand
F. Panel assembly
G. Nozzle holder
H. High-pressure pump
oil plug
I. Engine dipstick/oil plug
J. High-pressure pump
K. Engine
L. Choke control
M. Starter grip
N. Fuel valve lever
O. Engine switch
P. Gas cap
Q. Throttle control lever
DP2800 Pressure WasHer
enGIne
Refer to the engine instruction manual for location
and operation of other engine controls.
K
D
E
C
L
N
A
M
F
B
G
J
H
O
I
P
Q

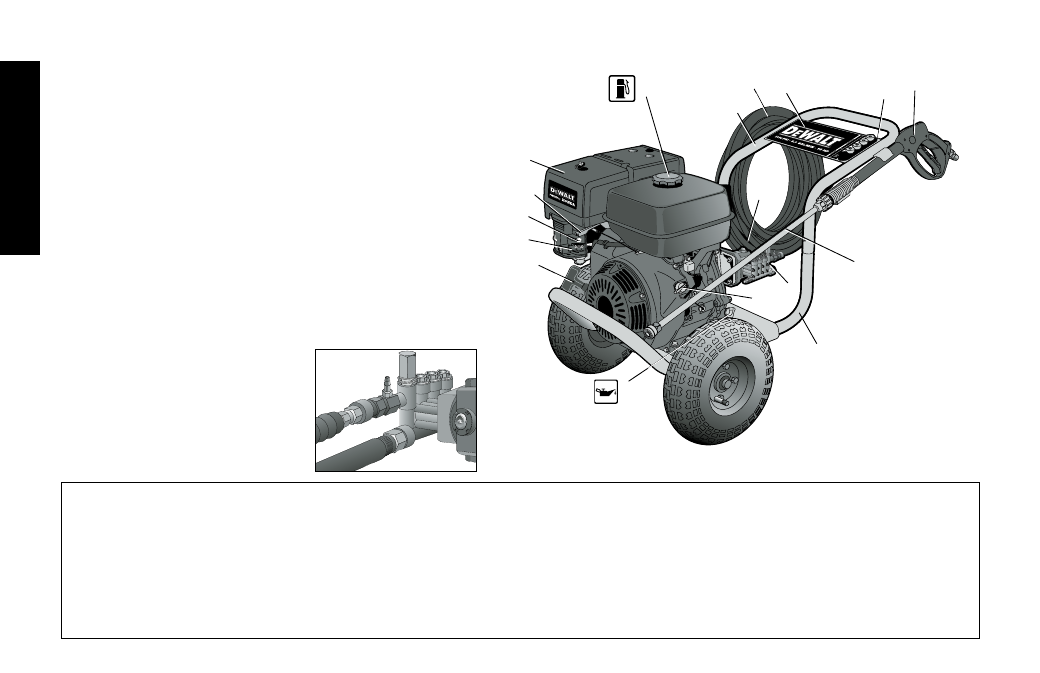

FIG. 1
