www.desatech.com 113134-01F 17
11. Place metal trim on shoulder screws located
on the side and top of the fireplace (see As-
sembling and Attaching Optional Perimeter
Trim, page 19). Firmly snap trim over shoulder
screws. Align fireplace in mantel assembly so
the trim overlaps mantel evenly on all three
sides.
12. Lower bottom louver door. Use 3" wood screws
provided with mantel accessory to attach fire-
place to base (see mantel instruction sheet).
INSTALLATION
Continued

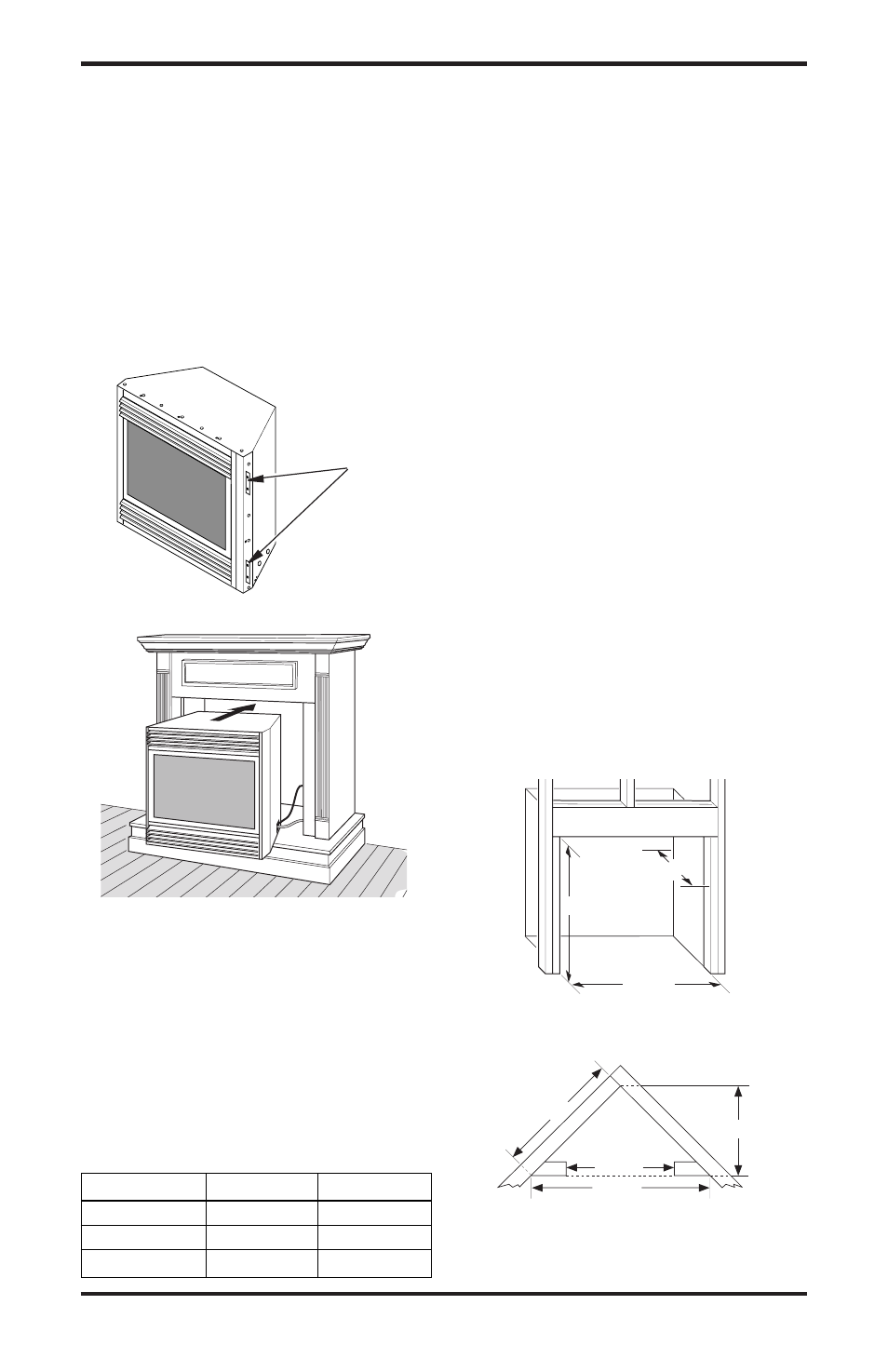

Figure 23 - Inserting Fireplace Into
Cabinet Mantel
Figure 22 - Location of Nailing Flanges
Nailing
Flanges
BUILT-IN FIREPLACE
INSTALLATION
Built-in installation of this fireplace involves install-
ing fireplace into a framed-in enclosure. This makes
the front of fireplace flush with wall. If installing
a mantel above the fireplace, you must follow the
clearances shown in Figure 27, page 18. Follow
the instructions below to install the fireplace in
this manner.
Actual Framing
Height 3 3 /
8
" 33"
Front Width 34 5 /
16
" 35 1 / "
Depth 16 11 /
16
" 17 3 /
4
"
1. Frame in rough opening. Use dimensions shown
in Figure 24 for the rough opening. If installing
in a corner, use dimensions shown in Figure 25
for the rough opening. The height is 33" which
is the same as the wall opening above.
2. Install and properly ground GA3555, three-
prong 120 volt electrical outlet, in fireplace.
Follow instructions included in kit (see Ac-
cessories, page 36).
3. If not already completed, install gas piping to
fireplace location. This installation includes an
approved flexible gas line (if allowed by local
codes) after the equipment shutoff valve. The
flexible gas line must be the last item installed
on the gas piping. See Installing Gas Piping
to Fireplace Location, page 13.
4. Carefully set fireplace in front of rough opening
with back of fireplace inside wall opening.
5. Attach flexible gas line to gas supply. See Con-
necting Fireplace to Gas Supply, page 14.
6. Plug electrical cord(s) into electrical outlet
installed in step 2.
7. Carefully insert fireplace into rough opening.
8. Attach fireplace to wall studs using nails or
wood screws through holes in nailing flange
(see Figure 26, page 18).
9. Check all gas connections for leaks. See
Checking Gas Connections, pages 15.
10. Install trim. See Assembling and Attaching
Optional Perimeter Trim, page 19.
35 1 /
2
"
17 3 /
4
"
33"
39 3 /
8
"
27 7 /
8
"
55 5 /
8
"
35 1 /
2
"
Figure 24 - Rough Opening for Installing
in Wall
Figure 25 - Rough Opening for Installing
in Corner
