AUDIO OUTPUT CONNECTIONS
Select the ‘LINE’ position of the ‘LEVEL’ switch when the
output of the receiver is connected to the line level input of
a mixer or amplifier. Select the ‘MIC’ position of the ‘LEVEL’
switch when the output of the receiver is connected to a
microphone level input of a mixer. Distortion may occur if the
‘LEVEL’ switch is set to the wrong position. (Fig.8)
The ‘BALANCED OUTPUT’ should be used when the receiver
is going to be connected to either a microphone or line level,
balanced input of a mixer. (Fig.9)
Longer runs are less likely to cause problems with balanced
cables.
The ‘UNBAL ANCED OUTPUT’ should be used when the
receiver is going to be connected to a ¼” input jack of a mixer
or an amplifier (usually line level) that uses a ¼” jack. Use the
appropriate setting on the ‘LEVEL’ switch on the rear panel
of the Contact 800T. Cable length for this type of connection
should be limited to less than 5 feet (5 meters). (Fig.0)
Contact 800T
Contact 800T
Contact 800T

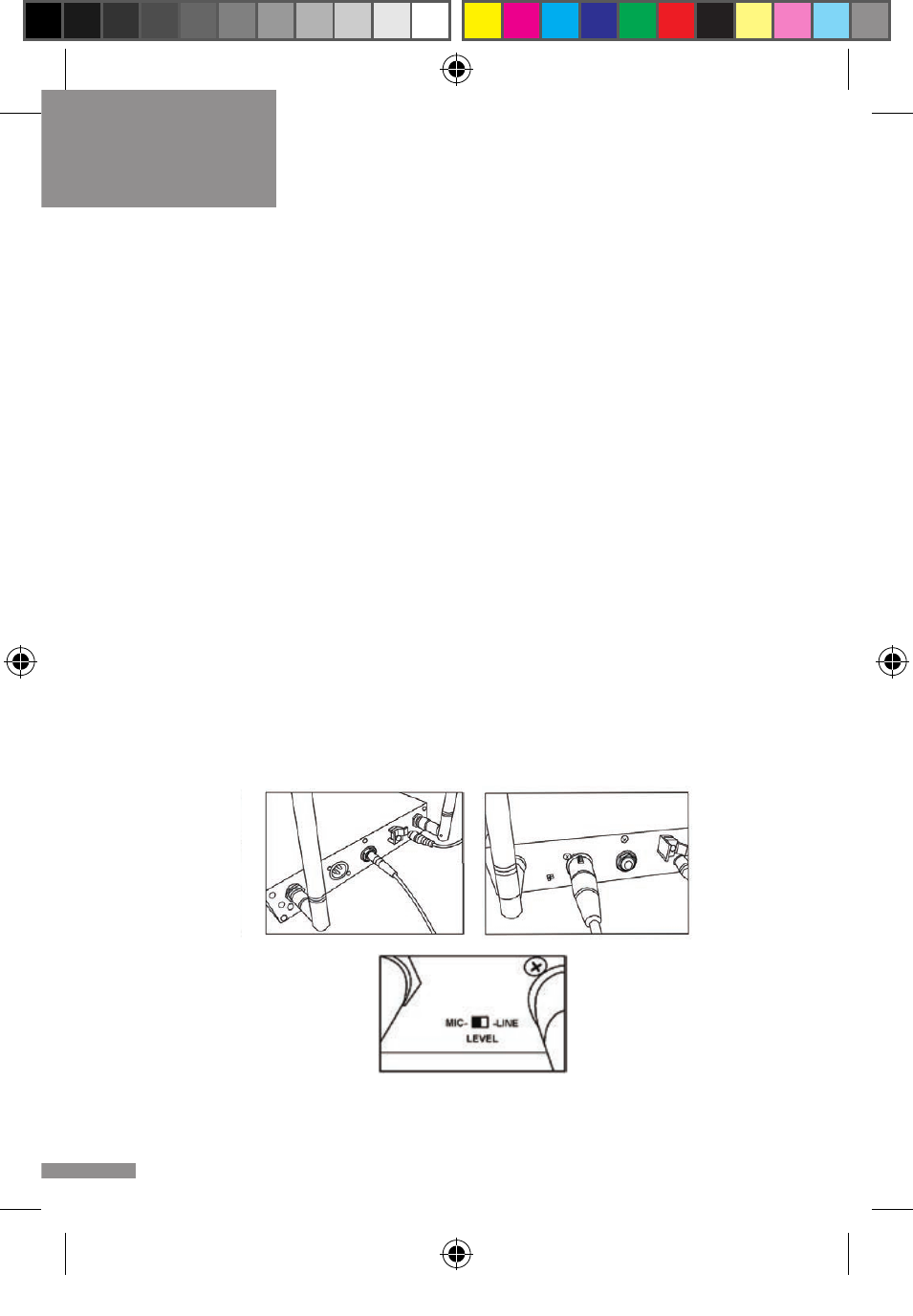

(Fig.10) (Fig.9)
(Fig.8)
