14
English

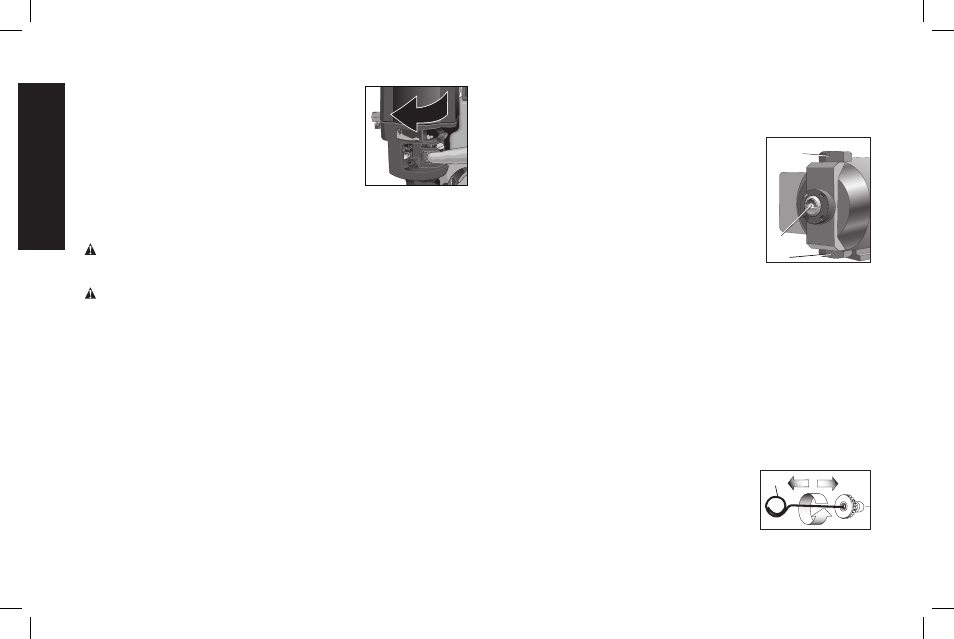

3. Place the fuel valve lever (M) in the OFF
postion.
CAUTION: Risk of property damage. Never
turn water supply off while pressure washer
engine is running or damage to pump will result.
4. Turn water source off.
5. Pull trigger on spray gun to relieve any water
pressure in hose or spray gun.
6. Refer to storage for proper storage procedures.
MAInTEnAncE
WARNING: Risk of burning. When performing maintenance, you
may be exposed to hot surfaces, water pressure or moving parts that
can cause serious injury or death.
WARNING: Risk of fire. Always disconnect, spark plug wire, let
the engine cool and release all water pressure before performing
any maintenance or repair. The engine contains flammable fuel. Do
not smoke or work near open flames while performing maintenance.
To ensure efficient operation and longer life of your pressure washer,
a routine maintenance schedule should be prepared and followed.
If the pressure washer is used in unusual conditions, such as high
temperatures or dusty conditions, more fre quent maintenance
checks will be required.
Engine
Consult the engine instruction manual for the man u fac tur er's recom-
mendations for any and all maintenance.
note: The pressure washer frame is equipped with an oil drain
hole to help make changing the engine oil easier.
Pump
note: The pump was filled with oil at the factory.
Change pump oil after the first 10 hours of operation and every 250
hours thereafter.
to CheCk oIL
The oil level should come to the dot in the middle
BB
CC
AA
of the sight glass (AA).
hoW to ChanGe PuMP oIL
1. Loosen pump oil fill plug (BB).
2. Place a container under the oil drain plug
(CC).
3. Remove pump oil drain plug.
4. After oil is drained, replace oil drain plug.
Tighten securely.
5. Remove pump oil plug and fill with 8.5 oz. (251 ml) of DP70 pump
oil. If DP70 is not available use 30W non-detergent oil.
6. Replace pump oil plug and tighten securely.
nozzle cleaning
If the nozzle becomes clogged with foreign materials, such as dirt,
excessive pressure may develop. If the nozzle becomes partially
clogged or restricted, the pump pressure will pulsate. Clean the
nozzle immediately using the nozzle kit supplied and the following
instructions:
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on gun handle to relieve any water pressure.
3. Disconnect the spray wand from the gun.
4. Remove the high-pressure nozzle from the
Y
spray wand. Remove any obstructions
with the nozzle cleaning tool (Y) provided
and back flush with clean water.
