WebDT DT500 Series - Manual (Page 2)

Integrated LCD Systems
I/O Panels & Function Buttons

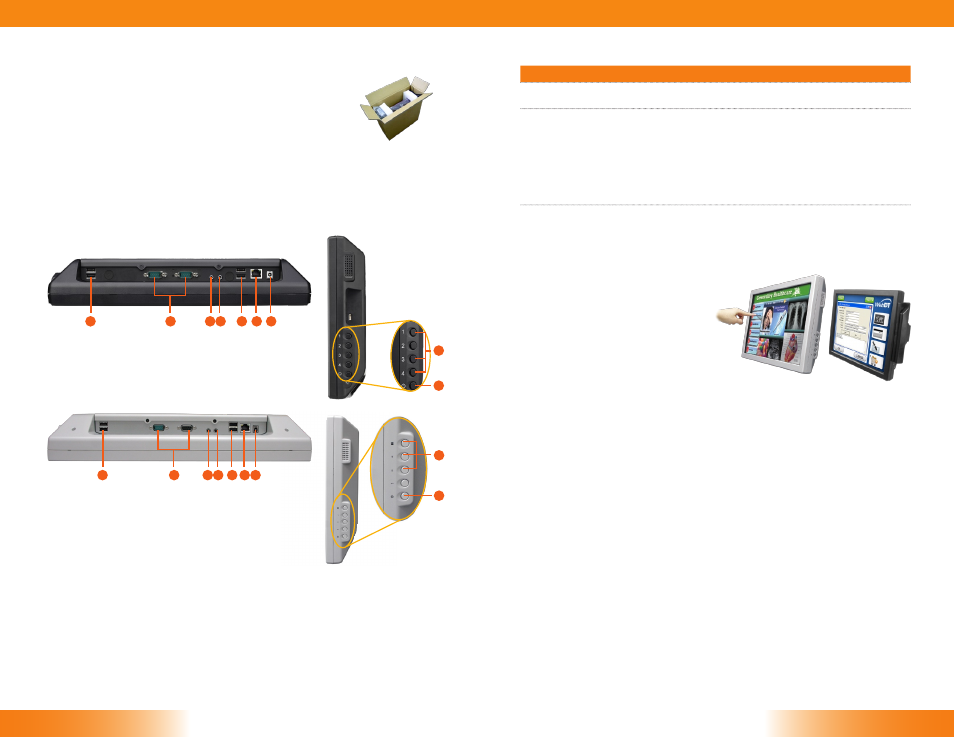

The DT Research Integrated LCD System has a comprehensive set of I/O ports. The following ports
are located along the lower rear edge of the display unit.
Two USB 2.0 ports 1.
COM ports 2.
Audio-out jack 3.
Microphone-in jack 4.
Two USB 2.0 ports 5.
Ethernet port (RJ45) 6.
DC-in jack 7.
ENGLISH 2 3 ENGLISH
Packaging
The DT Research • Integrated LCD System is packaged with recyclable materials
and designed for maximum protection in transportation and handling.
When possible, please save the packaging carton and protective inserts for
•
re-use if there is ever a need to ship the DT Research Integrated LCD System.
Button Description
8. Programmable
The three buttons are intended to be user programmable via software in
applicable operating systems.
9. Power
M • ay be configured to perform different functions, depending on the
software operating system.
D
• epending on the OS, a brief, firm push will trigger software-enabled
entry into Shutdown or Standby modes. Push in similar manner to Restart or
to exit Standby mode.
P
• ush and hold for over 4 seconds to forcefully shut down the device. This
method of powering off should only be used when proper shutdown
through software is not possible.
1
1
2
2
3
3
4
4
5
5
7
7
8
9
8
9
6
6
22-inch and 24-inch LCD Models
15-inch, 17-inch and 19-inch LCD Models
Options
The DT Research Integrated LCD System has a number of optional configurations in both software
and hardware. These include:
SSD or HDD storage 1.
IR touch screen display 2.
Magnetic card reader 3.
Built-in 802.11 WLAN module 4.
Cleaning the Screen
A screen cleaning solution that is non-alcohol and non-abrasive can be used to clean the touch •
screen.
We suggest cleaning with a micro-fiber cloth.
•
Please spread the solution on to the cloth and then clean the touch screen. •
Cleaning the Anti-microbial Enclosure (DT500-MD series)
Use a soft/non-abrasive cloth moistened with water to clean the enclosure. •
If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended. •
To prevent scratching the anti-microbial coating, please wipe gently. •
