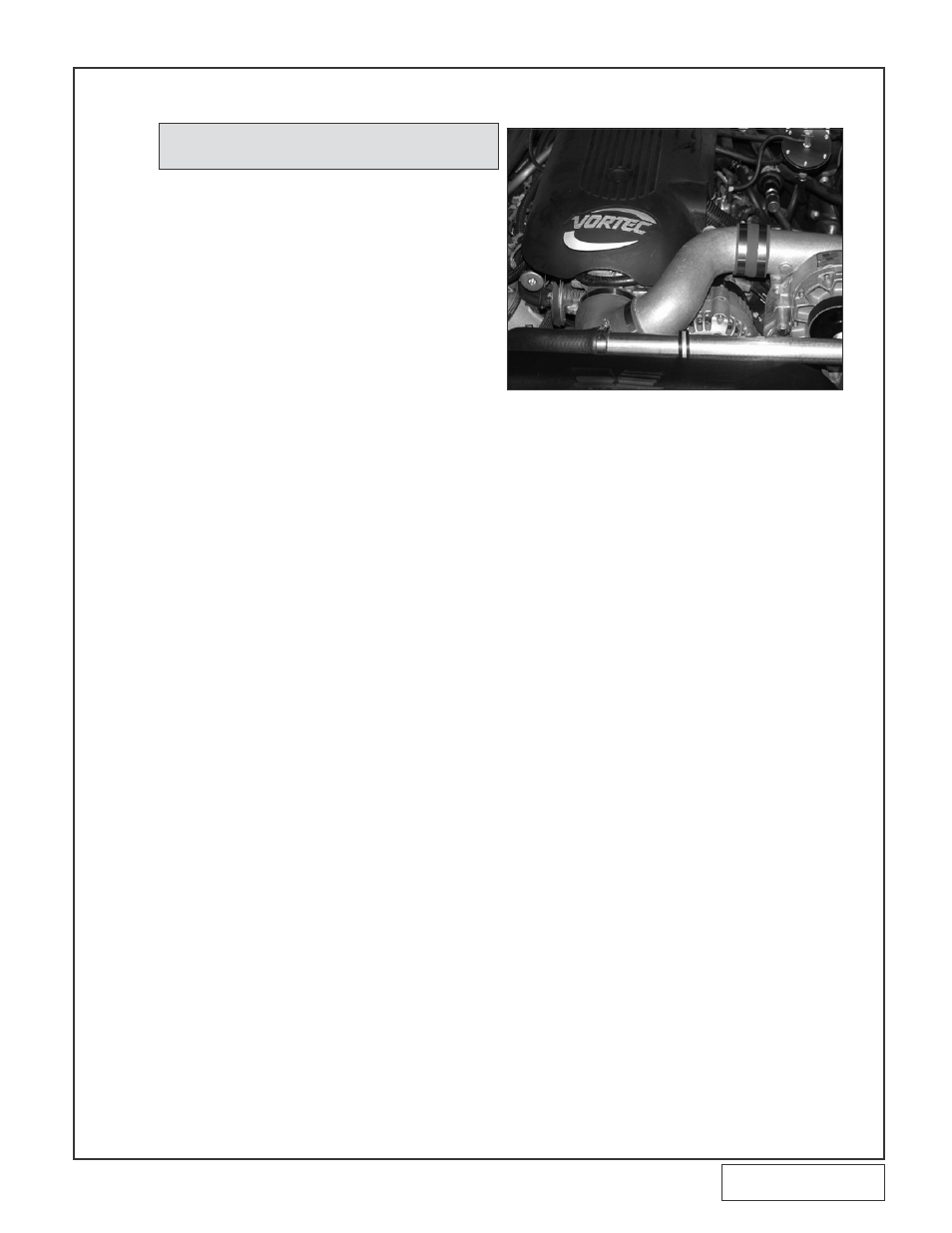

Fig. 12-a

12. DISCHARGE DUCT InSTALLATIOn

A. Install the supplied 2-3/4” sleeve and rubber

elbow onto the cast discharge duct. Put the

discharge duct into position and slide the

sleeves onto the supercharger and the throttle

body.

B. Install and tighten the #64, #48 and the two

#44 hose clamps.

NOTE: This section only applies to standard

output kits.
