Envelope-Generator (EG)
FILTER Lancet’s envelope generator (EG) generates a variety of envelope
shapes depending on the trigger source used. It will work as an Attack/
Decay envelope when using triggers from the audio input or the AUDIO
TRIG-input. It will work in three phases (Attack, Sustain, Release) when
using the GATE-input. The sustain period cannot be adjust in FILTER
Lancet. It is dependent on the duration of the incoming gate signal. The
release phase will follow once the gate signal has been ended. The follow-
ing parameters are available for contour shaping:

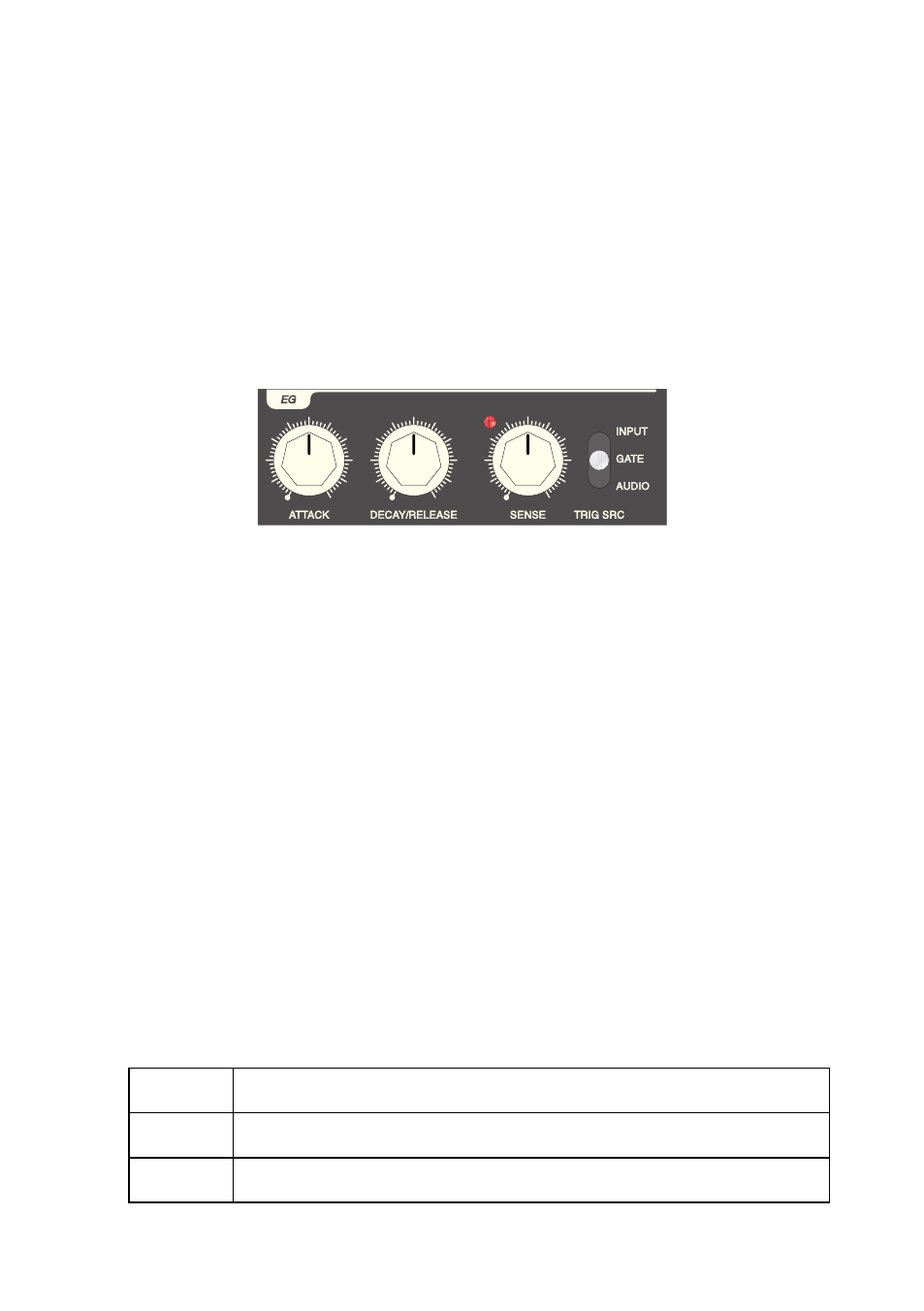

Picture 6: Envelope-Generator (EG)
ATTACK
adjusts the rising time from 0ms to 10s (maximum level).
DECAY/RELEASE
adjusts the decay time for the sound between 0ms to 15s.
SENSE
SENSE controls the sensitivity for the trigger source. SENSE will be inac-
tive with GATE being selected as trigger source.
TRIG SRC
TRIG SRC sets the trigger source:
INPUT the audio input
GATE a 5 volts gate voltage applied at the GATE input.
AUDIO audio signal fed into the AUDIO TRIG input.
