R ear Panel Connections
5
.
w w w . v e l o d y n e . c o m
VRP User’s Manual

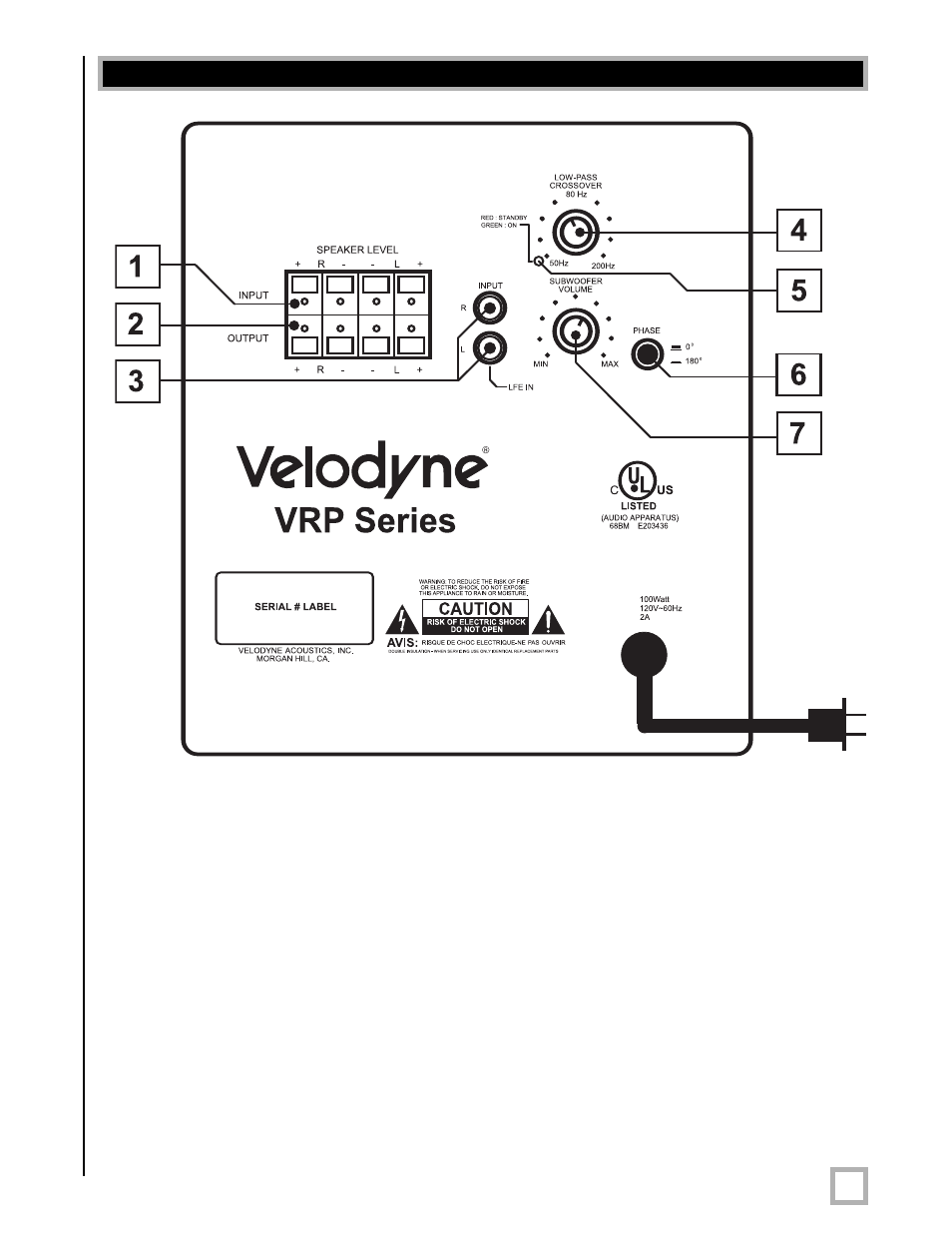

Figure 1.VRP Rear Panel Connections
Figure 1 shows the connections on the rear panel of the VRP. Following are brief descriptions
of the connections described in Figure 1. More detail of these connections can be found below:
(1) SPEAKER LEVEL INPUT terminals - Connect these input terminals to the speaker
output terminals of your amplifier or receiver.
(2) SPEAKER LEVEL OUTPUT terminals - The speaker-level signal to the front speakers
is output from these terminals.
(3) LINE INPUT jacks - Connect these jacks to the LINE OUT jacks of the amplifier.
(4) LOW-PASS CROSSOVER - Use this knob to select the high-frequency range at which
you wish to cut-off the signal to the subwoofer.
