www.velodyne.com 6 - CHT-Q Series User’s Manual
REAR PANEL CONNECTIONS
2
4
5
6
7
1
3

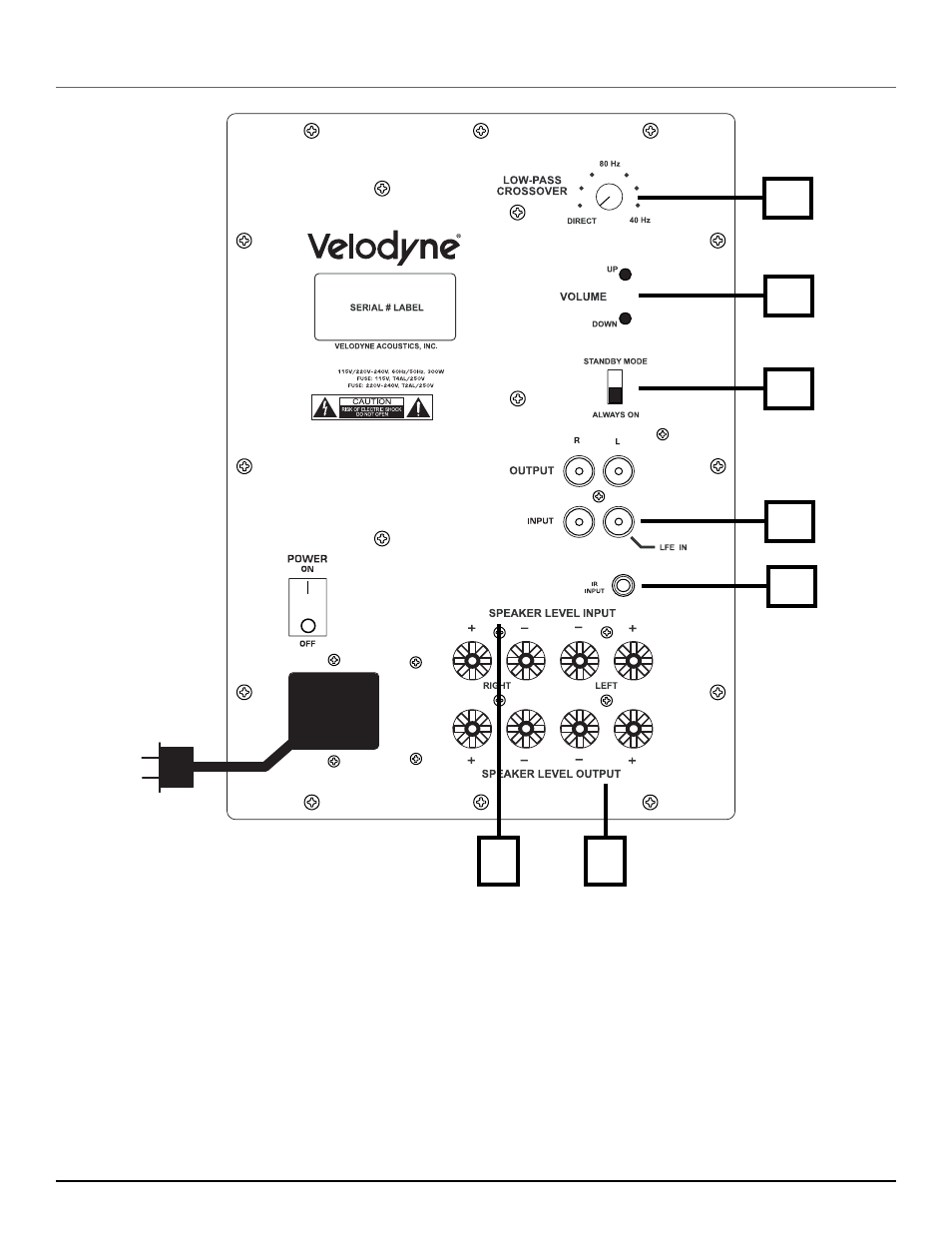

Figure 2. CHT-8Q, CHT-10Q, and CHT-12Q Rear Panel Connections
Figure 2 shows the controls and connections on the rear panel of the CHT-8Q, CHT-10Q, and CHT-12Q.
Following are brief descriptions of the controls and connections described in Figures 2 and 4 and 5. More detail
of these connections can be found below:
(1) SPEAKER LEVEL INPUT Terminals
Connect these input terminals to the speaker output terminals of your amplifier or receiver. If you use
this method of connection, when you go to the receiver speaker set up menu, make sure you select
the large speaker option.
