Treasure Garden GP12120 - Manual (Page 5)

4 11
Angled Pole 1
Top Connection 11
Long Screw 18
Center Hub 12
Corner Joint 8
8
1
Correct
18
12
11

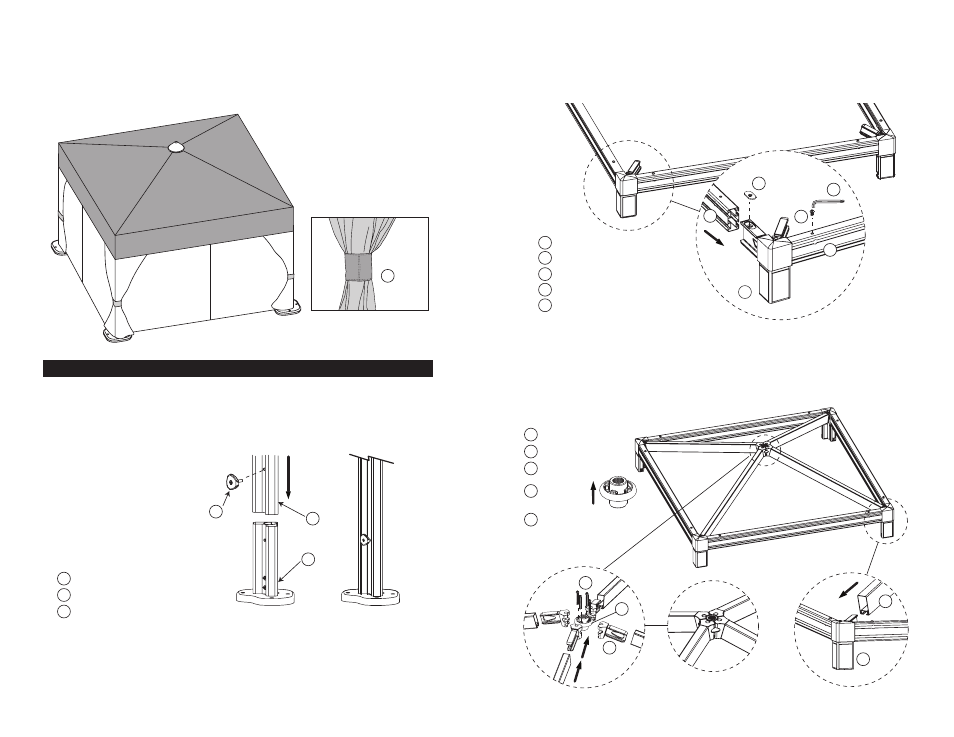

S T E P 3 Assemble Top Section (Two-person Assembly)
With all corner joints connected to horizontal side beams - attach each angled pole to
top corner joints (track side down), push firmly. Bring all beams together at top
center, slide top connection into each angled pole (holes up), bring together with
center hub, then insert long screws and tighten using large wrench.
30 Ties
S T E P 1 2 Attach Ties
Pull corner fabric toward the post, wrap tie around the gathered fabric and snap tie to
corner and secure with attachment strip. Repeat steps for all corners. NOTE: If fabric is not
gathered, tie will not go around walls.
Optional umbrella base (sold separately)
17
15
14
15
2
14
Knob 14
Vertical Corner (Upright) Post 2
Mounting Plate (2 parts) 15
Base Adapter Bolt
Plate & Stem Insert
31
Small Wrench 17
2
Vertical
Adapter
Vertical
Adapter
31
Knob 14
Vertical Corner
(Upright) Post 2
Standard Mounting Set-Up:
Remove knob from vertical adapter. Slide vertical corner (upright) onto mounting plate.
Make sure hole on vertical corner lines up with hole on mounting plate. Hand tighten knob.
Repeat for each post.
Mounting and Application Options
NOTE: Secure mounting plates when Pavilion assembly is complete.
8
20
5
Short Screw 20
Horizontal Side Beam 3
3
3
Large Wrench 16
16
Joint Adapter 5
Corner Joint 8
S T E P 2 Install Corner Joints (Two-person Assembly)
Place 2 joint adapters into 2 slots of corner joint, see illustration. With partner, insert
horizontal side beam onto each corner joint, insert 2 short screws and tighten using
large wrench. Repeat step on all corners.
