Grass Application
If Pavilion is to be placed on grass, secure with
nails provided. (4 nails per mounting plate)
Nails 33
Concrete Application
If Pavilion is to be mounted to concrete, secure with expansion bolts provided. (4
bolts per mounting plate). To determine where to drill holes in concrete, pick up the
Pavilion, using a four-person team, and move to desired location. Mark holes of
mounting plate with a marker. Move Pavilion slightly off to the side and drill 4 marked
holes, per mounting plate. Once all holes are drilled, move Pavilion back to desired
location and line up drilled holes with mounting plate holes. Now secure mounting
plate with expansion bolts. Your Pavilion is ready for use!
Expansion
Bolts 32
6
6
3 Track Adapter
“protrusion inward”
6
Horizontal Side Beam 3
Hook Adapter 7
1 Notch - Outside Top Track
2 Notches - Outside Bottom Track
Hook Facing
Downward
7

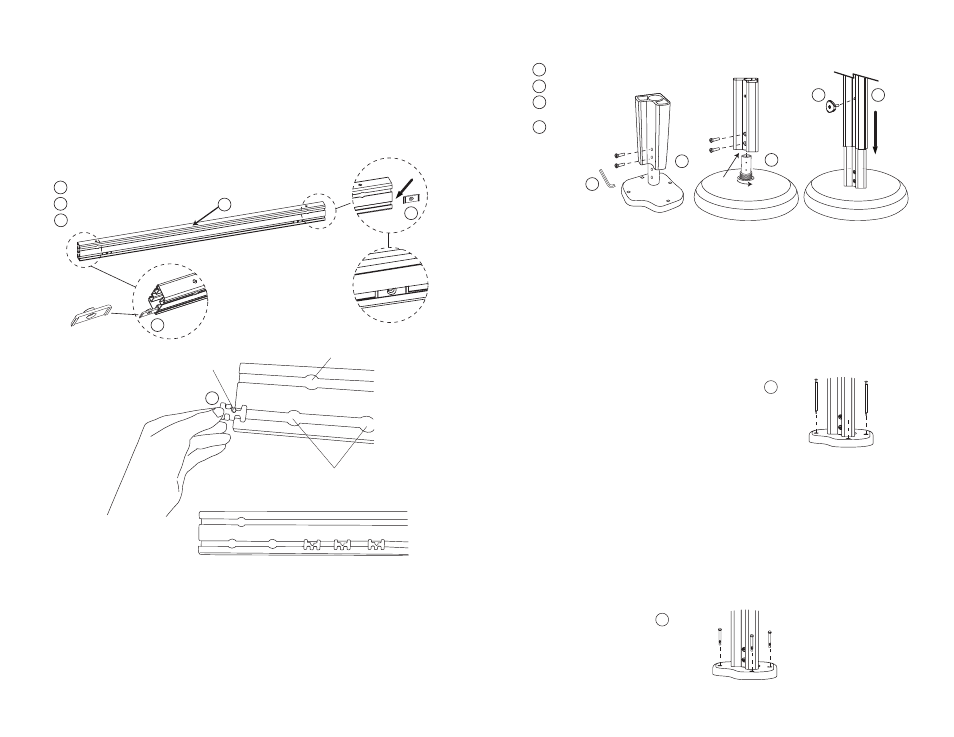

S T E P 1 Prepare Horizontal Side Beams
Form a square with the horizontal side beams. Lay beams with bottom track side
down (1 notch is the top track, 2 notches is the bottom track). Slide 3 hook adapters
into the outside of the horizontal beam, on the bottom track, with hook facing
downward. Be sure to slide 2 track adapters into the inside of the horizontal side
beam, on the bottom track with the protrusion facing inward. Repeat for each
horizontal side beam. NOTE:
Very important to insert correctly or cannot assemble
later!
Optional umbrella base (sold separately)
17
15
14
15
2
14
Knob 14
Vertical Corner (Upright) Post 2
Mounting Plate (2 parts) 15
Base Adapter Bolt
Plate & Stem Insert
31
Small Wrench 17
2
Vertical
Adapter
Vertical
Adapter
31
Knob 14
Vertical Corner
(Upright) Post 2
Loosen the 2 mounting plate screws and remove plate & stem insert (set screws aside).
Tighten base adapter bolt into umbrella base*, then slide vertical adapter onto base adapter
bolt and tighten with 2 screws . Finally, slide vertical corner (upright) onto vertical adapter.
Make sure hole on vertical corner lines up with hole on mounting plate. Hand Tighten
knob. Repeat for each umbrella base. Minimum of 320 lbs. (total) required.
*NOTE: Base adapters do not work on Treasure Garden BW Series Bases.
Optional Umbrella Base
