3) Your goal is to position the Mount Kit beneath your toolbox in the correct location, so the box can be mounted

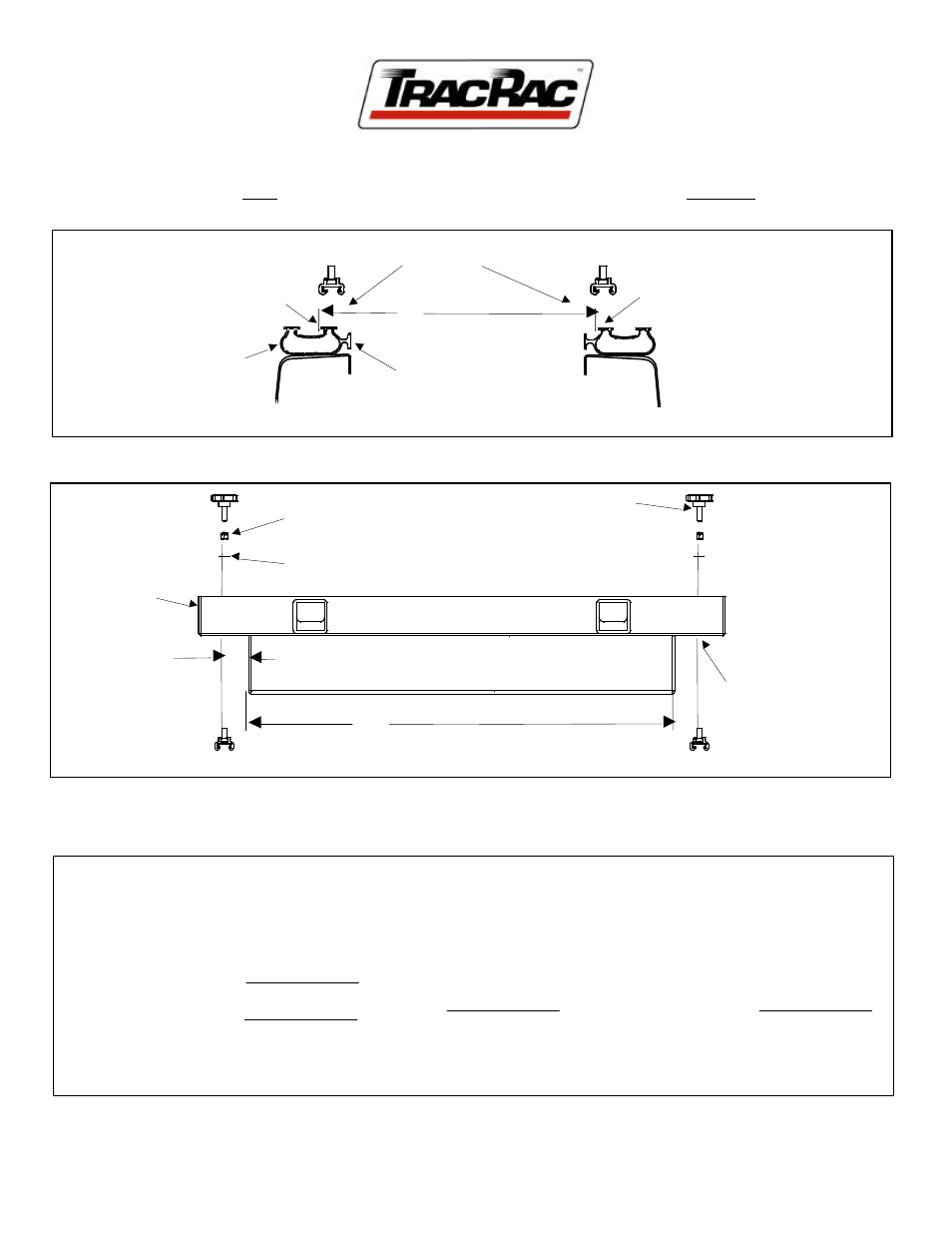

to the Base Rails. Start by measuring the width between the Base Rail inner T-Tracks. (See Fig 1) Hook the
tape measure on the outer edge of the driver’s side inner T-Track and measure to the innermost edge of the
passenger side T-Track (this is Measurement A: mark it down below).
4) Take your toolbox and measure the width of the box’s belly (Measurement B) (See Fig 2)
5) Use the chart in Figure 2a to calculate where to drill the holes in your toolbox.
6) A minus B equals C & C divided by 2 equals D
Figure 2a
Record Measurements Here
Measurement A:
minus
Measurement B:
Equals C:
Divide C by 2:
To get Measurement D:
WING
KNOB
Figure 2
FLAT WASHER
DRILLING
LOCATION
BOX’S BELLY
D
B
LOCK NUT
INNER TOP
T-TRACKS
BASERAILS
SIDE T-TRACK
Figure 1
A
DRIVER’S SIDE
OUTER EDGE
PASSENGER’S SIDE
INNER EDGE
