DAMAGE INSPECTION – RACK OUT-OF-PLUMB
Due to an impact (e.g. fork truck collision), a rack may be out-of-plumb by a certain amount. A
recommended maximum amount of out-of-plumb for a rack in an unloaded condition, both along
the aisle and across the aisle directions, is Height/350.

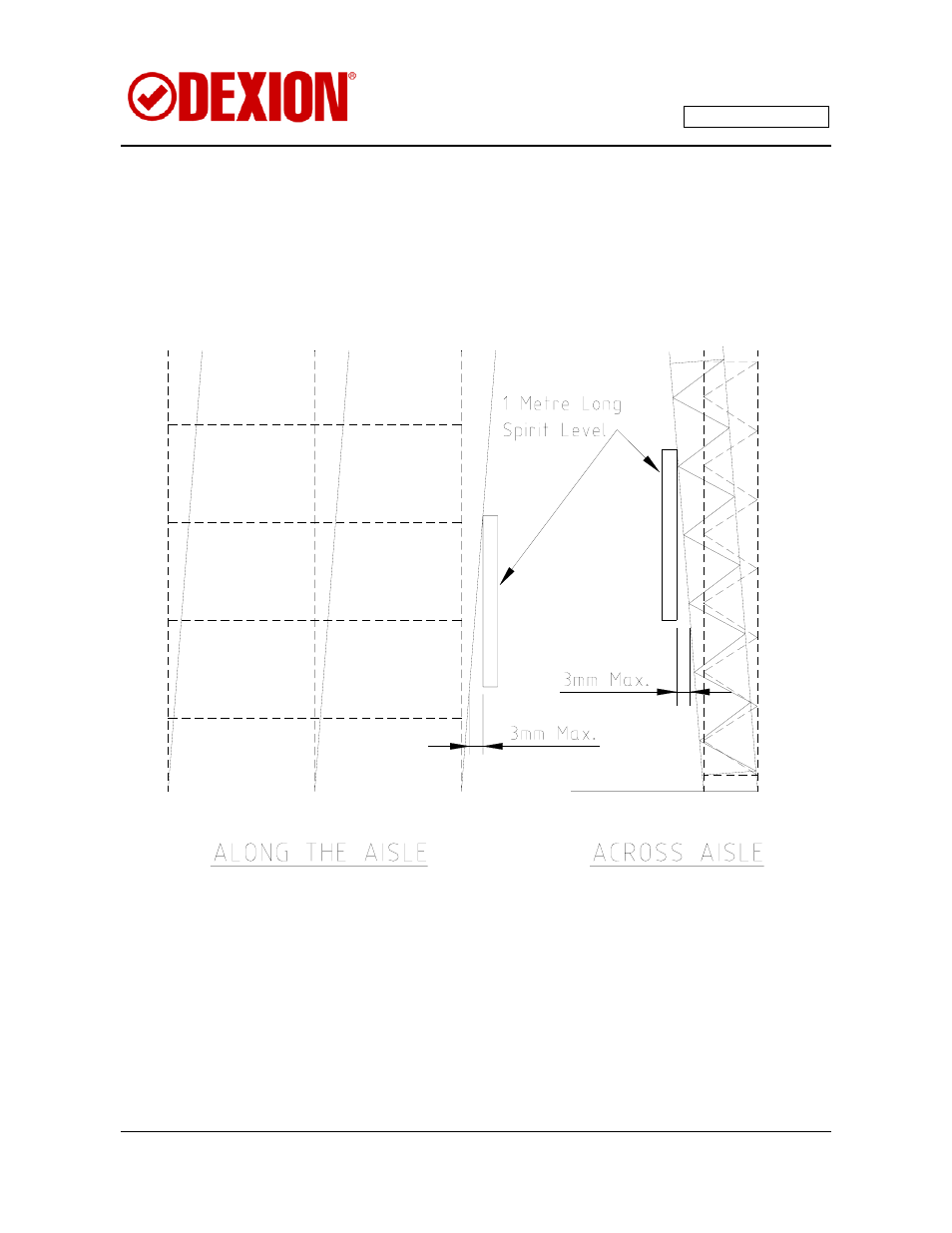

A simple way to measure the amount of out-of-plumb is shown below:
