TFC Group Tunus 772 - Manual (Page 4)

26 27
GB
Technical data
16 A / 250 V AC
10 A / 250 V AC
2600W
1000W
3700W / 750W
-10°C + 55°C / -30°C + 70°C
IP 20 / IP 65
2 lx – 500 lx
adjustable: appr 0-100s ON/0-100s OFF
50
typ ± 1 s/day at +20°C
3 years from factory
AC switching capacity:
– Ohmic load (VDE, IEC)
– Inductive load cos φ 0,6
– Incandescent/halogen lamp load
– Fluorescent lamp
– Rated load AC1 / AC15
Ambient temperature:
– Control unit / Brightness sensor
Protection type:
– Control unit / Brightness sensor
Photoelectric switches:
– Adjustment range
– Switching delay
Time switch:
– Memory spaces
– Accuracy
– Running reserve
Assembly on DIN-rail
Installation and assembly
Danger! Risk of electric shock!
Z Z Connection and mounting must be realized by a professional electrician! DANGER

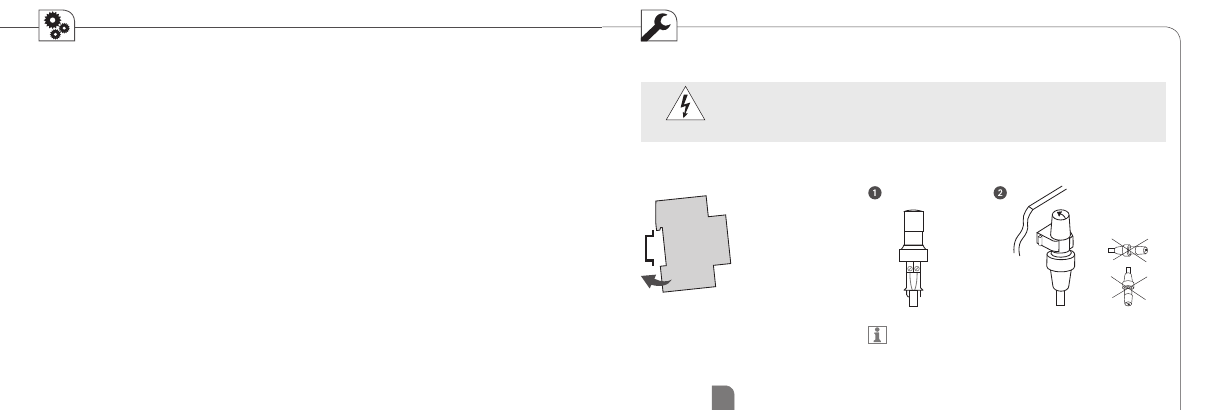

Put the device slightly inclined
on top of the rail Then push it
backwards until it engages
Connecting and mounting the brightness sensor
• Length of the connecting cable: max 100 m
• Line cross-section: min 2 x 0 75 mm
2
