7 6

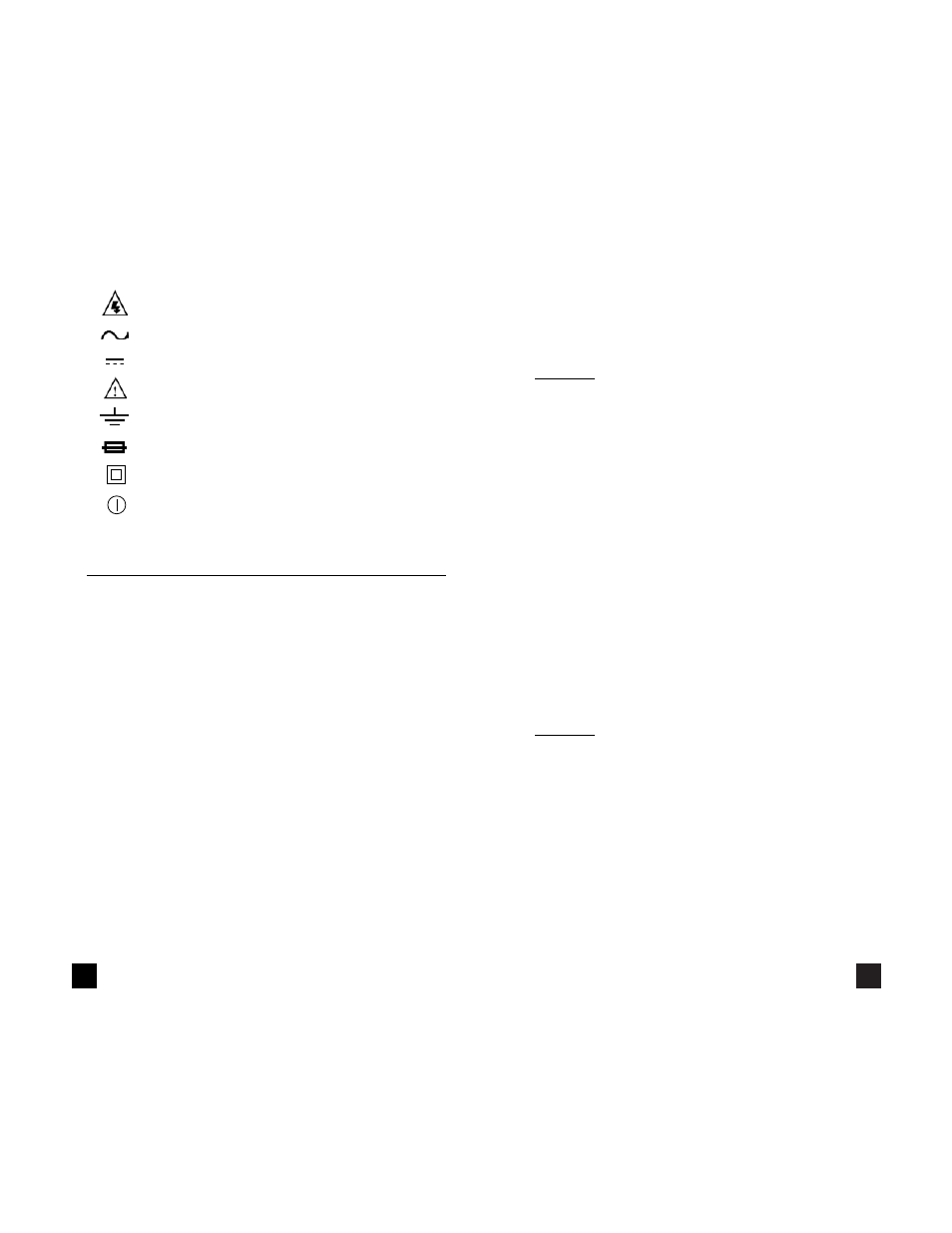

INTERNATIONAL SYMBOLS
DANGEROUS VOLTAGE
AC (ALTERNATING CURRENT)
DC (DIRECT CURRENT)
REFER TO INSTRUCTION MANUAL
GROUND
FUSE
DOUBLE INSULATION
ON/OFF, PUSH BUTTON SWITCH
C. TECHNICAL DATA
1. Features and Benefits
Agency Approval Meets CE and IEC 1010 requirements.
Record Records Min/Max values.
Range Allows you to either manual range or
use auto range to select the appropri-
ate range.
Auto Off Preserves battery life. LCD shows oFF
when in this mode. Automatically
powers down after 30 minutes of
inactivity.
3 Year Covered by a standard 3 year warranty.
Warranty
2. Product Applications
Perform the following tests and/or measurements
with the TPI 126 and the appropriate function:
HVAC/R
FUNCTION
DCmV
• Thermocouples in furnaces or gas
applications.
DCV • Thermocouples in furnaces of gas
applications. DC controlled circuits.
ACA • Heat anticipator current in thermostats.
ACV • Line voltage.
ACV or DCV • Control circuit voltage.
DCµA • Flame safeguard control current.
OHMS • Heating element resistance (continuity).
OHMS • Compressor winding resistance.
OHMS • Contactor and relay coil resistance.
OHMS • Continuity of wiring.
DCmV • Temperature with optional temperature
adapter (A301).
ELECTRICAL
FUNCTION
ACV
• Measure line voltage.
OHMS • Continuity of circuit breakers.
DCV • Voltage of direct drive DC motors.
