1. Controls and Functions: (cont.)

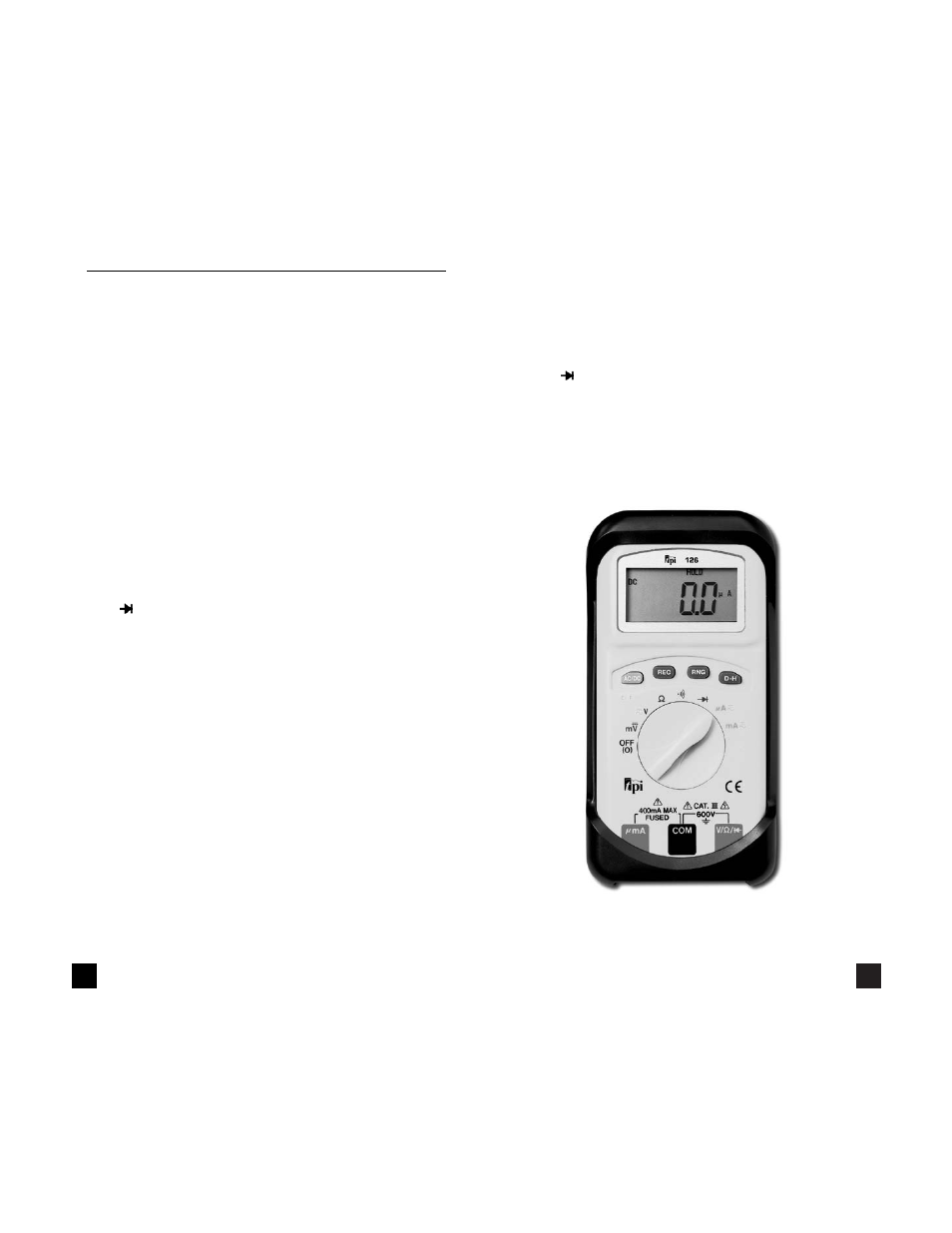

Input Jacks
µmA Red test lead connection for current
measurement on the µA and mA functions.
COM Black test lead connection for all functions.
V
Ω
Red test lead connection for all Volt, Ohm, Diode
and Continuity measurements.
D. MEASUREMENT TECHNIQUES
1. Controls and Functions:
Push Buttons
AC/DC Toggles between AC and DC volts.
REC Activates the Min/Max mode. Hold in for 3
seconds to deactivate.
RNG Activates manual ranging. Hold in for 3 seconds
to return to autorange.
D-H Activates the Data Hold function.
Rotary Switch
DCmV Used to measure millivolts DC
AC/DCV Used to measure AC and DC volts.
OHM Used to measure ohms (resistance).
Used for testing diodes.
Function for using audible continuity buzzer.
µA Used to measure AC and DC microamps.
mA Used to measure AC and DC milliamps.
V Function for measuring DC Volts.
V Function for measuring AC Volts.
