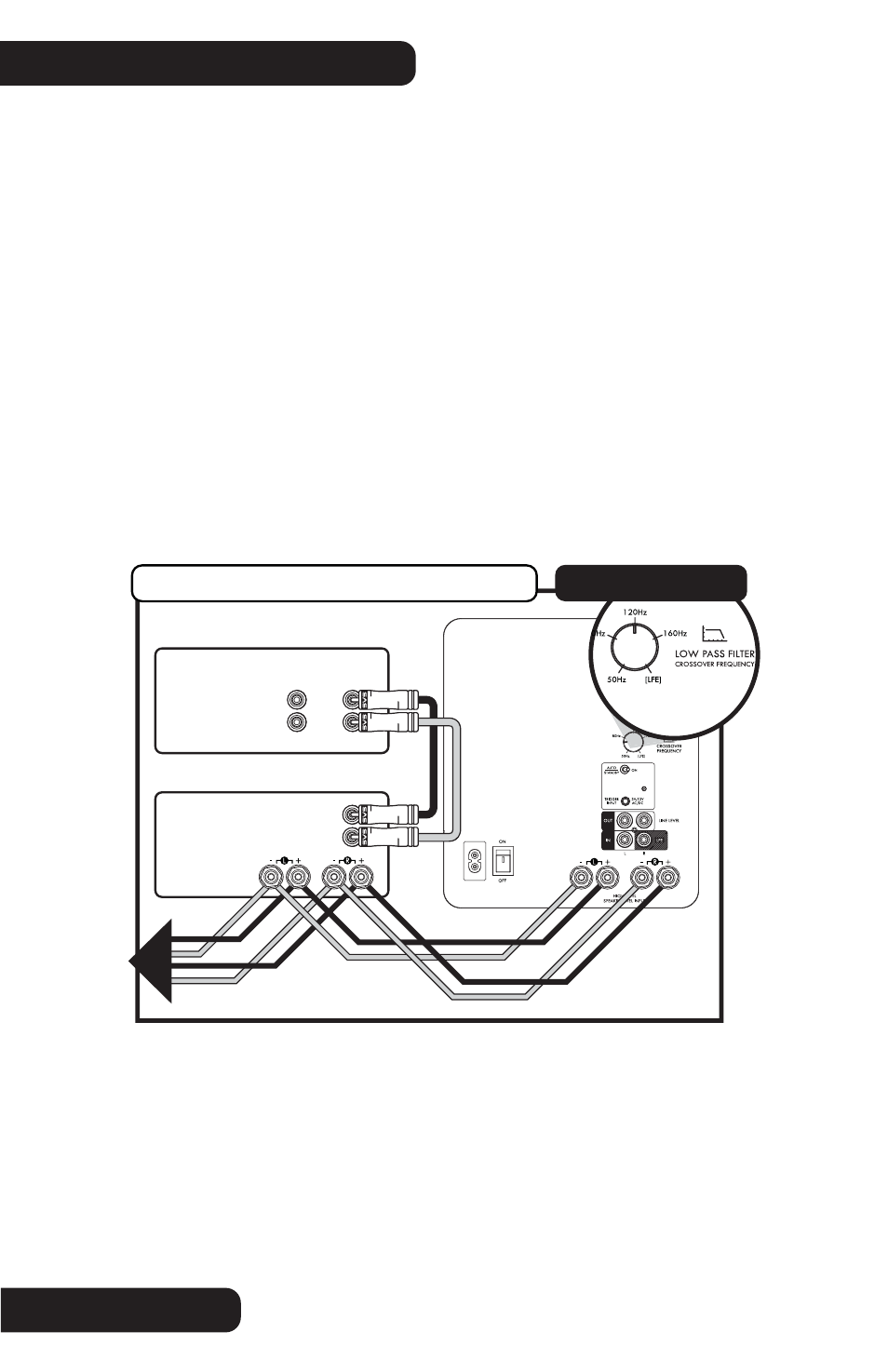

Multi-Channel/Stereo Applications – High Level (Speaker Level) Connection
This connection method is for multi-channel/stereo applications where the integrated
pre/pro/amplifier only has high level (i.e., speaker level) outputs.
• Using high quality speaker wire, connect the L/R speaker level outputs from the
integrated amplifier to both the loudspeakers and the subwoofer L/R speaker level inputs on
the subwoofer. This will require running two sets of wires from the outputs of the integrated
amplifier.
• Adjust the low pass filter to blend with the natural roll-off frequency of your
loudspeakers. The manufacturer’s rated bass extension for your loudspeakers is a good
starting point, but final blending is best done by ear.
• Adjust the gain to blend with the level of your loudspeakers.
• Adjust the phase control to obtain the most coherent and stable soundstage and
transition between the loudspeakers and the subwoofer.
REAR FRONT
LINE LEVEL
OUTPUTS
LINE LEVEL
INPUTS
SPEAKER LEVEL
OUTPUTS
R
L
R
L
TO
SPEAKERS
RECEIVER/PREAMP
POWER AMPLIFIER
PRE/PRO - SPEAKER LEVEL CONNECTION Adjust Subwoofer Low Pass Filter
To Blend With Loudspeakers
