Model TLA-50 Tube Leveling Amplifier 3

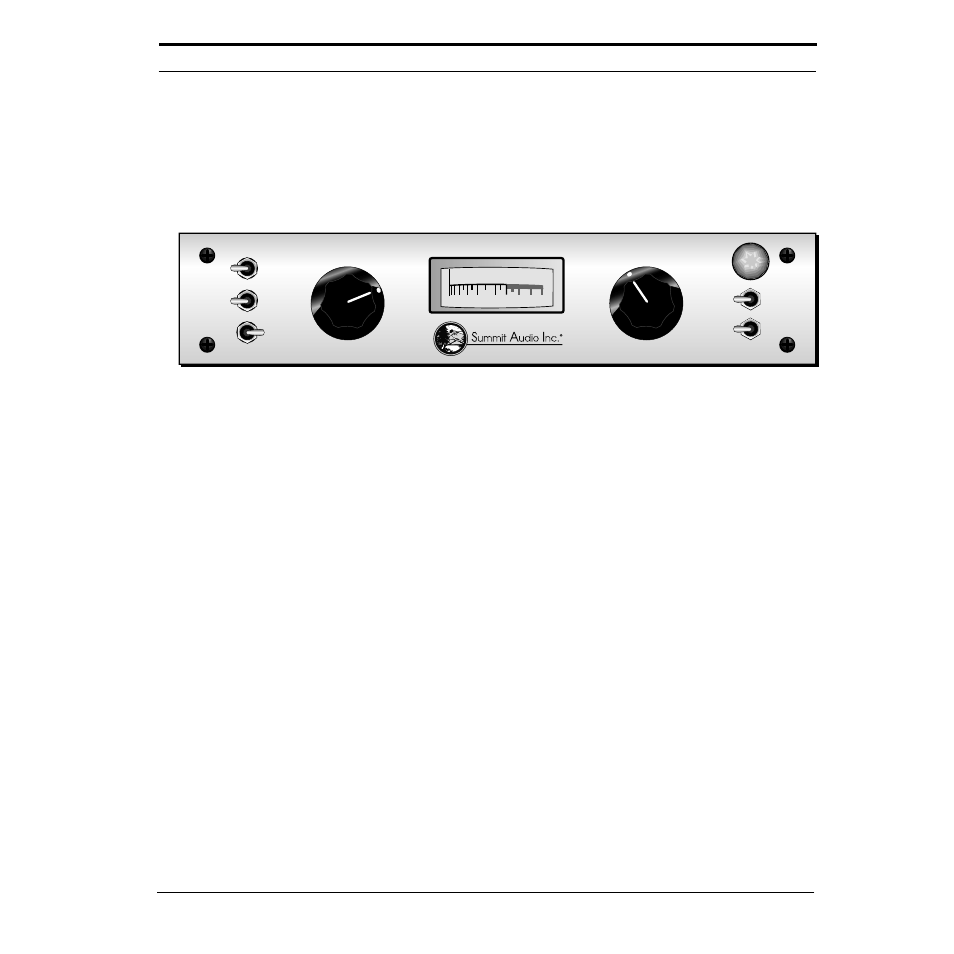

Front Panel
Front Panel
Attack Switch
A three-position switch with Fast , Medium and Slow settings
which control the time it takes the TLA-50 to respond to the
incoming signal,
Release Switch
This three-position switch controls the time it takes the
TLA-50 to return to unity again. As with the Attack Switch,
there are three settings:
Fast , Medium and Slow .
The release time setting is also controlled by the program
material. The slower the release time setting, the more the
program material determines and the release time.
Meter Switch
This control switches the front panel meter to monitor either
the output level or the amount of gain reduction taking place.
Gain
This control sets the overall gain of the TLA-50. It controls
the
Output Level which can be monitored on the front panel
meter.
