InfoStation 14-Bay U320 Installation Guide - Rev. B00 StorCase Technology, Inc.
Installation 3

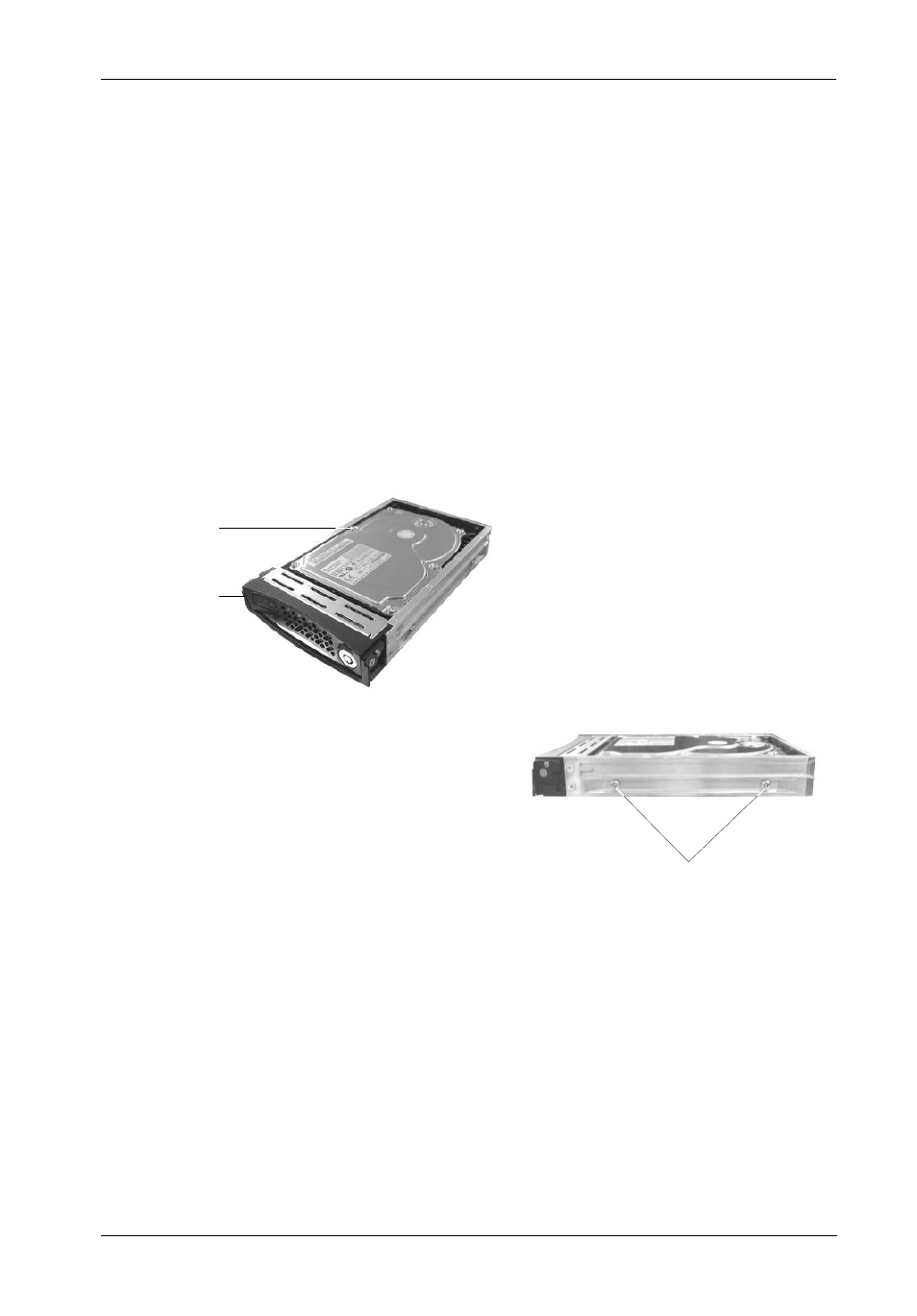

Figure 3: Drive Installation
Installing a Drive into the Drive Carrier
NOTES: A #2 Phillips screwdriver will be required for this procedure.
1. Install the drive(s) into the drive carrier(s). Drive(s) must be side-mounted into the
drive carrier(s) using #6-32 Phillips Pan Hd. screws (Figure 3).
2. After the drive(s) have been installed in to the drive carrier(s), carefully insert the
carrier(s) back into the chassis (refer to section "Inserting a Drive into the Chassis"
for further information).
#6-32 Phillips
Pan Hd. Screw
(2 on each Side)
IFS14_9
Drive
Carrier
Ultra320 Drive
(Not Included)
IFS14_04
