InfoStation 14-Bay U320 Installation Guide - Rev. B00

StorCase Technology, Inc.

Installation

7

Removing/Installing the Fan Module

CAUTION:

The fan module contains NO USER SERVICEABLE PARTS inside the unit.

Warranty is VOID if module is opened. Refer ALL servicing to qualified service

personnel!

This unit has more than one power supply cord. Disconnect two power supply

cords before servicing to avoid electric shock.

NOTES:

The fan module is hot-swappable. The chassis may remain on when removing

and installing the module.

Blank plate (provided) must be installed if module slot is left empty. Installation

of the blank plate is necessary for proper cooling inside chassis.

A #2 Phillips screwdriver will be required for this procedure.

1.

Loosen the two (2) captive screws securing the fan module to the InfoStation

chassis (Figure 5).

3.

Remove the fan module by grasping module and pulling out from chassis.

4.

To reinstall fan module, simply reverse above mentioned steps.

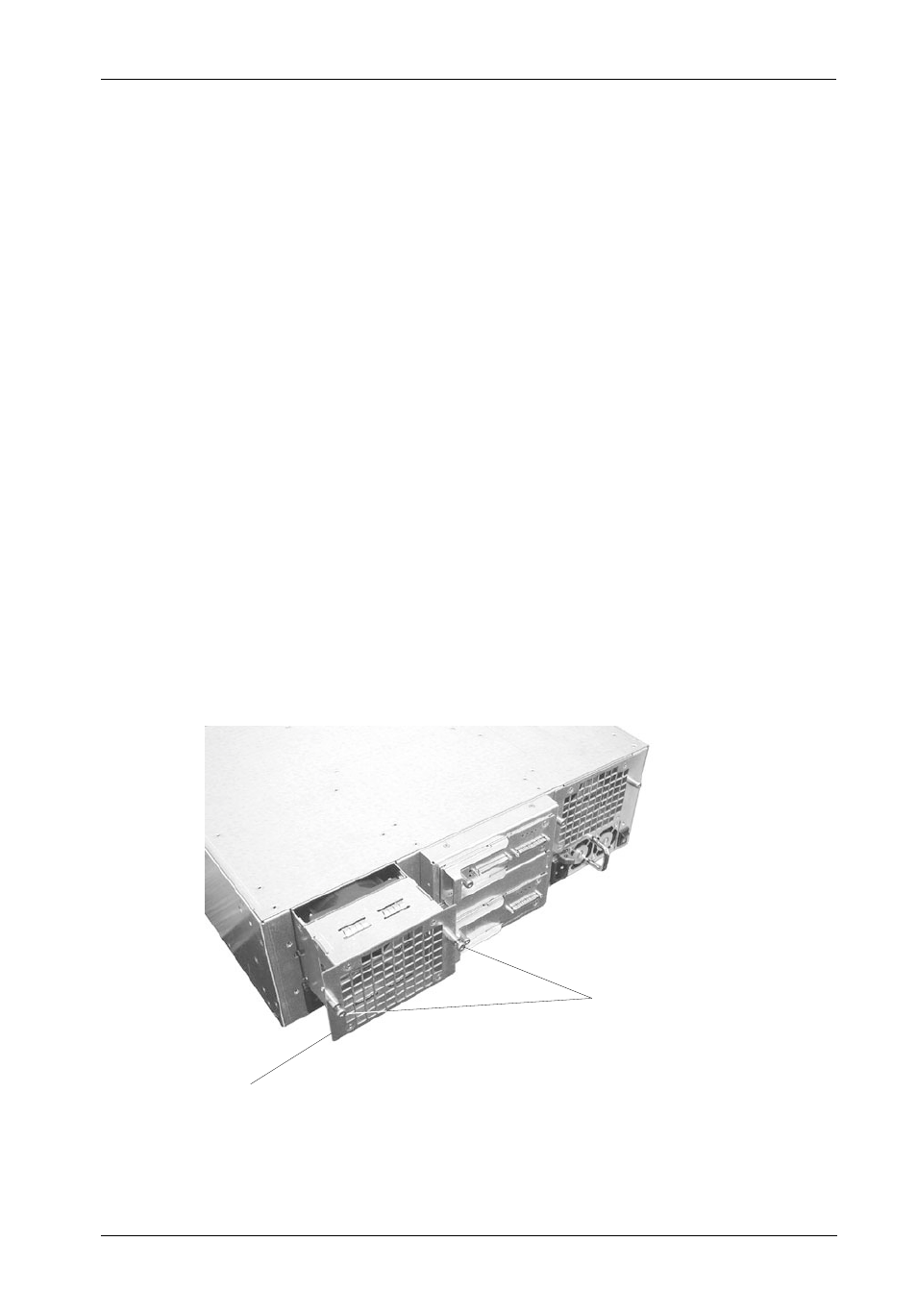

Figure 5: Removing/Installing the Fan Module

Captive Screws

(2 Total)

Fan

Module
