Front Panel
(Figure 2)
• LED Indicator and Control Panel - LED panel displays system statuses, alarms, and
warnings. Refer to section "InfoStation User Interface" for further information.
• SCA Drive Carrier(s) - Accommodate up to fourteen (14) 3.5" low-profile Fibre Channel
devices. Backplane design with direct-connect SCA connectors eliminates cable
connections to FC drives, increases data integrity, and supports drive hot swappability.
• Drive Carrier LED(s) - Provides the following information:
Drive Ready - Indicates that the drive is properly installed and ready for
access.
Drive Activity - Indicates that the drive is being accessed.
Drive Fault - Indicates a drive failure.
• Key Lock(s) - Assure proper seating of the drive carrier within the chassis and prevent
unauthorized removal or installation of the carrier.
NOTE: The key lock is only to prevent unauthorized removal or installation of the
drive carrier. Locking the key lock is not requried for drive carrier
operation.
• Chassis Handle(s) - Provide a sturdy grip for the installation and removal of the rack-
mount chassis.

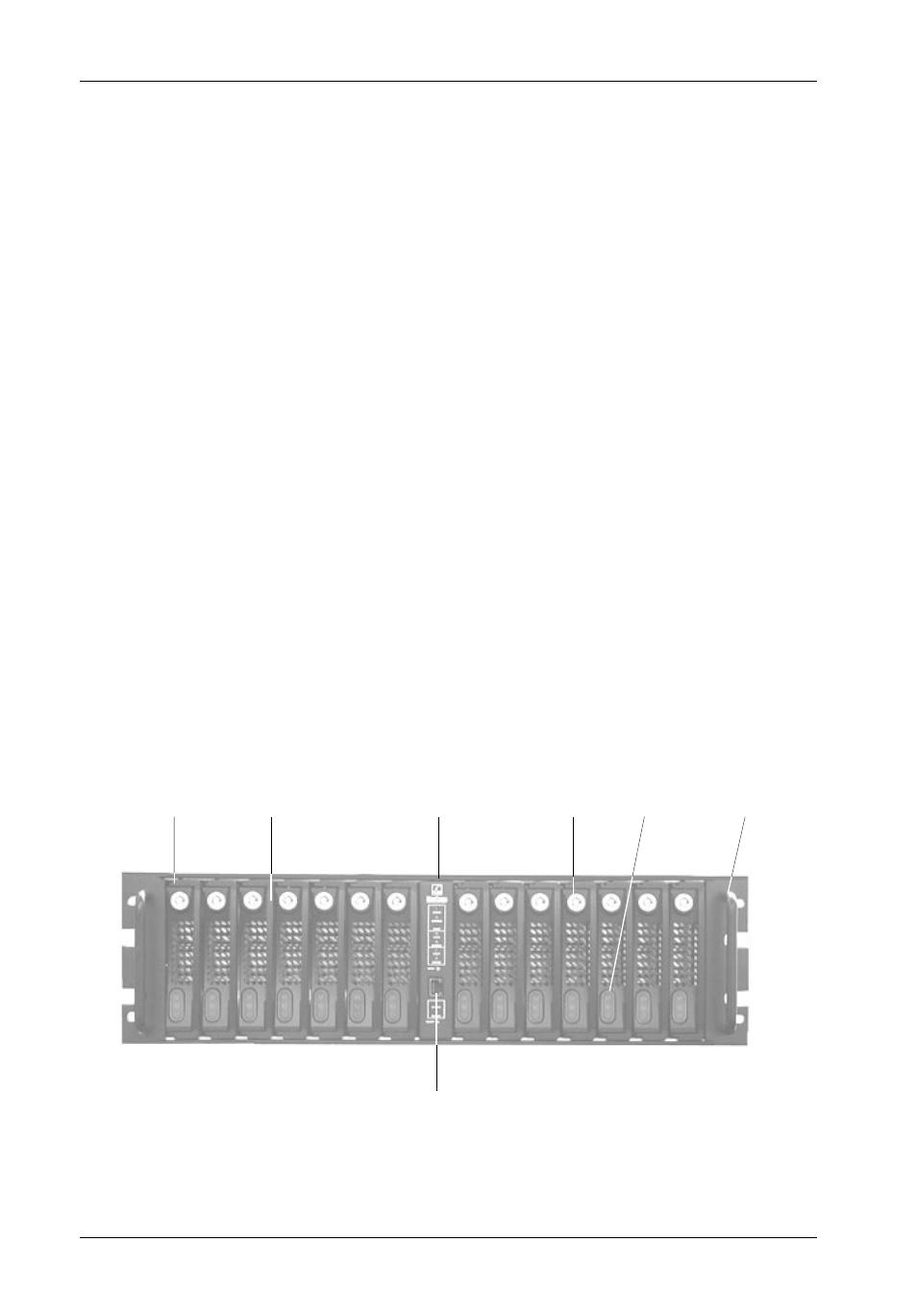

Figure 2: InfoStation Front Panel
Chassis
Handle
SCA Drive
Carrier
Drive Carrier
Handle
Key
Lock
Drive Carrier
LEDs
LED Indicator and
Control Panel
14FC_02
RS-232
Serial Port
