StorCase Technology S20A133 User Manual
Page 12
S20A133 User's Guide - Rev. A02
StorCase Technology, Inc.
Introduction
5

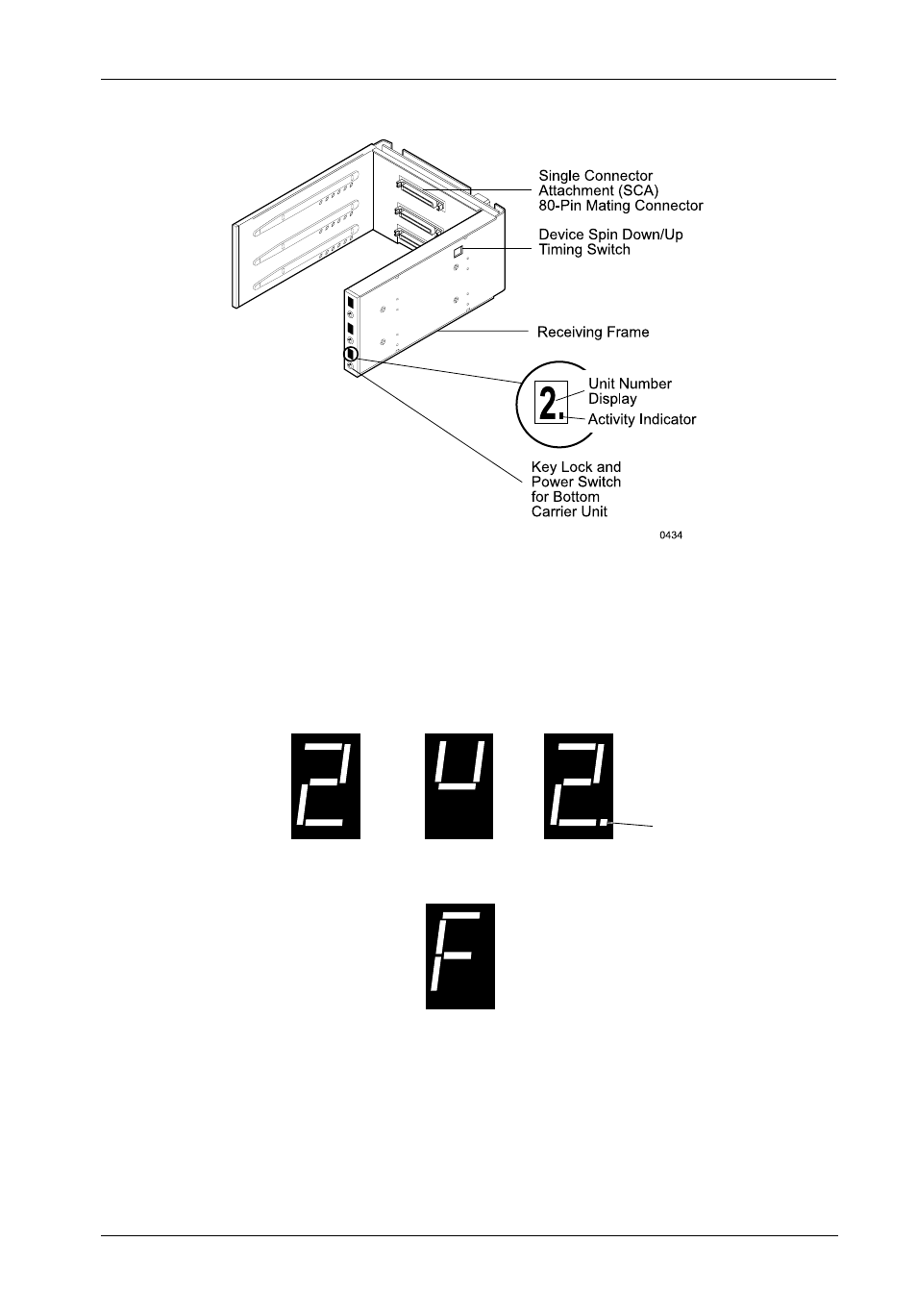

Figure 3: Receiving Frame Front Panel
Figure 4: Receiving Frame Unit ID Number and Activity Display
Carrier Installed
(unlocked)
Carrier Installed
(locked)
Carrier Removed
from Receiving Frame
The number "2" shown above is for illustration purposes only. It can be any valid
unit ID number. The letter "u" and F will appear as illustrated.
0064d
Activity
Indicator
Blower Failure
