Installation 11
DE200i-SWCU2 User's Guide - Rev. A01 StorCase Technology, Inc.

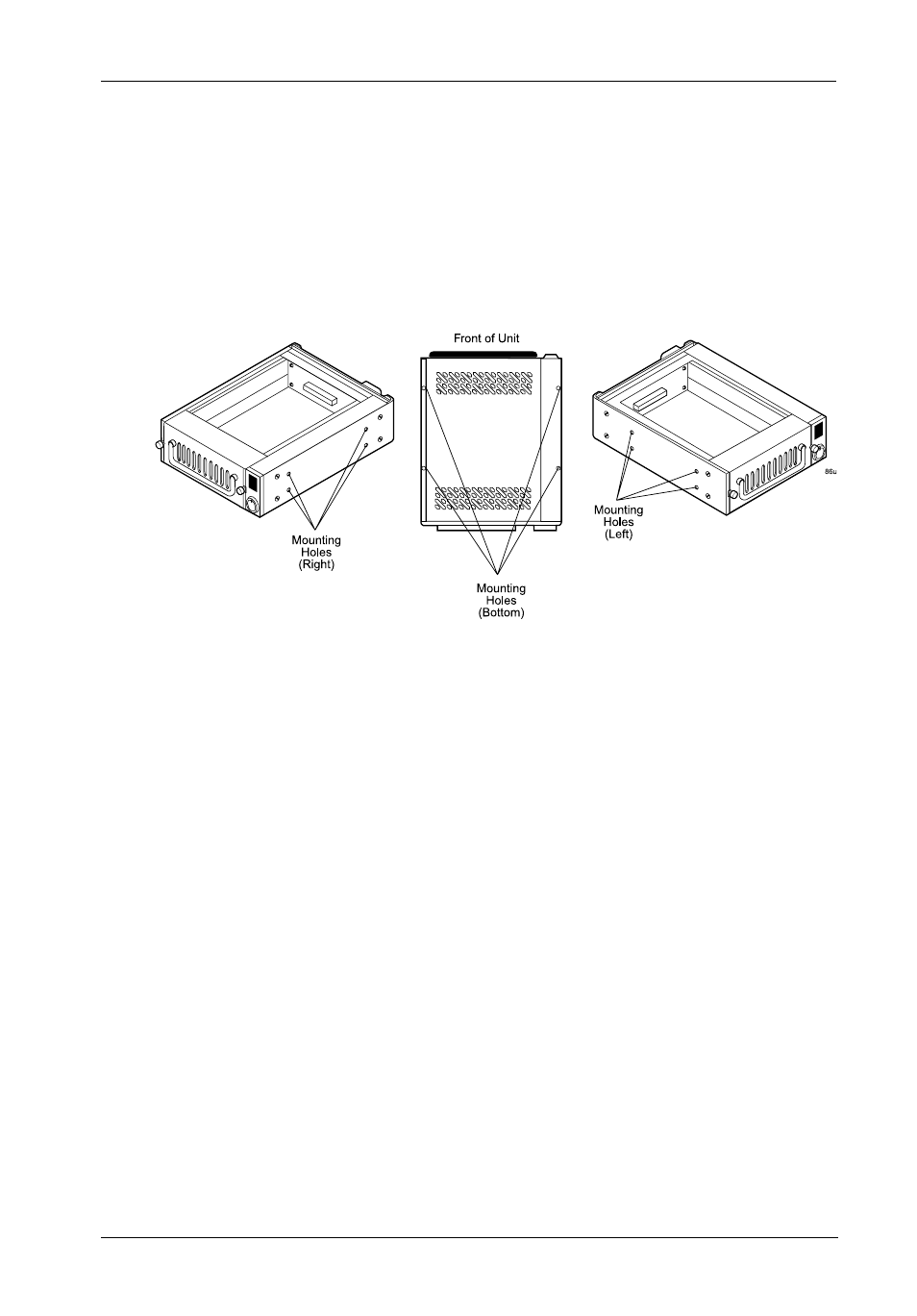

Figure 8: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out on
the receiving frame guides. The position of adjoining peripheral units may require
adjustment.
6. To connect the drive to a remote activity LED in the computer system or ex-
pansion chassis, connect the appropriate cable(s) to option Pins 9 & 10 on the
receiving frame motherboard as shown in Figure 5.
7. Connect the I/O cable from the host adapter to the receiving frame. The Pin 1
indicator on the cable must be properly aligned. Refer to Figure 5 for the correct
Pin 1 location.
NOTE: No onboard termination is provided on the DE200i-SWCU2.
External termination must be provided.
4. With the drive carrier locked into place inside the receiving frame, install the
DE200i-SWCU2 receiving frame into the drive bay in the computer or expansion
chassis. Use the appropriate guides to position the DE200i-SWCU2, and fasten
it into place with the four (4) #6-32 Phillips screws provided. Figure 8 illustrates
the location of the mounting holes. Mounting holes are provided on each side
and the bottom of the receiving frame to accommodate a variety of mounting
configurations. Use the mounting holes which best suit the computer or
expansion chassis configuration.
