Introduction 3
Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.
This User's Guide describes the steps required to install the StorCase Data Express Ultra320
DE100 removable enclosure inside of a computer peripheral bay or external chassis. This guide
supplements documentation provided with the host computer system, operating system, and
the drive to be installed within the carrier.

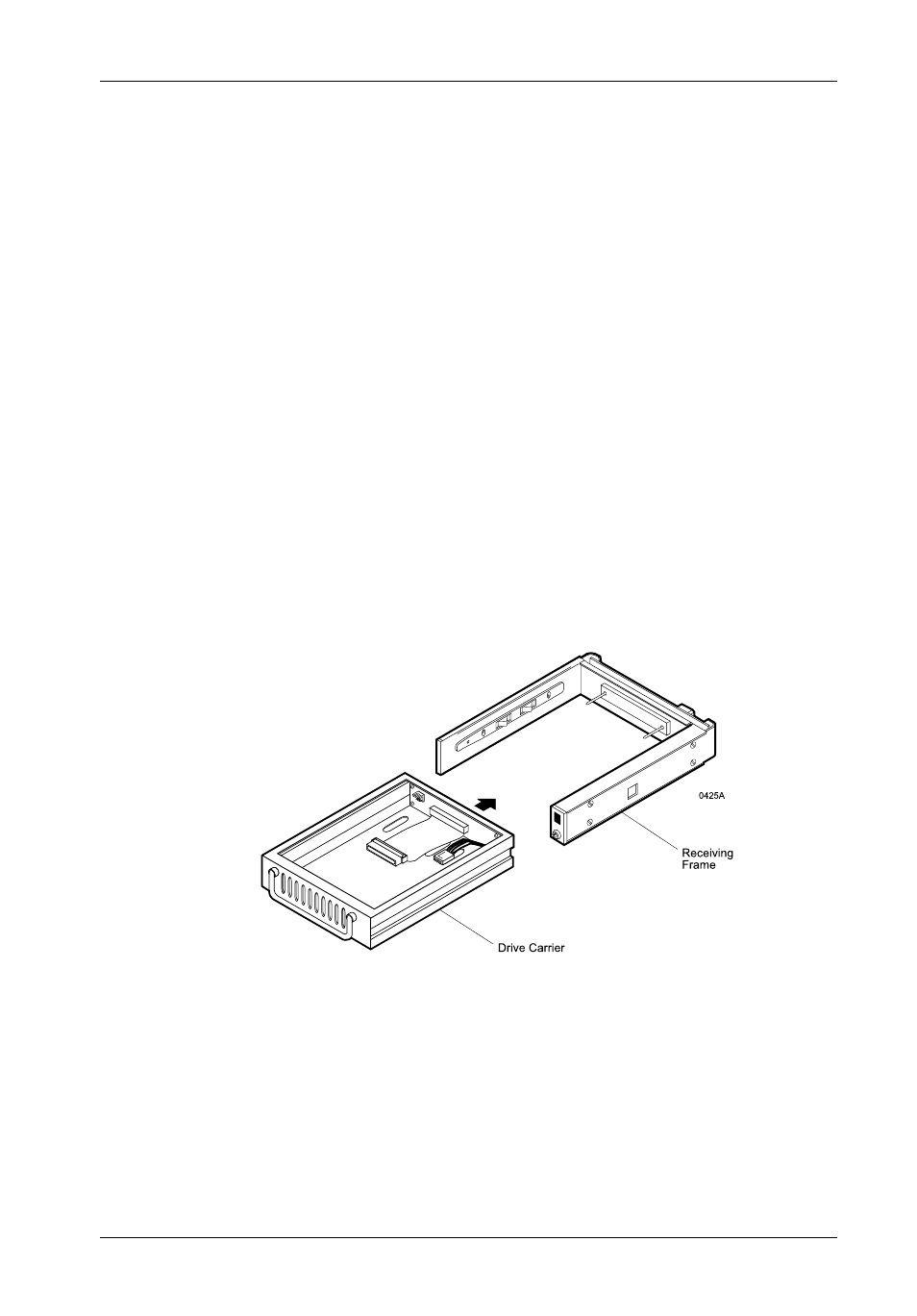

Figure 2: Ultra320 DE100 Receiving Frame and Carrier
General Description
NOTES: For SCSI Ultra320 operation, the Ultra320 DE100 requires Ultra320 drives, Ultra320
HBA, and Ultra320-compliant cabling (internal and external).
Ultra320 DE100 can support Ultra320 implementations with a maximum of fifteen (15)
Ultra320 drives (Ultra320 repeater may be required).
Ultra320 DE100 receiving frames are indicated by their BLUE LED, while the Ultra320
DE100 carriers are indicated by the Ultra320 logo.
The StorCase Technology Data Express ® Ultra320 DE100 is composed of a receiving frame
which supports SCSI Ultra320 (LVD) interfaces and fits within a 5.25" half-height peripheral
slot (Figure 2). This 16-bit I/O can support up to 320MByte/sec transfer rates. The receiving
frame contains one (1) removable drive carrier designed to provide durable and reliable
mounting for one (1) 3.5" form factor SCSI Wide, Wide Ultra, Wide Ultra2, Wide Ultra160, or
Wide Ultra320 drive.
The Ultra320 DE100 allows a drive to be removed and transported to another Ultra320 DE100-
equipped computer or expansion chassis, and also provides the ability to secure sensitive data
by removing and storing the drive safely for future use. Up to fifteen (15) Ultra320 DE100 units
can be attached to one host adapter.
