Installation 11
Installation
1. Attach the I/O cable on the drive carrier circuit board to the drive. Refer to Figure
7 for an illustration of the installation process.
2. Attach the 4-pin power cable on the drive carrier circuit board to the drive. If you
are installing only one drive carrier, skip to Step 4.
3. For Method 2 Users:
If a 3-pin Master/Slave select cable was fabricated as outlined in the previous
section, install it now between the appropriate drive pins and connector J3 on
the drive carrier circuit board. See Figure 6 for a typical AT/IDE drive connection.
Also refer to the documentation that accompanied the drive for more specific
information.
4. Carefully insert the drive into the drive carrier at an angle, cable-end first. Make
sure none of the cables are pinched. Lower the front of the drive carefully
into place. Fasten the drive into the carrier with four of the eight screws provided
as shown in Figure 7.
5. Install the provided drive cover.

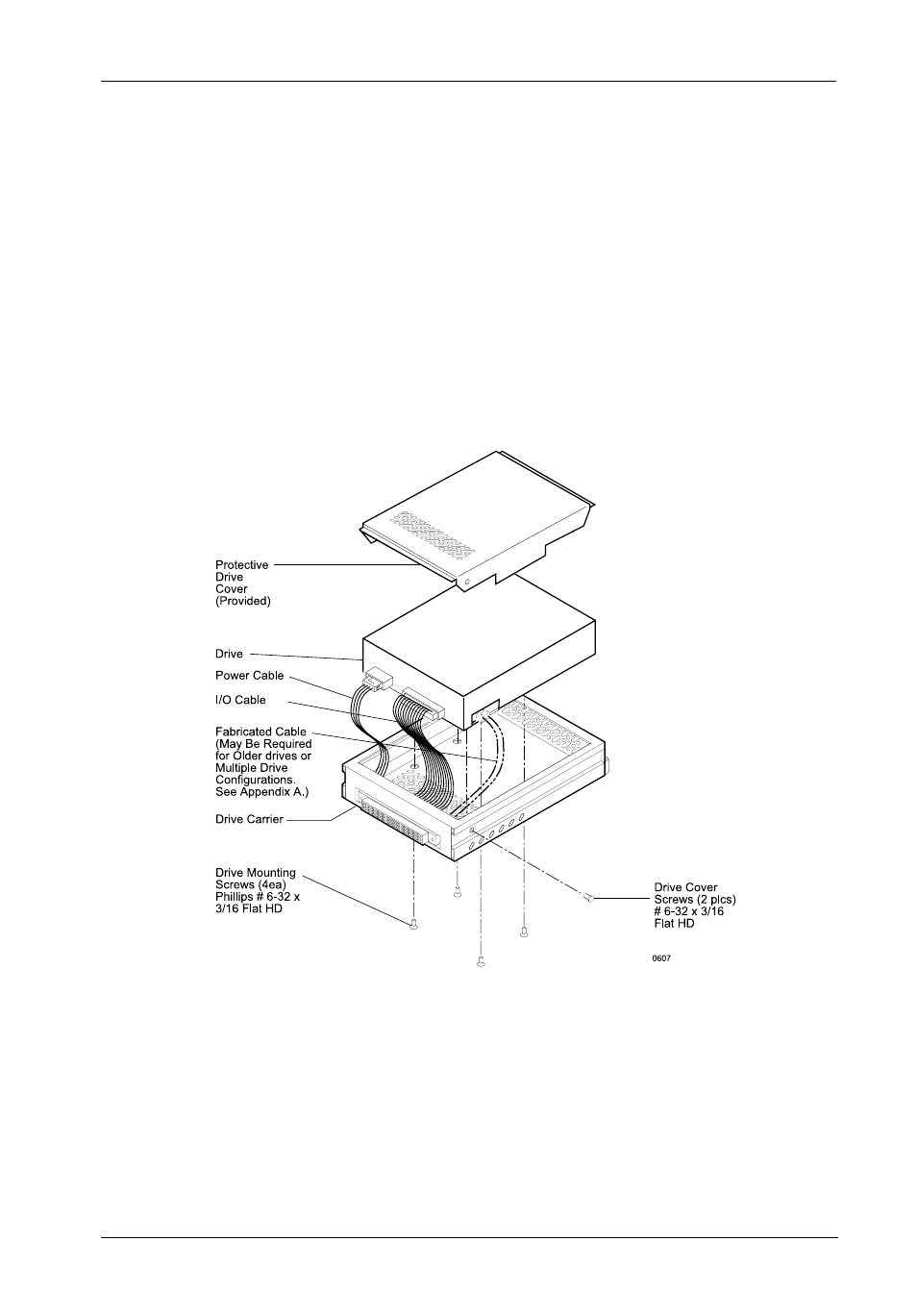

Figure 7: Drive Installation Assembly
