Speck Electronics X.Sum - Manual (Page 20)

PIN 2 PIN 2
PIN 3
PIN 3
PIN 4
PIN 4
PIN 5
PIN 5
PIN 6
PIN 6
PIN 6
PIN 6
PIN 8
PIN 8
Mix Out-A - Left Mix Out-A - Left
Mix Out-A - Right
Mix Out-A - Right
Common
Common
Sum In- Left Sum In- Left
Sum In - Right Sum In - Right
Common Common
PIN 1 PIN 1
For Breakout Box For Breakout Box For Link Cables For Link Cables
Mix Out-B - Left Mix Out-B - Left
Mix Out-B - Right
Mix Out-B - Right
Link Out - Left Link Out - Left
Link Out - Right
Link Out - Right
Common
Common
Link In- Left Link In- Left
Link In - Right Link In - Right
Common Common
Chapter 3 Operation Section 16
Output
Connectors
12 13
17
15 16
14
Figure 5. Pin-outs for Multi-purpose I/O connector
12. Mix Output Jacks
13. Multi-purpose
I/O Connector
These balanced 1/4" TRS phone type connectors are the left and right outputs
for the stereo mix bus. The signal present at these jacks is adjusted by the Mix
Master Control [5] on the front panel.
The configuration for the ¼" TRS Mix Output Jacks are as follows:
Tip = High (+)
Ring = Low (-)
Sleeve = Ground

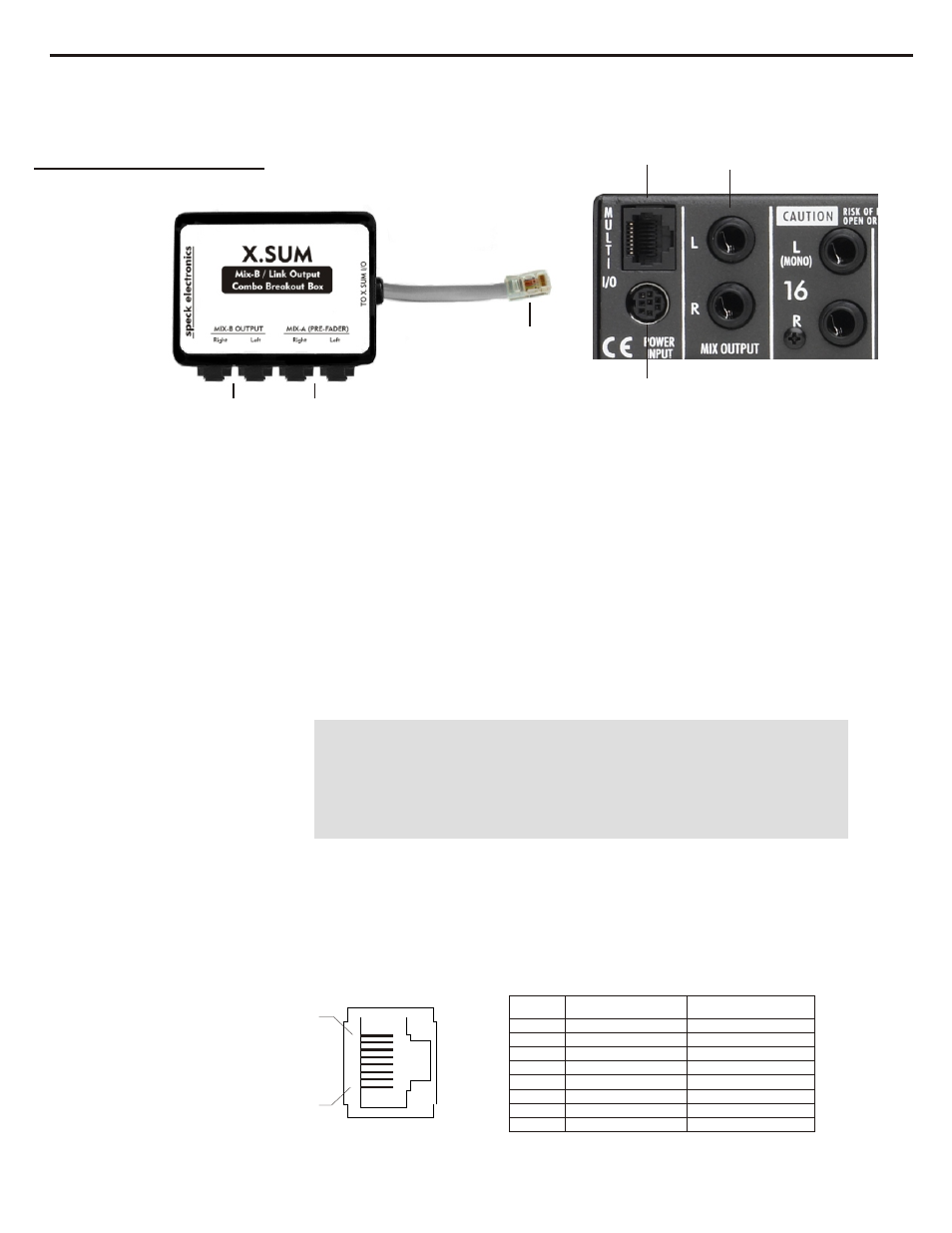

Figure 4. BB-03 combo breakout box
1
8
The multi-function I/O connector is used to connect the BB-03 Breakout Box
or link up to two additional X.Sum's.
The pin-outs for the multi-pupose I/O connector are shown below in Figure 5.
Note - All active-balanced output circuits of the X.Sum were designed for
balanced lines and should only be connected to balanced inputs. If
that is not possible and it is necessary to connect to an unbalanced
input, care must be taken not to connect the low (-) terminal to
ground. If the low (-) terminal of these outputs is connected to
ground, the result will be a high level of audio distortion.
