16
Fig. Part
No. No. Description
1. 66124 Housing Sleeve (Long)(800, 1100, 1500 RPM)
66193 Housing Sleeve (Short)(2200, 2800, 3400, 4300 RPM)
2. 66132 Pin
3. 65998 Bearing—Ball
4. 65995 End Plate—Lower
5. 65994 Cylinder (800, 1100, 1500, 2200, 2800, 3400 RPM)
66005 Cylinder (4300 RPM)
6. 65991 Rotor (6 Tooth)(2200 RPM)
65992 Rotor (8 Tooth)(800, 1100, 1500, 2800 RPM)
66084 Rotor (10 Tooth)(3400, 4300 RPM)
7. 66190 Vane (Set of 5)
8. 65997 End Plate—Upper
(800, 1100, 1500, 2200, 2800, 3400 RPM)
66004 End Plate—Upper (4300 RPM)
9. 10255 Bearing—Ball
10. 65999 Motor (6 Tooth) (2200 RPM)
66000 Motor (8 Tooth) (800, 1100, 1500, 2800 RPM)
66146 Motor (10 Tooth) (3400 RPM)
66085 Motor (10 Tooth) (4300 RPM)
11. 66220 Ass’y—Housing (Non-Reversing)
(800, 1100, 1500 RPM)
66219 Ass’y—Housing (Non-Reversing)
(2200, 2800, 3400, 4300 RPM)
12. 06099 Screw (2)*
13. 10299 Ball—Steel 1/4" Dia.
14. 21211 Spring
15. 66020 Plunger
16. 35235 Lever

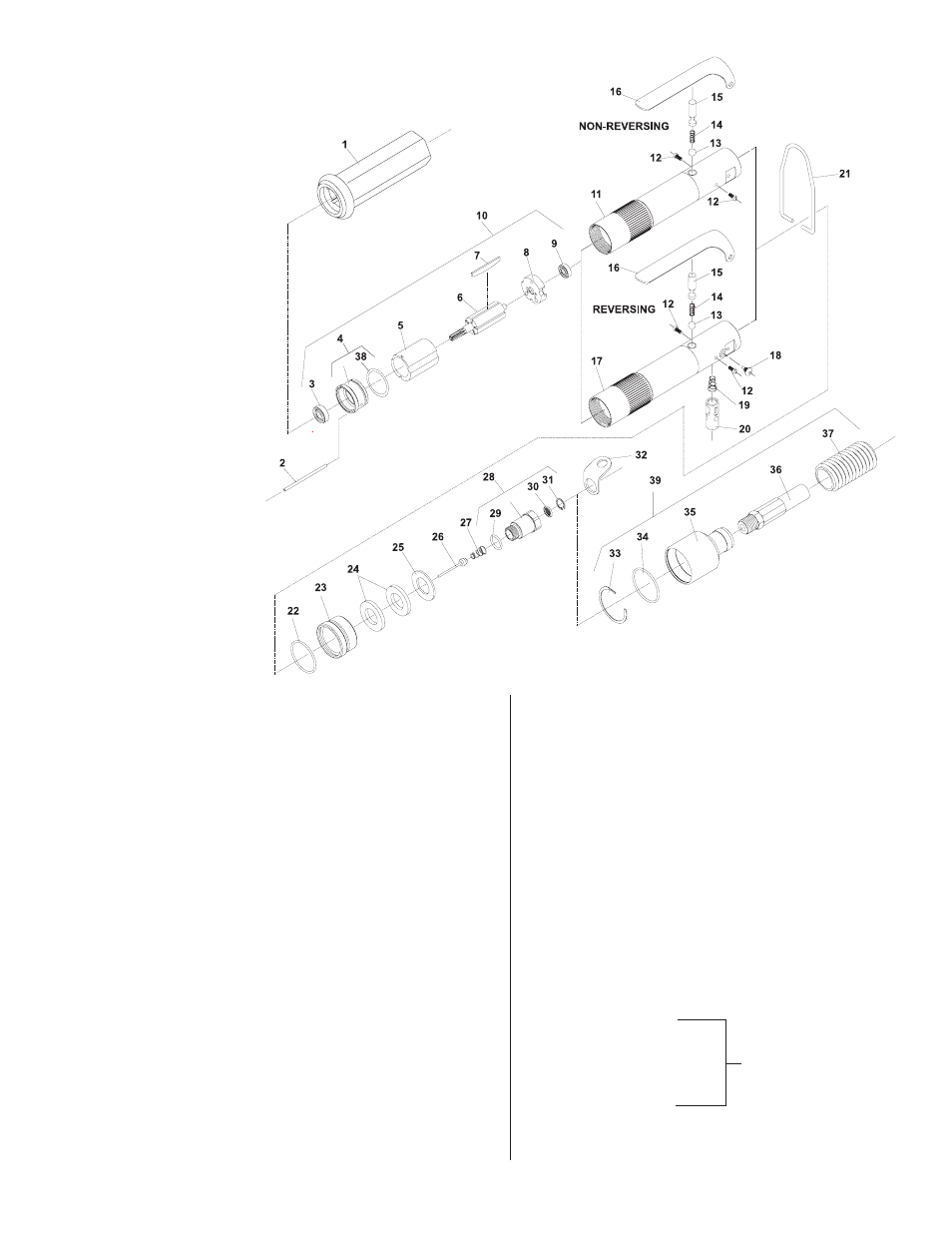

Housing And Motor
PARTS LIST FOR NO. 1 SERIES “1SM” LEVER TOOLS
(
SERIAL “C”
)
17. 66222 Ass’y—Housing (Reversing)(800, 1100, 1500 RPM)
(Includes Fig. 18)
66221 Ass’y—Housing (Reversing)
(2200, 2800, 3400, 4300 RPM)(Includes Fig. 18)
18. 66032 Retaining Screw
19. 21441 Spring
20. 66021 Valve
21. 66036 Bail
22. 04210 “O” Ring
23. 66018 Housing—Silencer
24. 66191 Washer—Felt (2)*
25. 66017 Screen—Diffuser
26. 66035 Ass’y—Valve
27. 21441 Spring
28. 66016 Inlet Adapter—1/4"NPT
66016Y Inlet Adapter—1/4"BSPT
29. 14312 “O” Ring
30. 30463 Screen**
31. 21541 Ring—Retaining**
32. 35196 Bail
33. 66034 Ring—Retaining
34. 14371 “O” Ring
35. 66033 Adapter—Exhaust
36. 1359 Hose—Air
37. 65723 Hose—Exhaust
38. 14391 “O” Ring”
39. 3302 Remote Exhaust Kit
** These parts can also be replaced by part no.
PGS1-11—screen.
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL,
AND MODEL NUMBER WHEN
ORDERING PARTS
Remote Exhaust
