SABER SMART
INSTALLATION
MANUAL

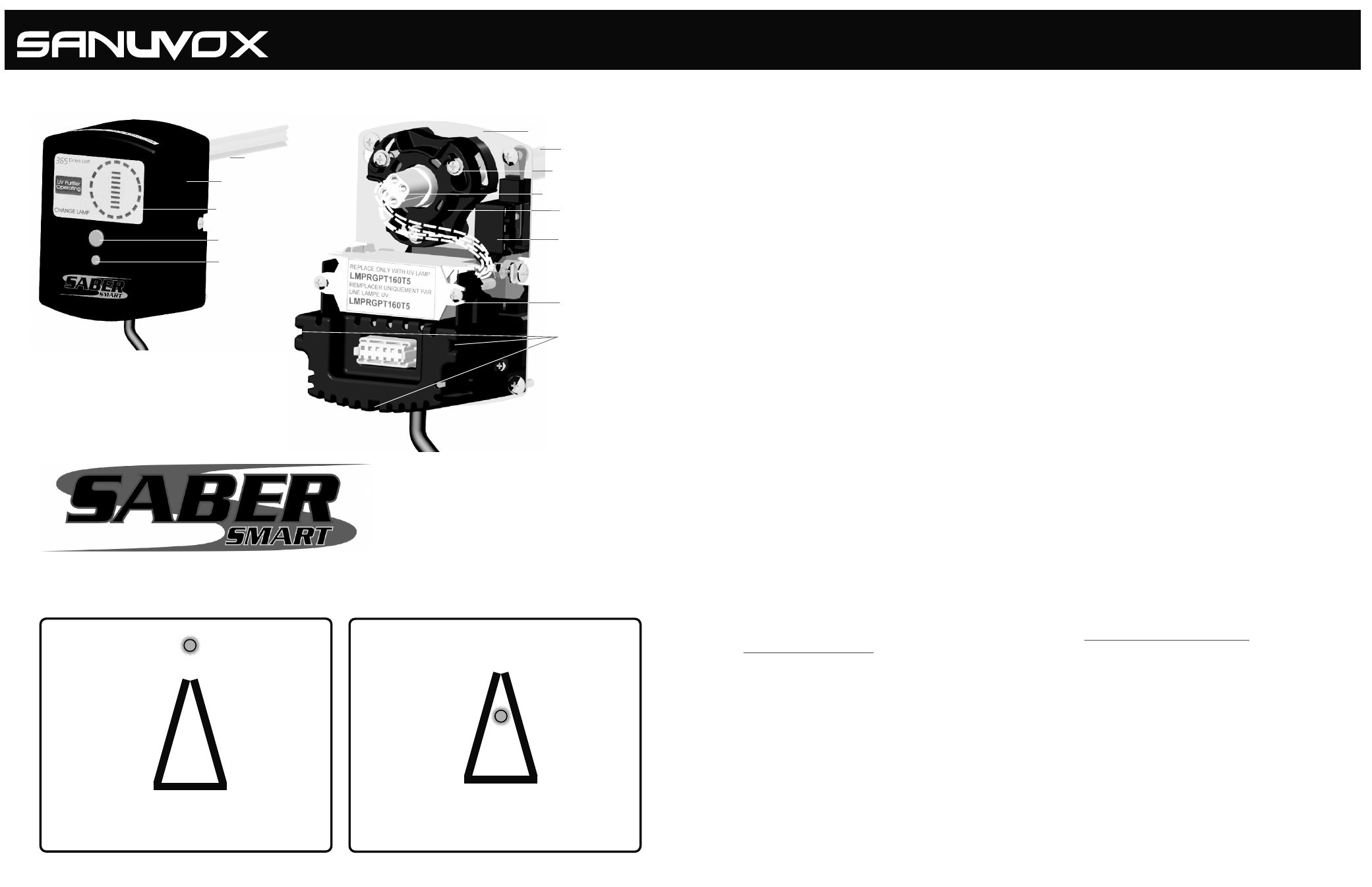

Figure B. Saber Smart
w/ Front Cover Removed
Back Plate
Safety Switch
Lamp Retaining Ring
Lamp Retaining Ring
Set Screws
White Ceramic Lamp Plug
Guides for
Front Cover
Ballast
SAFETY CONSIDERATIONS
Installation and servicing of air-conditioning equipment can be hazardous due to system pressure and electrical components. Only
trained and qualified service personnel should install, repair, or service air conditioning equipment. Untrained personnel can perform
basic maintenance functions such as changing lamps. Trained service personnel should perform all other operations. When working
on air conditioning equipment, observe precautions in the literature, tags and labels attached to the unit or accessory, and other
safety precautions that may apply. Follow all safety codes. Wear safety glasses and work gloves.
GENERAL
The ultraviolet object purifier is designed to kill odor causing bacteria, viruses, mold and fungus that may be transmitted through the
ducts of the HVAC (heating ventilation, and air conditioning) equipment. The ultraviolet purifier is installed so that the UV rays treat
the coil of the HVAC unit. It can be installed in the supply section inside the HVAC evaporator “A” coil facing into the HVAC
evaporator coil, or from the top of the coil, shining onto the coil. The purifier is simple and easy to install in an existing HVAC unit
and incorporates a quick release mechanism to clean or replace the lamp.
INSTALLATION
Location — The preferred location for installation of the purifier is inside of the HVAC evaporator coil or on the top of the HVAC
evaporator coil. Ultraviolet light may damage certain plastics and exposed non-UV-C (ultraviolet energy, C-Band) protected wires or
drain pan. If the purifier is installed in the supply plenum or over the evaporator coil, the drain pan (if plastic) should be protected
from any UV rays. Cover the exposed area with reflective material such as metal tape or aluminum foil. Ensure site can be supplied
with the necessary power receptacle and that there is adequate clearance for service. Wrap exposed plastic and wiring.
The purifier can be mounted in a horizontal or vertical position. More than one unit can be used if necessary.
Mount Purifier on Unit — Perform the following procedure to install the purifier:
1. Do not plug in purifier.
2. Evaluate the ideal area for locating and installing the purifier. Ensure that the purifier will fit into the
plenum. Space required internally is approximately 15 inches. If the drain pan is plastic, it must be
protected with a reflective material, such as metal tape or aluminum foil.
3. Ultraviolet light may damage certain plastics and exposed non-UV-C (ultraviolet energy, C-Band)
protected wires or drain pan. Wrap exposed plastic and wiring.
4. Remove the control box from its package. Remove the cover of the control box from the back plate by
loosening the screws on the sides of the box 1 to 2 turns. Then pull the backplate off by inserting finger
in the 3/4” diameter hole and pulling back.
5. Using the backplate as a template, mark off the four corner holes and the center of the lamp access
hole to be cut in the plenum.
6. Drill the four corner holes 1/8" diameter and drill a 1" hole in the center.
LAMP INSTALLATION (refer to Figure B.)
7. Secure the control box to the plenum using four sheet metal screws. NOTE: Safety switch needs to be
secured in top right corner.
8. Open the carton containing the lamp and remove the foam packaging.
9. Loosen the three screws around lamp retaining ring.
10. Turn ring to left and remove from back plate.
11. Insert the end of the lamp with the 4 pins through the side of the retaining ring where the rubber
grommet is visible.
12. Seat lamp firmly into the retaining ring. Lamp will not move.
13. Insert lamp through the hole in back plate and then into the plenum.
14. Push retainer ring back onto 3 set screws and turn to right to lock lamp in place.
15. Tighten the 3 screws on retaining ring.
16. Connect the ceramic white plug onto the lamp pins. The plug is designed so that it can only be installed one way. If the pins
are not lined up with the holes, rotate the socket 90 degrees.
17. Replace cover by lining up the three guides in control box cover and slide into place. Tighten the two
screws on the sides.
18. The purifier can now be plugged into a standard110-volt receptacle.
UVC Lamp
Evaporator Coil*
UV exposure is dangerous to eyes, skin and
exposed plastics and rubber. *NOTE:
Sample Installations Sample Installations
Evaporator Coil*
UV exposure is dangerous to eyes, skin and
exposed plastics and rubber. *NOTE:
Figure A. Saber Smart
Front Cover
UVC Lamp
3” LCD Display
Power Button
Reset Button
