QUATTRO
INSTALLATION
MANUAL
Congratulations on the purchase & installation of your new Sanuvox Ultraviolet Air Purifier. Sanuvox UV Air Purifiers are the most
advanced Air Purification System available having been proven to destroy up to 99.999% of biological & chemical contaminants that
circulate throughout your home or facility. Sanuvox Systems have been tested by The EPA (Environmental Protection Agency), The
National Homeland Security Research Center, Medical Universities and Independent 3rd Party Laboratories.

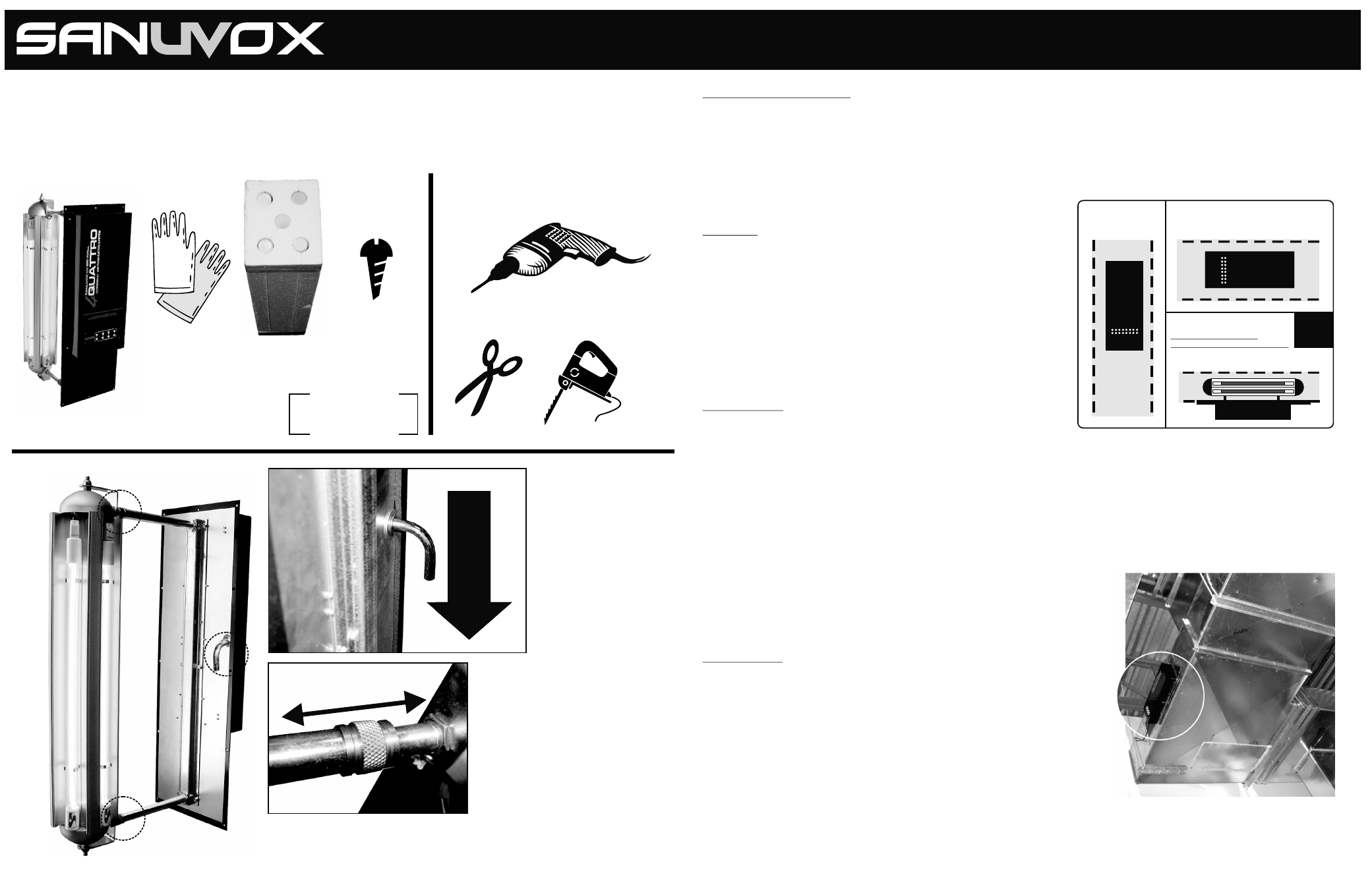

(1) x Pair of Gloves (4) x 18” Straight UV Lamps
packaged in styrofoam
(12) x Sheet Metal Screws
TOOLS REQUIRED
Drill
Pair of Snips or saw
THIS BOX CONTAINS
SAFETY CONSIDERATIONS
Installation and servicing of air-conditioning equipment can be hazardous due to system pressure and electrical components.
Only trained and qualifies service personnel should install, repair or service air conditioning equipment.
Untrained personnel can perform basic maintenance functions such as changing Lamps. All other operations should be
performed by trained service personnel. When working on air-conditioning equipment, observe precautions in the literature,
tags, labels attached to the unit or accessory, and other safety precautions that may apply.
Follow all safety codes. Wear Safety glasses and work gloves.
GENERAL
The Sanuvox QUATTRO residential / commercial Ultraviolet Air Purifier is
designed to destroy biological and *chemical (*GX models) contaminants
such as mold, bacteria, viruses, *chemicals, *VOCS and *odors that may
be transmitted through the HVAC ventilation system.
The Sanuvox QUATTRO is installed in the RETURN (preferred) or
SUPPLY plenum of the HVAC equipment treating 100% of the air flowing
through the air-stream. The actual percentage destruction is based on the
duct size, percentage of fresh air, velocity and the specific contaminants
to be treated. Depending on the variables above, more than one
QUATTRO may be required for commercial applications.
INSTALLATION
IMPORTANT: The QUATTRO is energized from a pressure differential caused by
airflow through the duct. On variable speed fan applications, airflow at LOW setting
may not be sufficient to energize the air purifier. The vacuum switch is factory set to a differential of 0.03 in. Insure that there is sufficient
differential to activate the switch. As well, take into account that the differential will decrease as the air filter loads.
The QUATTRO must be installed in a vertical plain for the vacuum sensor to function properly. If the QUATTRO is to be installed in a
horizontal position (see Figure C.), or the differential is not sufficient, the vacuum sensor must be bypassed and the QUATTRO is to be wired
into the fan circuit.
Make sure the site can be supplied with the necessary power requirements. The QUATTRO has a power consumption of 160
watts and requires a 110/220V, 50-60 Hz power source. Ensure that there is adequate clearance for service. If a humidifier is
present, the air purifier should be installed in the air-stream before the humidifier (preferred). Any plastic components should be
shielded from direct UV exposure.
The suggested temperature range is 40 to 150°F. Operating the QUATTRO
outside this range will result in decreased performance. NOTE: The QUATTRO is
not weatherproof. If installing outdoors, the QUATTRO must be installed in a
watertight enclosure (please allow for adequate air circulation).
PREPARATION
(1) x QUATTRO
Literature Package
(1) x Lamp Date Decal
(1) x Warranty Card
A.
B.
B.
A. = Vacuum sensor elbow
B. = Adjustable Clutch
B.
A.
A
IR
F
L
O
W
Ex
ds As
mb
ten
se
ly
1. Turn off all power to the HVAC equipment.
2. Remove the QUATTRO from its packaging. Use caution as all Lamps
are fragile.
3. Ultraviolet light may damage plastic or exposed wiring (Sanuvox wire set
is Teflon coated which is resistant to UV exposure). If any plastic or
wiring is exposed to direct UV exposure, wrap exposed material(s) with
aluminum tape or metal conduit.
4. OPTIONAL: You may want to line the inside of the duct with reflective
material to increase UV effectiveness. Sheets of aluminum or aluminum
foil may be used.
5. The air sensor (vacuum sensor) is located inside the QUATTRO cover. The “elbow” tube mounted to the backplate
which “reads” the vacuum must be positioned in the same orientation as the airflow (see Figure A.).
Figure C.
Control Box Horizontal
facing the Floor or Ceiling the
Vacuum Sensor must be by-passed
Vertical
to the
Floor or Ceiling
OK!
QU
AT
TR
O
QUATTRO
Horizontal (on its side)
OK!
BYPASS
VACUUM
SENSOR
Control Box
