FEATURE LIST
2
OUTPUT OUTPUT
B
INPUT
A
INPUT A BUSS B BUSS
MIC PRE
DUO
5012
POWER
+ 12 VDC
+48V Phantom Power
For appropriate microphones
Warning! Mute output prior to
engaging/disengaging Phantom power
Phase Invert
Flips phase
180 degrees
Mute
Main Output Mute
(Meter & Buss feed stay active)
To Buss
Sends signal
To Buss output
High Pass Filter
Fully variable from
20Hz to 250Hz
Mic Gain
Precision gain switch
(0 to +66dB in 6dB steps)
Level Meter
-30 dBu to +22 dBu
With reference to the output

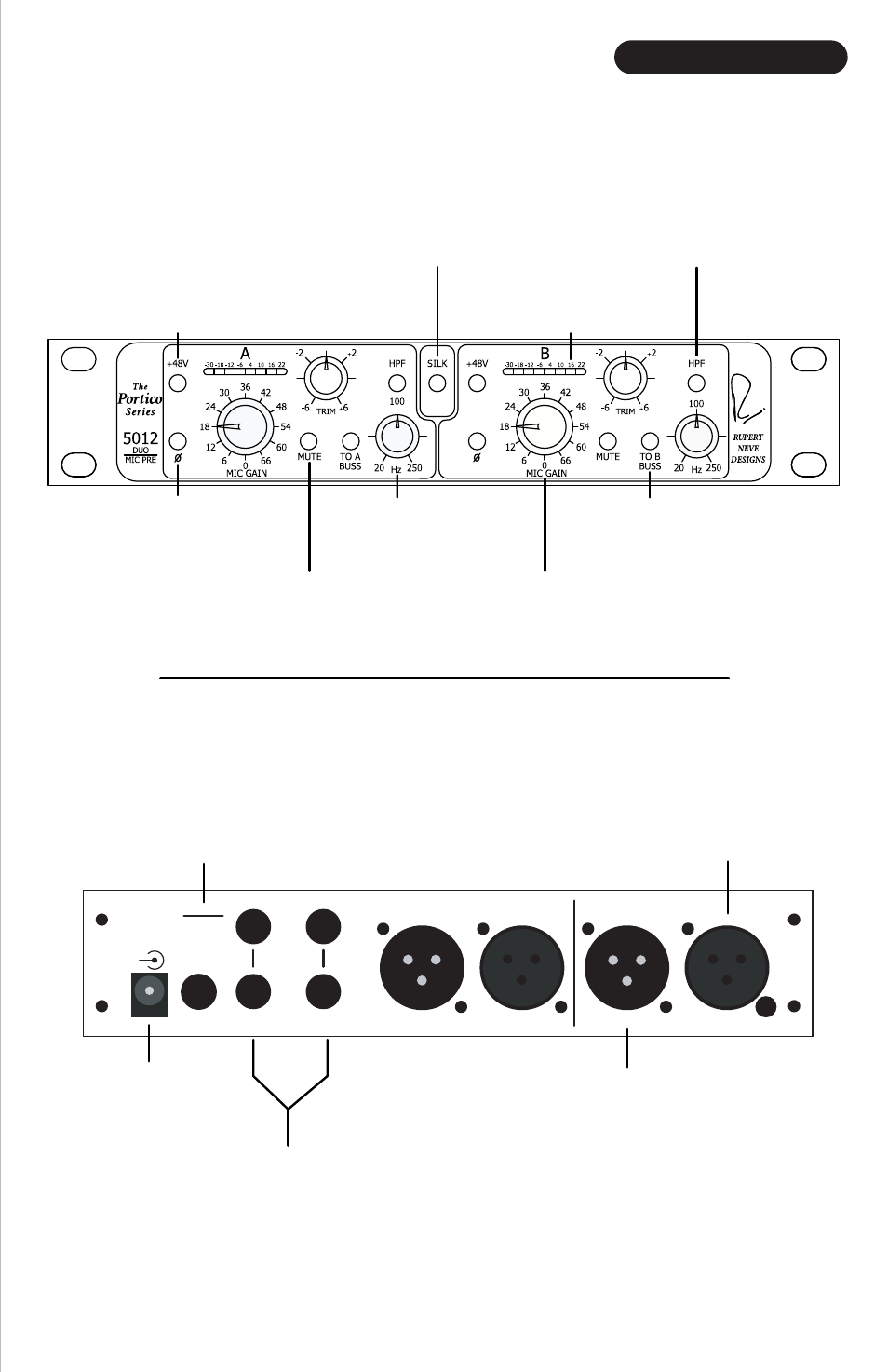

5012 Duo Mic Pre - Front Panel
5012 Duo Mic Pre - Back Panel
DC input jack
2.1 x 5.5 x 9.5mm
Center Positive
SILK
Reduces negative feedback and
adjusts the frequency spectrum
to provide a very sweet
and musical performance.
High Pass Filter
Bypass / Engage
Power Switch
Disconnects supply
from internal power converters
Portico
TM
Bussing System
Connect as many units together as you'd
like to create your own mixes using
optional bussing modules
Top and bottom rows are normalled
together to allow for an IN / OUT / THRU
configuration
Output
Transformer coupled
Fully balanced and floating
1 = GND 2 = HOT 3 = COLD
Input
TLA Fully Balanced Input
1 = GND 2 = HOT 3 = COLD
