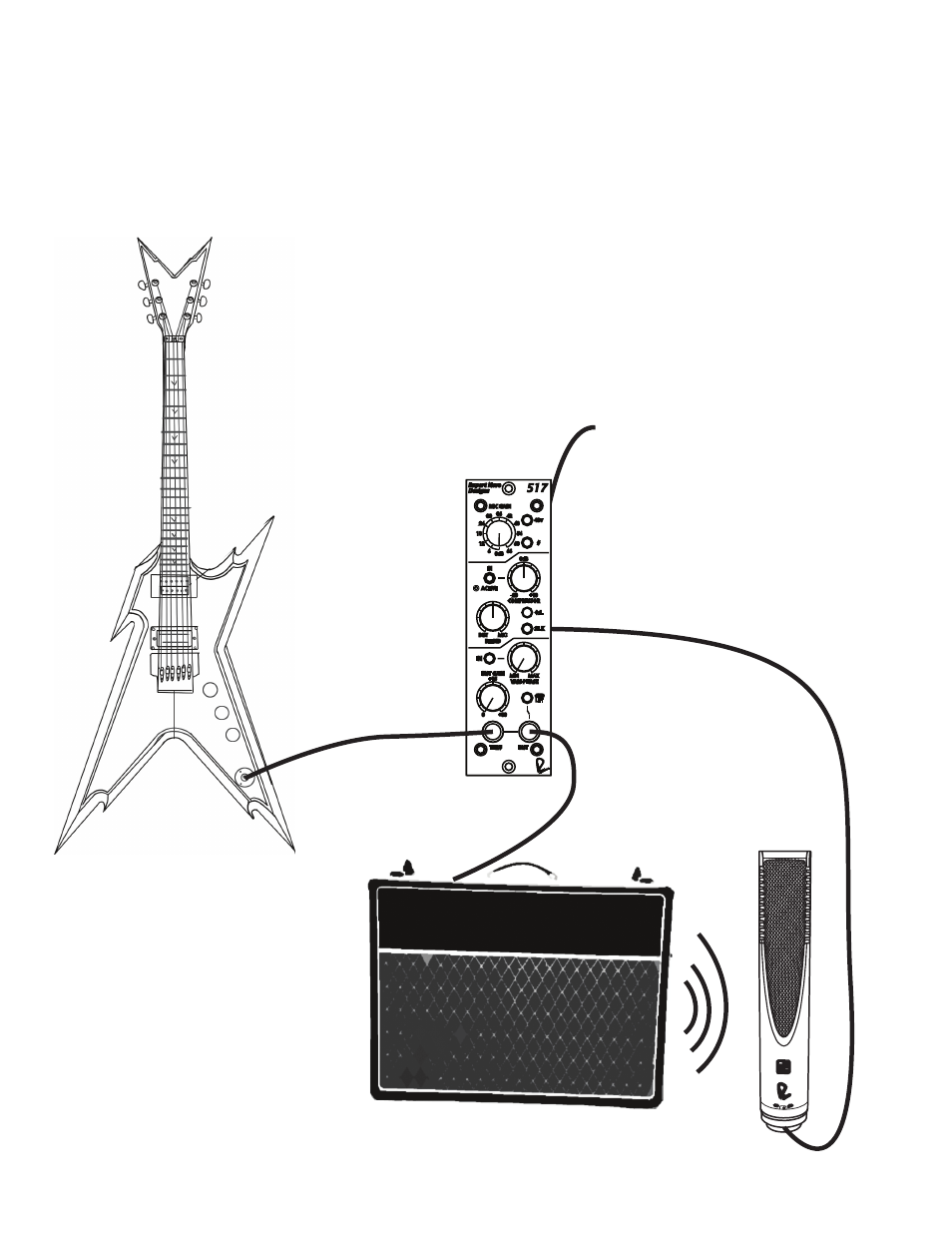

Amplified Instrument Use with Blended DI and Mic Signals
When used for instruments, the 517 can be used to phase align,
combine and compress direct and miced instrument signals. To
achieve this, use the DI for the instrument’s direct signal and the mic
preamp for the speaker cabinet signal. Connect the external ampli-
fier to the passive DI thru on the 517 faceplate. The blend control is
used for mixing direct and amplified signals to achieve the desired
tonality of the two sources, and the variphase is used to minimize or
extenuate phase cancellations between the two signals. To compress
the blended signal, simply engage the compresor and adjust the
conpressor threshold dial as desired. This technique could also be
used to create a single, mixed output of a guitar and vocals, or any
other pairing of microphone and instrument signals.
