Portico 517: 500 Series DI / Pre / Compressor User Guide
Thank you for your purchase of the 517: 500 Series DI / Pre / Compressor. Everyone at Rupert Neve De-
signs hope you enjoy using this tool as much as we have enjoyed designing and building it. Please take
note of the following list of safety concerns and power requirements before the use of this or any Portico
Series product.
Safety
It’s usual to provide a list of “do’s and don’ts” under this heading but mostly these amount to common
sense issues. However here are some reminders:
Don’t operate your Portico™ module in or around water! Electronic equipment and liquids are not good
friends. If any liquid is spilled such as soda, coffee, alcoholic or other drink, the sugars and acids will
have a very detrimental effect. Sugar crystals act like little rectifiers and can produce noise (crackles,
etc.). SWITCH OFF IMMEDIATELY because once current starts to flow, the mixture hardens, can get very
hot (burnt toffee!) and cause permanent and costly damage. Please contact support as soon as possible
at [email protected] for resolution.
Don’t be tempted to operate a Portico module with the cover removed. The cover provides magnetic
screening from hum and R.F. stray fields.
Power Requirements
Each Portico 517 is fitted for use with standard 500 Series Rack Mounts and requires 110-125 mAmps
@+/- 16V

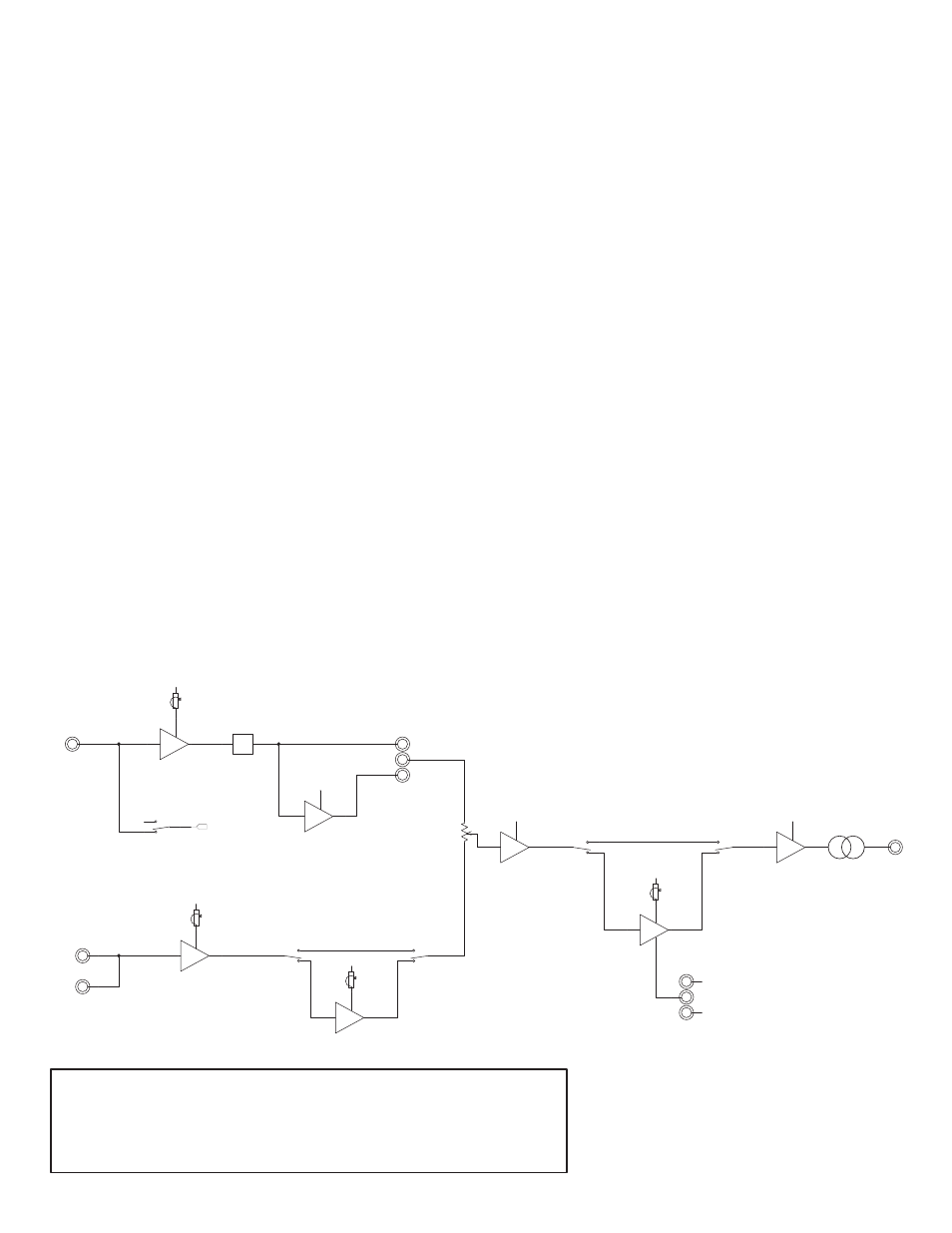

Portico 517: Block Diagram
COMPRESSOR
BLEND
MIC PRE
DI INPUT
OUTPUT STAGE
PHASE ROTATE
MIC PRE IN
INSTR INPUT
INSTR THRU-OUT
PHASE
0-180 DEG
HPF
0/180
0-30dB
0-66dB
6dB Steps
80Hz
INTERNAL JUMPER SETTINGS
PHANTOM
INTNL JMPR
GAIN/THRESH.
FAST
SLOW
TIME CONST.
OPTION A (FACTORY DEFAULT)
FAST - 5ms/50ms
OPTION B
SLOW - 250ms/500ms
COMPRESSOR TIME CONSTANT
OPTION A (FACTORY DEFAULT)
OUT
OPTION B
IN - 80Hz
HIGH PASS FILTER
INTNL JMPR
OUTPUT
TRANSFORMER
CW
+48V
