Datel 20A - Manual (Page 22)

DS-0493D 10/04
BOTTOM VIEW
–Input
Remote On/Off
+Input +Output
+Sense
Output Trim
–Sense
–Output

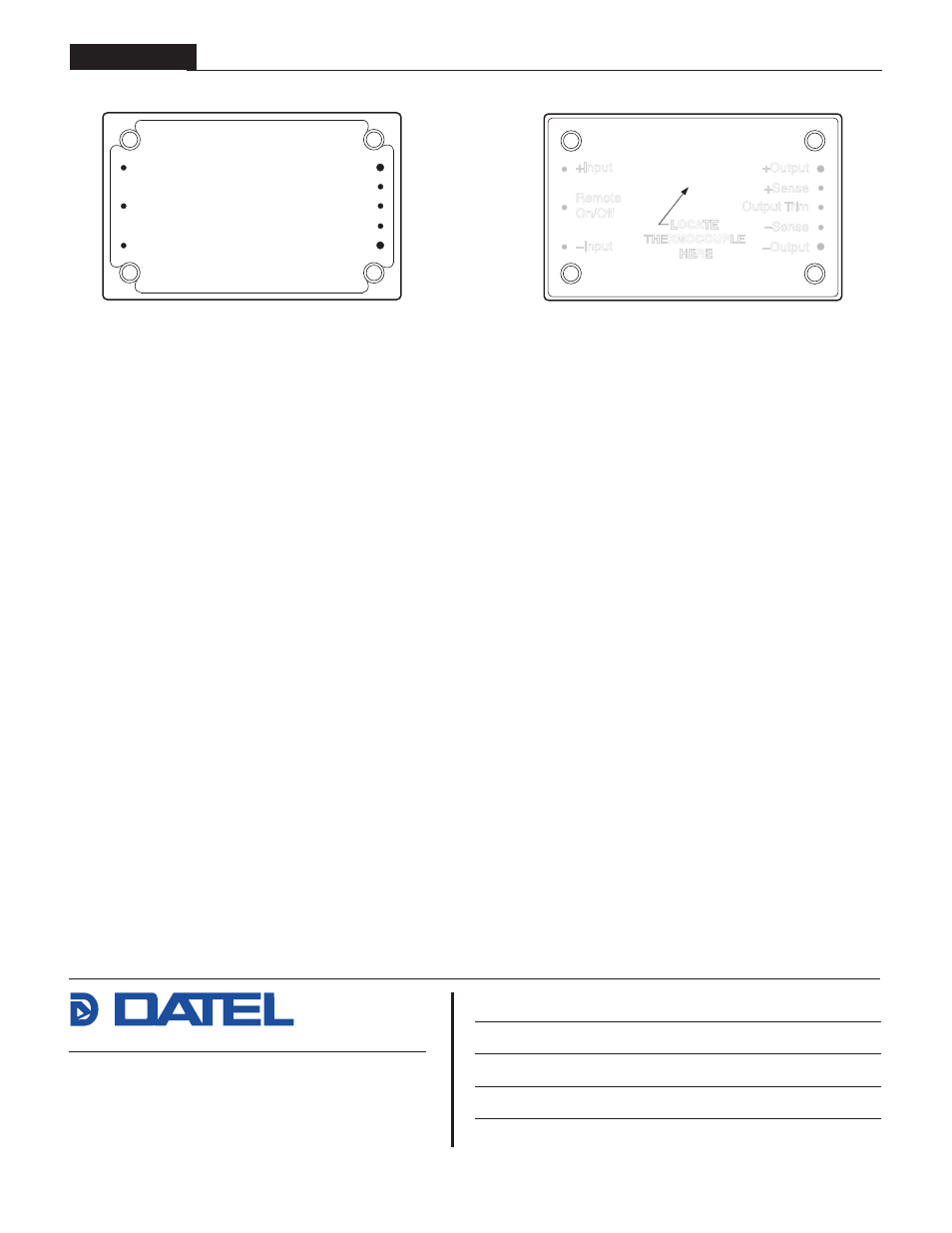

Figure 20. Industry Standard Quarter-Brick Pinout
Figure 20 readily allows users to confirm that DATEL quarter-brick DC/DC
converters are compatible to the industry-standard pinout, independent of
pin-numbering conventions. The typical derating curves on the previous pages were developed by moni-
toring the temperature of the case with a thermocouple placed on top of
the USQ case as shown in Figure 21. Users desiring to model their own
application's temperature derating for a particular environment (enclosed
area, orientation, airflow, possible heatsinking) should make sure the case
temperature does not exceed 110°C for any condition.
TOP VIEW
LOCATE
THERMOCOUPLE
HERE
X
+Input
Remote
On/Off
–Input –Output
–Sense
Output Trim
+Sense
+Output
Figure 21. Thermocouple Placement for Temperature Derating Calculations
22
