Royer Labs R-122V - Manual (Page 16)

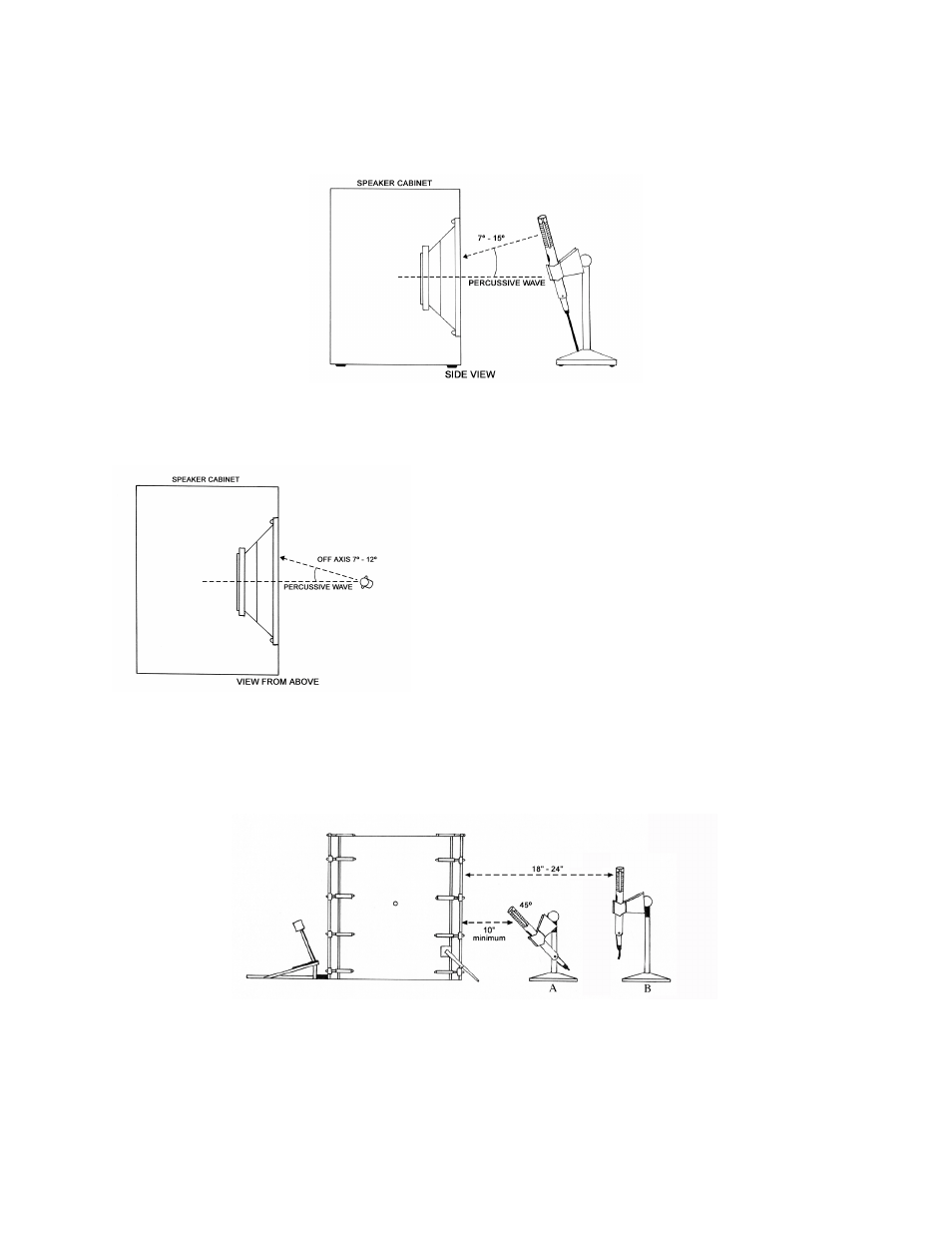

1. Example of the Vertical Positioning Technique
Slight off-axis positioning will minimize stressing the ribbon on loud sound sources
2. Example of Horizontal PositionTechnique
Angling the microphone slightly will minimize
stressing the ribbon. Due to the microphone’s pick-up
pattern, sound will not be affected
3. Side View of Kick Drum miking Technique
A) Close miking - angle mic so that pressure wave iss off-axis
B) Standard miking position
16
