6
CH. A (MONO) IN jacks
This XLR and ¼" mono jack provide inputs to the left channel of the HUSH Pro. Use
either the XLR jack or the ¼" jack when connecting, but not both together. When using
only one input use the "CH. A (MONO) XLR or ¼" jack".
CH. B IN jacks
This XLR and ¼" mono jack provide inputs to the right channel of the HUSH Pro. Use
either the XLR jack or the ¼" jack when connecting, but not both together.
CH. A jacks
This XLR and ¼" mono jack provide the output from the "CH. A (MONO)" channel of the
HUSH Pro.
CH. B jacks
This XLR and ¼" mono jack provide the output from the "CH. B" channel of the HUSH
Pro.
Note: When "CH. A" is used as a single signal source, the signal will be
present in both the "CH. A" and "CH. B" outputs.
POWER jack
This 2.5mm pin jack accepts power from the 9VAC adapter supplied with the HUSH Pro.

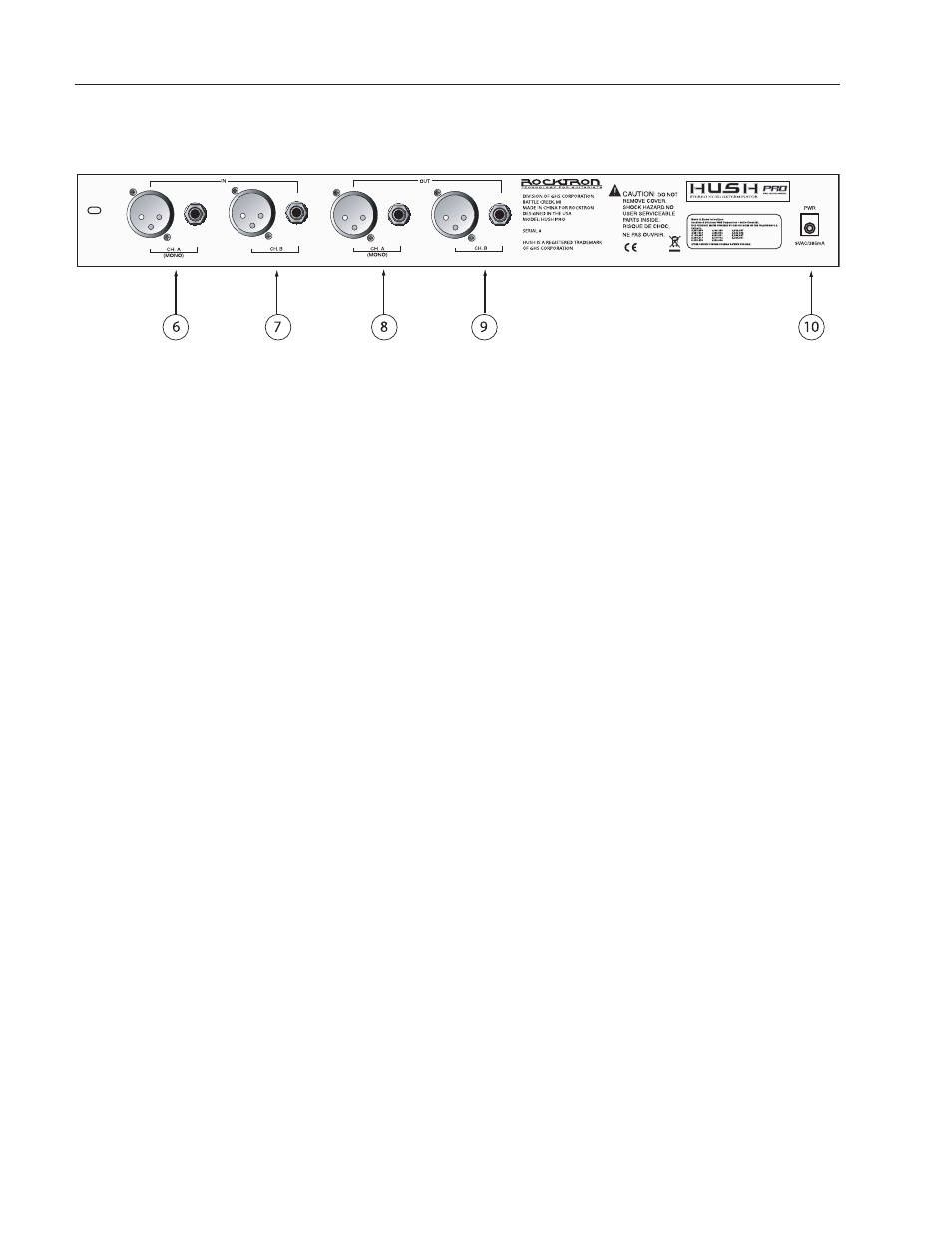

Rear Panel
6
7
8
9
10
