8
Bank no. 7-Segment BANK LED indication
PC port LEDs Online : Blue LED on indicating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Channel button Press to select channel from 01 to 32
Bank button Select the bank from 1 to 8

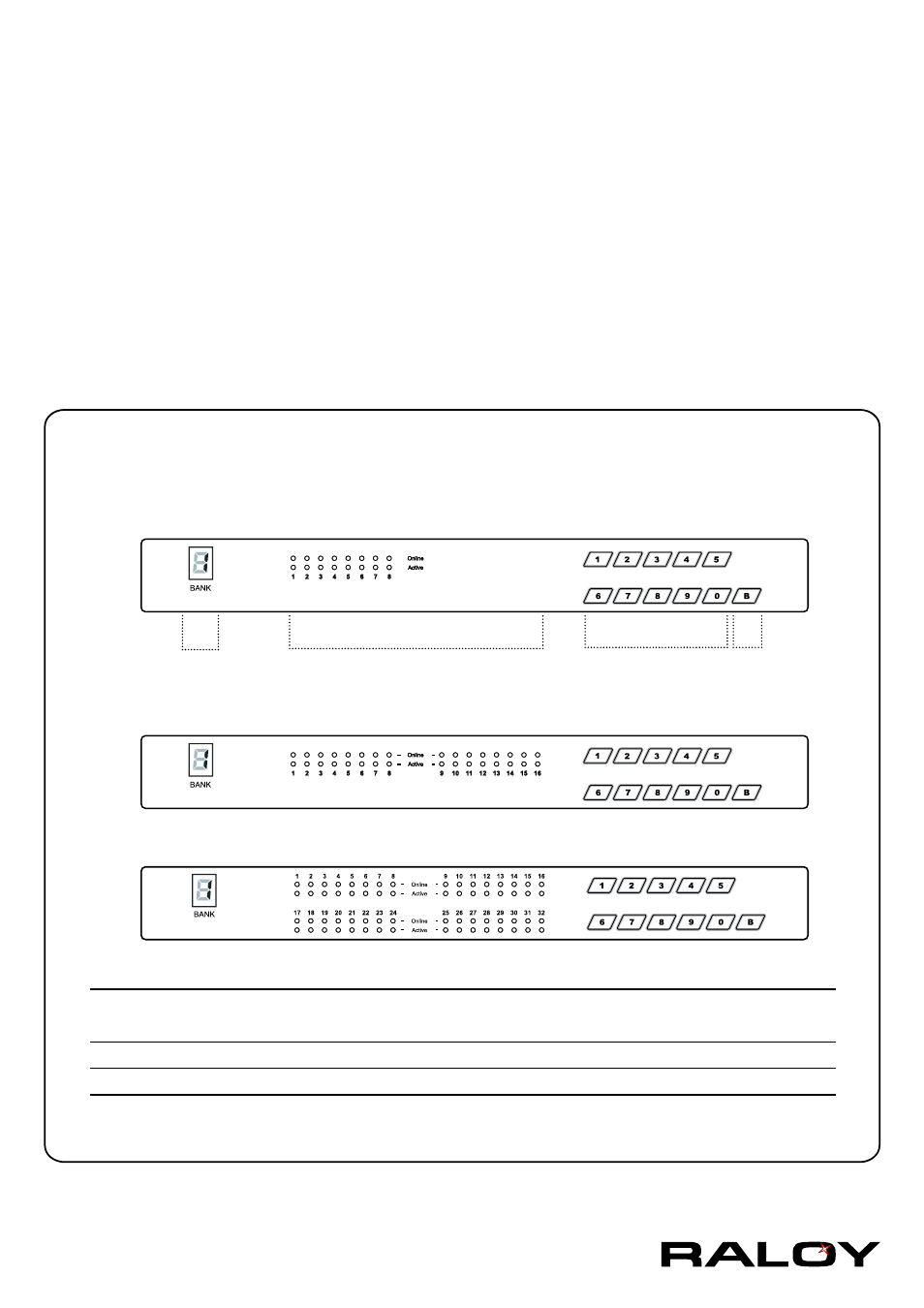

Front Panel - Port LED Indications
Bank no. PC port LEDs Channel
button
8 ports
16 ports
Bank
button
32 ports
Power ON
■ Turn off all servers and KVM switches
■ Make sure all cables / connectors are properly connected
■ Power ON sequence
1. Turn on Rack Monitor (if applicable)
2. Turn on KVM switch
3. Turn on Servers
3 Operation
3-1 KVM Button
